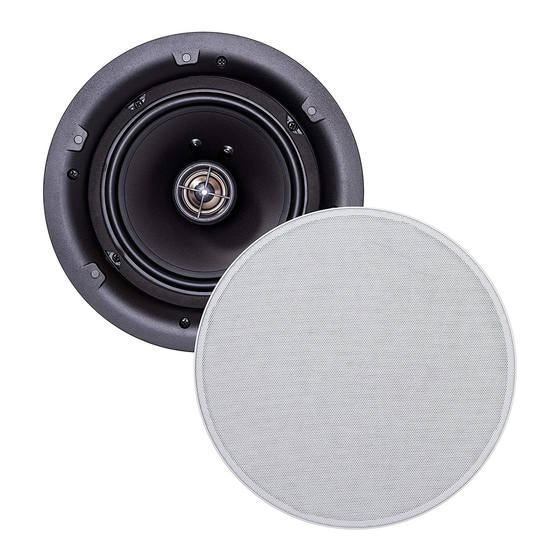

C165 Ceiling Speaker
Manual Generated: 16/04/2023 - 00:19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C165 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cambridge Audio C165

Summary of Contents for Cambridge Audio C165

  • Page 1 C165 Ceiling Speaker Manual Generated: 16/04/2023 - 00:19...

  • Page 2: Table Of Contents

    目录 C165 Ceiling Speaker ..........................................Introduction ............................................... What's included with the C165? ........................................ Installation Instructions ..........................................Painting the speaker grille and frame ...................................... Technical specifications ..........................................

  • Page 3: C165 Ceiling Speaker

    C165 Ceiling Speaker Last updated: 十二月 6, 2022 03:53. Revision #8135 Users Manual...

  • Page 4: Introduction

    This guide is designed to make installing and using this product as easy as possible. Information in this document has been carefully checked for accuracy at the time of printing; however, Cambridge Audio’s policy is one of continuous improvement, therefore design and specifications are subject to change without prior notice.

  • Page 5: What's Included With The C165

    What's included with the C165? Last updated: 一月 19, 2023 01:55. Revision #8402 1. 1 x C165 Ceiling Speaker.

  • Page 6: Installation Instructions

    Installation Instructions Last updated: 一月 19, 2023 01:55. Revision #8403 1. Firstly, remove the cardboard pad from inside the supplied template to mark the position for the mounting hole at the selected location. 2. Before cutting ceiling speaker holes, it is suggested that the area is tested for clearance by making an L-shaped probe from strong wire (see illustration below), drilling a small hole in the target area, inserting the probe and slowly turning.
  • Page 7 7. Ensure that the four fixing screws on the speaker are slackened off allowing the mounting dog-legs to move freely. Move each dog-leg foot to the LEFT into its holding slot and then line the speaker up in the mounting hole. 8.

  • Page 8: Painting The Speaker Grille And Frame

    Painting the speaker grille and frame Last updated: 一月 19, 2023 01:55. Revision #8404 The C165 speaker grille is attached by a magnet, allowing it to be easily removed for painting. 1. Carefully remove the grille ensuring not to damage the speaker cone.

  • Page 9: Technical Specifications

    Technical specifications Last updated: 一月 19, 2023 01:55. Revision #8405 Sensitivity (SPL) 90dB (2.83 Vrms input) Frequency Response 50Hz - 20kHz Impedance 4 Ohms Drivers 1 x 6.5” (165mm) woofer. 1 x 1” (25mm) tweeter. Speaker Dimensions (H x W x D) 97 x ø...
