- Page 1 SX-60 Standmount Speakers Manual Generated: 22/11/2023 - 16:58...
-
Page 2: Table Of Contents
Table of Contents SX-60 Standmount Speakers ....................................Introduction ..........................................What's included with the SX-60's? ..................................Front panel ..........................................Rear panel ........................................... Installation instructions ......................................Technical Specifications ......................................Frequently asked questions ....................................Troubleshooting ........................................ -
Page 3: Sx-60 Standmount Speakers
SX-60 Standmount Speakers Last updated: December 7, 2022 01:32. Revision #9807 Users Manual... -
Page 4: Introduction
Last updated: January 19, 2023 01:56. Revision #9808 Thank you for purchasing these Cambridge Audio SX-60 stand mount loudspeakers. We hope that you enjoy many years of listening pleasure from them. Your loudspeakers can only be as good as the system it is connected to. Please do not compromise on your amplifier or cabling. Naturally we particularly recommend amplification from the Cambridge Audio range, which has been designed to the same exacting standards as our... -
Page 5: What's Included With The Sx-60'S
What's included with the SX-60's? Last updated: January 19, 2023 01:56. Revision #9809 1. 2 x SX-60 speakers. 2. Installation guide. 3. 8 x rubber pads. 4. 2 x foam bungs. -

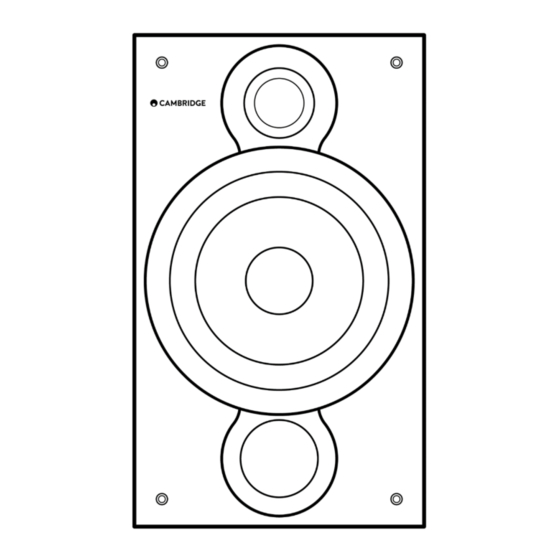

Page 6: Front Panel
Front panel Last updated: January 19, 2023 01:57. Revision #9810 1. 1” (25mm) Silk Dome Tweeter. 2. 6.5 ”(165mm) Doped Paper Cone Bass/Mid Driver. 3. Front Bass Port. -
Page 7: Rear Panel
Rear panel Last updated: January 19, 2023 01:57. Revision #9811 1. +/- Speaker Connection Terminals. -
Page 8: Installation Instructions
Installation instructions Last updated: January 19, 2023 01:57. Revision #9812 1. Firstly, using high quality speaker cable connect the SX-60 standmount speakers to the speaker terminals on your amplifier. Ensure that you pay close attention to match the polarity of each connection. 2. - Page 9 4. Finally, when positioning, we would suggest that the distance between speakers and the listening position is equal. However, we would encourage experimentation until you find a solution that works for your space.
-
Page 10: Technical Specifications
Technical Specifications Last updated: January 19, 2023 01:57. Revision #9813 Sensitivity (SPL) 89dB Frequency Response 41Hz - 22kHz Impedance 8 Ohms Drivers 1 x 6.5” (165mm) doped paper cone. 1 x 1” (25mm) tweeter. Crossover 2 Way Recommended Amplifier Power 20 - 100 Watts Porting 1 Front... -
Page 11: Frequently Asked Questions
Frequently asked questions Last updated: January 19, 2023 01:57. Revision #9814 What is meant by speaker sensitivity? Speaker sensitivity is the level produced by the speaker at one meter, when supplied with one watt of power from an amplifier. It’s a way of describing how well the speaker produces acoustic energy, based on a given input. -
Page 12: Troubleshooting
Troubleshooting Last updated: January 19, 2023 01:57. Revision #9815 No sound through one or both channels. • Check that the amplifier is turned on. • Ensure that the correct input source is selected on the amplifier. • Confirm that all connections between the amplifier and loudspeakers are secure. •...
