- Page 1 Minx S212 Speaker Bundle Manual Generated: 20/11/2023 - 18:12...
-
Page 2: Table Of Contents
Table of Contents Minx S212 Speaker Bundle ...................................... Introduction ..........................................What's included with the Minx S212 bundle? ............................... Minx MIN12 front and rear ....................................... Minx X201 front and rear ......................................Minx MIN12 installation ......................................Minx X201 unboxing and installation ................................... Technical specifications ...................................... -
Page 3: Minx S212 Speaker Bundle
Minx S212 Speaker Bundle Last updated: February 7, 2023 04:00. Revision #10819 Users Manual... -
Page 4: Introduction
Last updated: February 2, 2023 04:44. Revision #10828 Thank you for purchasing this Cambridge Audio Minx Minx S212 loudspeaker bundle. We hope that you enjoy many years of listening pleasure from it. Your loudspeakers can only be as good as the system it is connected to. Please do not compromise on your amplifier. Naturally we particularly recommend amplification from the Cambridge Audio range, which has been designed to the same exacting standards as our loudspeakers. -
Page 5: What's Included With The Minx S212 Bundle

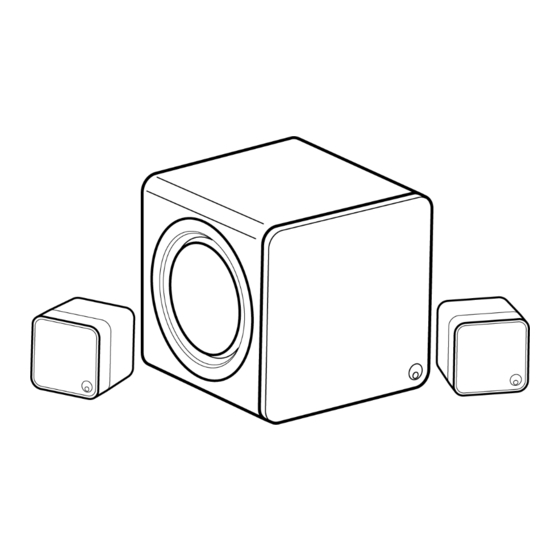

What's included with the Minx S212 bundle? Last updated: February 9, 2023 08:34. Revision #10827 1. 2 x Minx MIN12 compact speaker. 2. Minx X201 subwoofer. 3. Safety guide. 4. Quick start guide. 5. 10m speaker wire. 6. 5m RCA subwoofer lead. -
Page 6: Minx Min12 Front And Rear
Minx MIN12 front and rear Last updated: February 2, 2023 04:44. Revision #10826 Front. 1. 2.25" BMR Driver. Rear panel. 1. Mounting Screw Thread. 2. +/- Speaker Connection Terminals. -
Page 7: Minx X201 Front And Rear
Minx X201 front and rear Last updated: February 2, 2023 04:44. Revision #10825 Front. 1. 6.5" Subwoofer. Rear Panel. 1. AC power socket. 2. Mains power switch – Switch the subwoofer between on and off. 3. Standby switch - Switch between ‘Force On’ (no standby), and ‘Audio Detect’. In audio detect mode the X201 will switch on when it detects an incoming signal. - Page 8 4. Crossover frequency control - Adjust the crossover frequency of the subwoofer. 5. Phase control - Adjust the phase settings of the subwoofer. 6. Volume control - Adjust the volume of the subwoofer. 7. Audio in/out.
-
Page 9: Minx Min12 Installation
Minx MIN12 installation Last updated: February 2, 2023 04:44. Revision #10823 1. Firstly, ensuring to match the polarity/colour coding, connect the supplied speaker terminals to the speaker outputs of your amplifier by unscrewing the ends, and securing the speaker cable in the available hole on each terminal. These terminals can then be installed into the rear of the MIN12 with the cables connected. -
Page 10: Minx X201 Unboxing And Installation
Minx X201 unboxing and installation Last updated: February 2, 2023 04:45. Revision #10822 Unboxing your Minx X201 subwoofer. Follow the diagram and take care when unboxing your Minx X201 so not to damage the speaker cone. Installation of your Minx X201. Dependent on your desired setup, there are a few different ways to connect your Minx X201 subwoofer. - Page 11 3. Once connected you can decide where to position your subwoofer. As low frequency content is largely unidirectional, you can experiment to find a place that suits your setup.
-
Page 12: Technical Specifications
Technical specifications Last updated: February 2, 2023 04:45. Revision #10821 Minx MIN12. Sensitivity (SPL) 86dB Frequency Response 150Hz - 20kHz Impedance 8 Ohms Drivers 1 x 2.25" BMR Driver Recommended Amplifier Power 25 - 200 Watts Speaker Dimensions (H x W x D) 78 x 78 x 85mm. -
Page 13: Frequently Asked Questions
Frequently asked questions Last updated: February 2, 2023 04:45. Revision #10820 What is meant by speaker sensitivity? Speaker sensitivity is the level produced by the speaker at one meter, when supplied with one watt of power from an amplifier. It’s a way of describing how well the speaker produces acoustic energy, based on a given input. -
Page 14: Troubleshooting
Troubleshooting Last updated: February 2, 2023 04:45. Revision #10829 No sound through one or both channels. • Check that the amplifier is turned on. • Ensure that the correct input source is selected on the amplifier. • Confirm that all connections between the amplifier and loudspeakers are secure. •...
