- Page 1 SX-70 Centre Speaker Manual Generated: 22/11/2023 - 18:10...
-
Page 2: Table Of Contents
Table of Contents SX-70 Centre Speaker ....................................... Introduction ..........................................What's included with the SX-70? .................................... Front panel ..........................................Rear panel ........................................... Installation instructions ......................................Technical specifications ......................................Frequently asked questions ....................................Troubleshooting ........................................ -
Page 3: Sx-70 Centre Speaker
SX-70 Centre Speaker Last updated: December 8, 2022 09:01. Revision #9919 Users Manual... -
Page 4: Introduction
Last updated: January 19, 2023 01:57. Revision #9920 Thank you for purchasing this Cambridge Audio SX-70 centre speaker. We hope that you enjoy many years of listening pleasure from it. Your loudspeakers can only be as good as the system it is connected to. Please do not compromise on your amplifier or cabling. Naturally we particularly recommend amplification from the Cambridge Audio range, which has been designed to the same exacting standards as our loudspeakers. -
Page 5: What's Included With The Sx-70? Front Panel

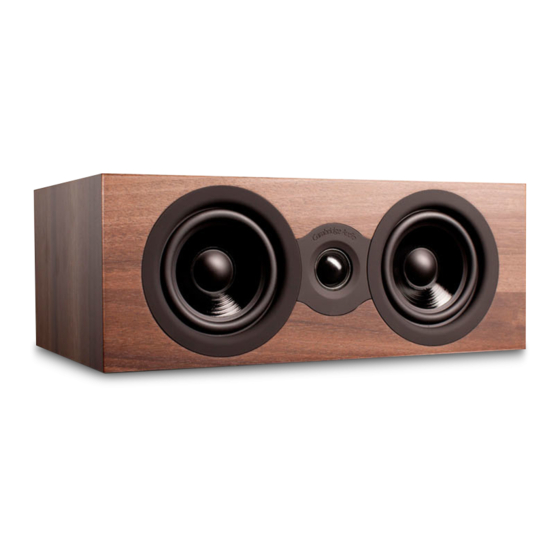

What's included with the SX-70? Last updated: January 19, 2023 01:57. Revision #9921 1. 1 x SX-70 Centre Speaker. 2. Installation guide. 3. 4 x rubber pads. - Page 6 Front panel Last updated: January 19, 2023 01:57. Revision #9922 1. 1" (25mm) Silk Dome Tweeter. 2. 2 x 4" (100mm) Woofer.
-
Page 7: Rear Panel
Rear panel Last updated: January 19, 2023 01:57. Revision #9923 1. +/- Speaker Connection Terminals. -
Page 8: Installation Instructions
Installation instructions Last updated: January 19, 2023 01:57. Revision #9924 1. Firstly, using high quality speaker cable connect the SX-70 centre speaker to the speaker terminals on your amplifier. Ensure that you pay close attention to match the polarity of each connection. 2. -
Page 10: Technical Specifications
Technical specifications Last updated: January 19, 2023 01:57. Revision #9925 Sensitivity (SPL) 85dB Frequency Response 65Hz - 20kHz Impedance 8 Ohms Drivers 2 x 4” (100mm) woofers. 1 x 1” (25mm) silk dome tweeter. Recommended Amplifier Power 10 - 100 Watts Porting 1 Rear Speaker Dimensions (H x W x D) -
Page 11: Frequently Asked Questions
Frequently asked questions Last updated: January 19, 2023 01:58. Revision #9926 What is meant by speaker sensitivity? Speaker sensitivity is the level produced by the speaker at one meter, when supplied with one watt of power from an amplifier. It’s a way of describing how well the speaker produces acoustic energy, based on a given input. -
Page 12: Troubleshooting
Troubleshooting Last updated: January 19, 2023 01:58. Revision #9927 No sound through one or both channels. • Check that the amplifier is turned on. • Ensure that the correct input source is selected on the amplifier. • Confirm that all connections between the amplifier and loudspeakers are secure. •...
