284818-BIM-C-1008
When fastening ductwork to side duct flanges
on unit, insert screws through duct flanges
only. DO NOT insert screws through casing.
Outdoor ductwork must be insulated and
waterproofed.
Refer to Figures 13 and 14 for information concerning
side and bottom supply and return air duct opening
dimensions.
It is recommended that, in Canada, the outlet
NOTE:
duct be provided with a removable access
panel. It is recommended that this opening be
accessible when the unit is installed in service,
and of a size such that smoke or reflected light
may be observed inside the casing to indicate
the presence of leaks in the heat exchanger.
The cover should be attached in a manner
adequate to prevent leakage.

FIXED OUTDOOR AIR INTAKE DAMPER

This damper is shipped inside the return air compart-
ment. It is completely assembled and ready for installa-
tion. A damper baffle inside of the hood is adjustable to
provide variable amounts of outdoor air intake on units
that are not provided with an economizer or a motor-
ized damper option. Refer to the Fixed Outdoor
Damper Figure 3.
Gasketing and mounting screws are provided in a parts
bag attached to the hood assembly. Apply gasketing to
the three flange surfaces on the hood prior to installing
the hood. Extend gasketing 1/4 inch beyond the top
and bottom of the two side flanges to insure adequate
sealing.
Adjusting the damper to the desired air flow may be
done before mounting the hood into position or after
installation by removing the front hood panel or the
screen on the bottom of the hood. Damper baffle in
position 1 will allow approximately 10% outdoor air
flow, position 2 approximately 15% and, to allow
approximately 25%, remove the damper baffle.
On units with bottom return air application install the
damper assembly over the opening in the side return
air access panel. Remove and discard the opening
cover and the covering over the hood mounting holes
10
(used for shipping) before installing. Secure with the
screws provided.
On units with side return air applications, install the
damper assembly on the return air ductwork as close
to the unit as possible. Cut an opening 16 inches high
by 18 inches wide in the ductwork to accommodate the
damper. Using the holes in the hood flanges as a tem-
plate, drill 9/64 inch dia. (#26 drill) holes into the duct-
work and secure with the screws provided.
If outdoor air intake will not be required on
units with bottom return air applications, the
damper assembly should still be mounted on
the side return air access panel, per the
instructions above, to insure moisture is not
drawn into the unit during operation. The cov-
ering over the mounting holes only need be
removed. Do not remove the opening cover.

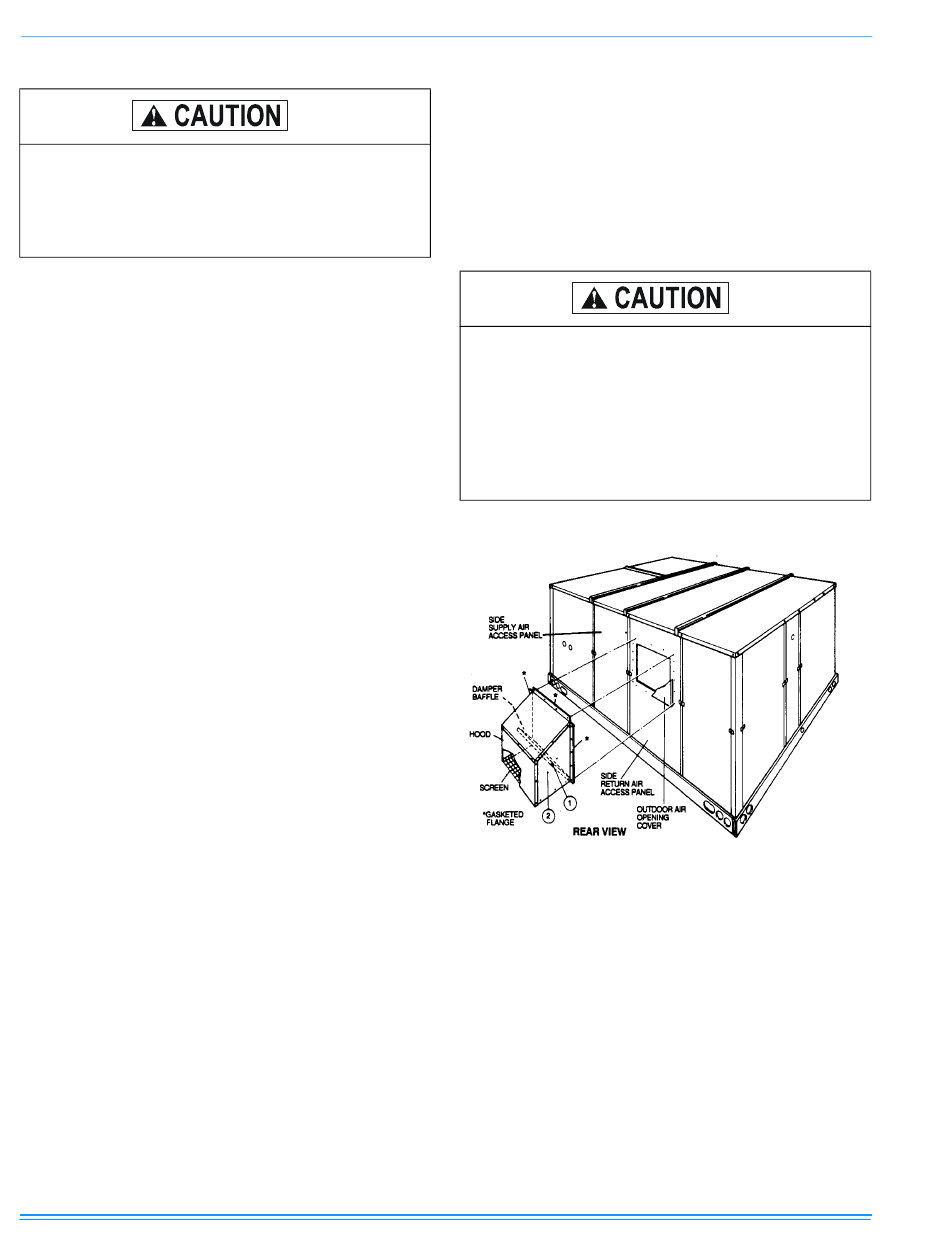

FIGURE 3 - FIXED OUTDOOR AIR DAMPER

CONDENSATE DRAIN

Plumbing must conform to local codes. Use a sealing
compound on male pipe threads. Install a condensate
drain line from the one-inch NPT female connection on
the unit to an open drain.
The condensate drain operates in a negative
NOTE:
pressure in the cabinet. The condensate drain
line MUST be trapped to provide proper drain-
age. See Figure 4.
Johnson Controls Unitary Products
