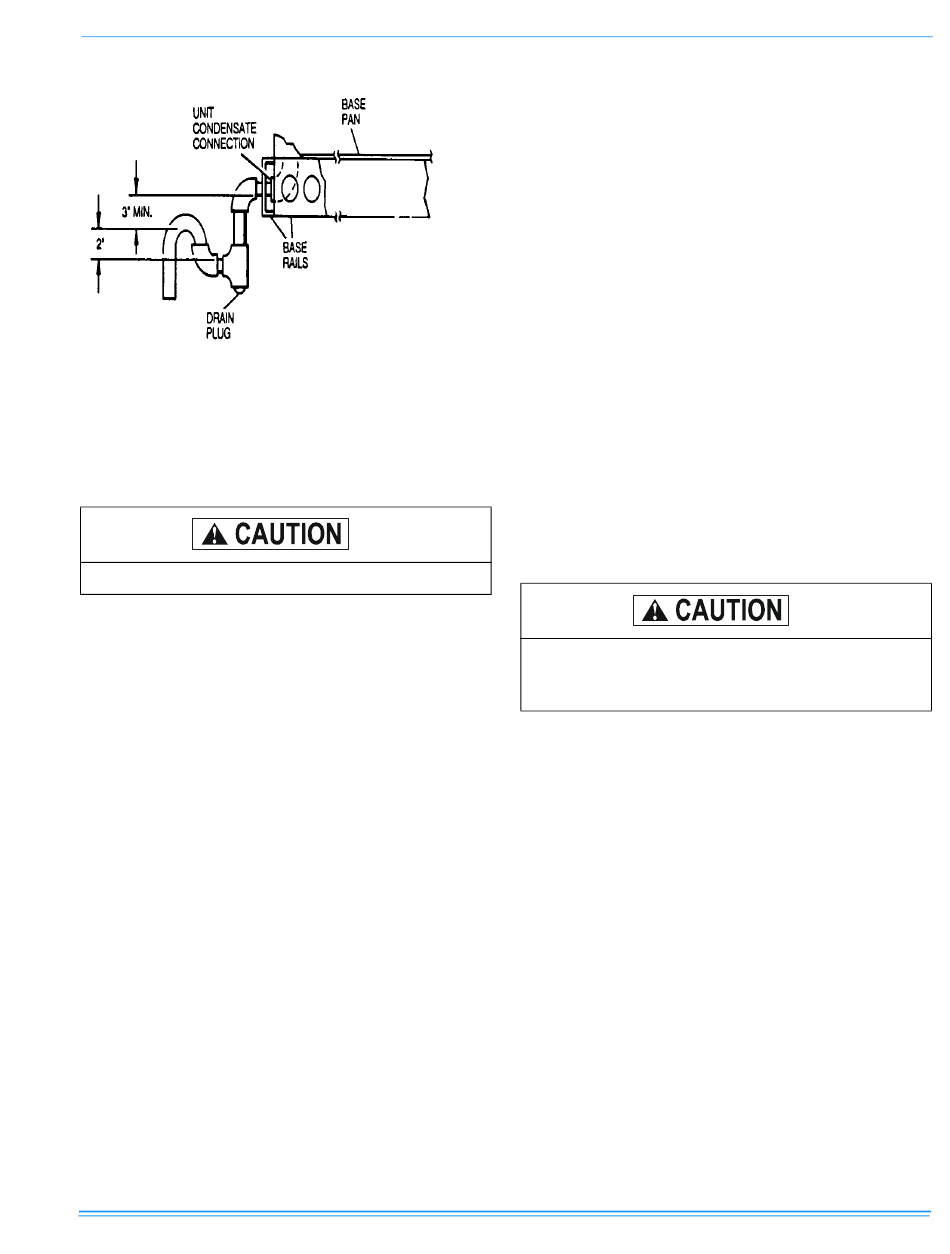

FIGURE 4 - RECOMMENDED DRAIN PIPING

COMPRESSORS

Units are shipped with compressor mountings factory-
adjusted and ready for operation.
Do not loosen compressor mounting bolts.

FILTERS

Two-inch filters are supplied with each unit, but units
can be converted easily to four-inch filters. Filters must
always be installed ahead of the evaporator coil and
Johnson Controls Unitary Products
must be kept clean or replaced with same size and
type. Dirty filters will reduce the capacity of the unit and
will result in frosted coils or safety shutdown. Minimum
filter area and required sizes are shown in Physical
Data Table 7.

SERVICE ACCESS

The following removable panels provide access to all
serviceable components:
• Compressor compartment
• Electric Heat compartment
• Gas Heat compartment (Two panels)
• Side Supply & Return Air compartments (Two pan-
els)
• Blower compartment (Three panels)
• Main control box
• Filter compartment
• Outdoor Air compartment (Two panels)
Refer to Figures 13 and 14 for location of these access
panels.
Make sure that all screws and panel latches
are replaced and properly positioned on the
unit to maintain an airtight seal.
284818-BIM-C-1008
11
