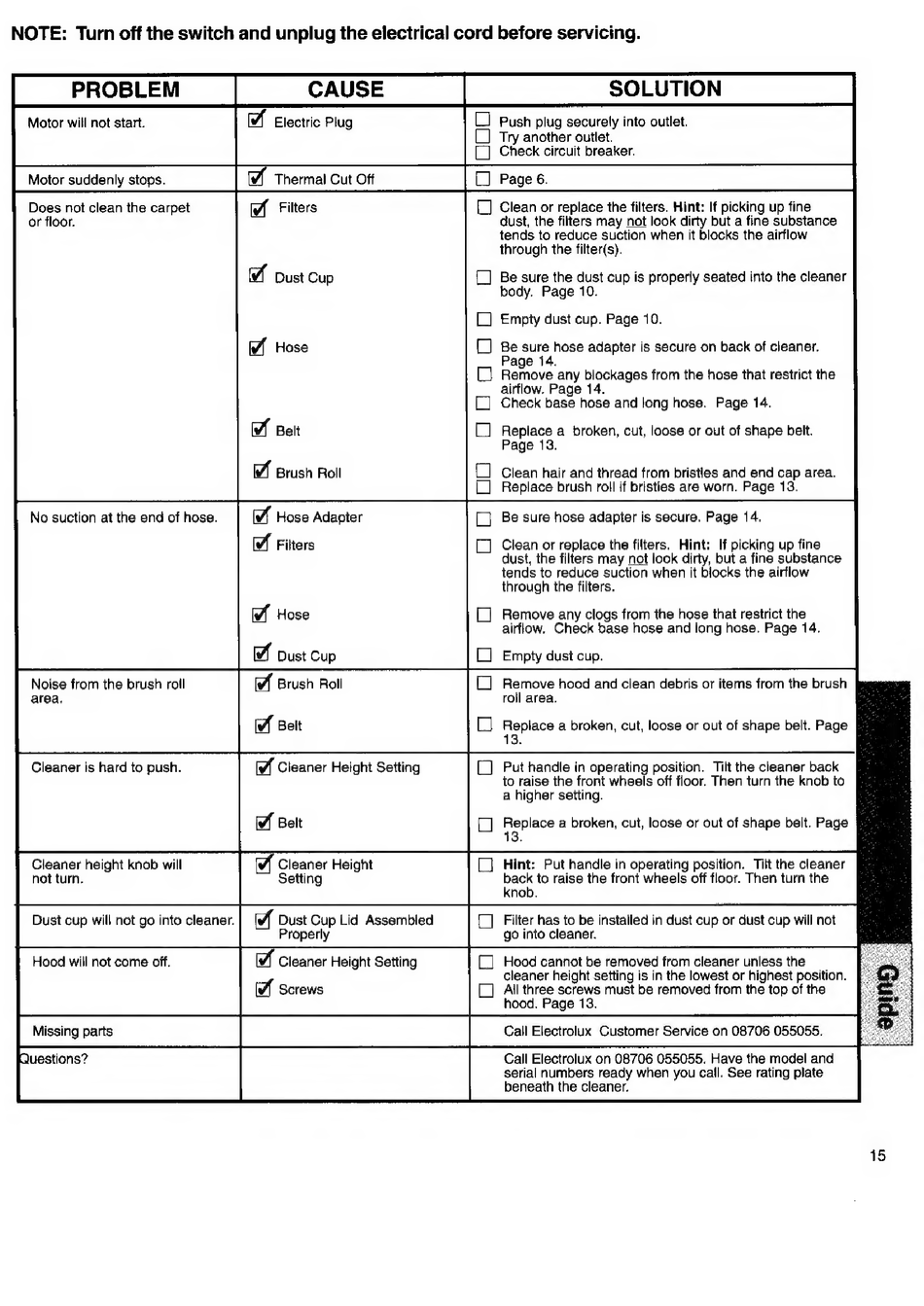

NOTE: Turn off the switch and unplug the electrical cord before servicing.
PROBLEM
CAUSE
SOLUTION
Motor will not start.
raf Electric Plug
Push plug securely into outlet.
Try another outlet.
Check circuit breaker.
Does not clean the carpet
or floor.
No suction at the end of hose.
Noise from the brush roll
area.
Cleaner is hard to push.
Cleaner height knob will
not turn.
[A filters
vf Dust Cup
ah Hose
a Belt
ral Brush Roll
af Hose Adapter
raf Filters
raf Hose
af Dust Cup
[Mf Brush Roll
[A Belt
raf Cleaner Height Setting
wo Belt
(vf Cleaner Height
Setting
Clean or replace the filters. Hint: If picking up fine
dust, the filters may not look dirty but a fine substance
tends to reduce suction when it blocks the airflow
through the filter(s).
Be sure the dust cup is properly seated into the cleaner
body. Page 10.
Empty dust cup. Page 10.
Be sure hose adapter is secure on back of cleaner.
Page 14.
Remove any blockages from the hose that restrict the
airflow. Page 14.
Check base hose and long hose. Page 14.
Replace a broken, cut, loose or out of shape belt.
Page 13.
Clean hair and thread from bristles and end cap area.
Replace brush roll if bristles are worn. Page 13.
Be sure hose adapter is secure. Page 14.
Clean or replace the filters. Hint: If picking up fine
dust, the filters may not look dirty, but a fine substance
tends to reduce suction when it blocks the airflow
through the filters.
[1]
Remove any clogs from the hose that restrict the
airflow. Check base hose and long hose. Page 14.
Empty dust cup.
Remove hood and clean debris or items from the brush
roll area.
Replace a broken, cut, loose or out of shape belt. Page
13.
Put handle in operating position. Tilt the cleaner back
to raise the front wheels off floor. Then turn the knob to
a higher setting.
Replace a broken, cut, loose or out of shape belt. Page
13.
Hint: Put handle in operating position. Tilt the cleaner
back to raise the front wheels off floor. Then turn the
knob.
Dust cup will not go into cleaner.
(Wf Dust Cup Lid Assembled
Filter has to be installed in dust cup or dust cup will not
Properly
go into cleaner.
Hood will not come off.
Missing parts
Questions?
Taf Cleaner Height Setting
(Wf Screws
Hood cannot be removed from cleaner unless the
cleaner height setting is in the lowest or highest position.
All three screws must be removed from the top of the
hood. Page 13.
Call Electrolux Customer Service on 08706 055055.
:
Call Electrolux on 08706 055055. Have the model and
serial numbers ready when you call. See rating plate
beneath the cleaner.
