Instructions for use

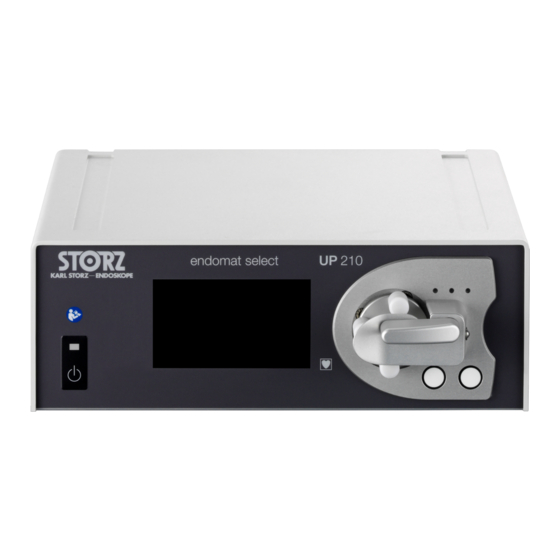

ENDOMAT SELECT UP210

Advertisement

Table of Contents
loading

Related Manuals for Storz ENDOMAT SELECT UP210

Summary of Contents for Storz ENDOMAT SELECT UP210

  • Page 1 Instructions for use ENDOMAT SELECT UP210...
  • Page 2 03-2021 Copyright © All product illustrations, product descriptions, and texts are the intellectual property of KARL STORZ SE & Co. KG. Their use and reproduction by third parties require the express approval of KARL STORZ SE & Co. KG. All rights reserved.

  • Page 3: Table Of Contents

    4.9.2 Application area...........................  24 4.9.3 Combination with non-medical products .................. 25 4.9.4 Multiple socket outlets.........................  25 4.9.5 Permissible system load...................... 25 4.9.6 Reprocessing.......................... 25 4.9.7 Maintenance .......................... 25 5 Preparation.............................. 27 Unpacking the product ........................... 27 Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 4 7.3.3 Functional test .......................... 59 Repairing the product .......................... 59 Disposing of the product ........................ 59 8 Accessories and spare parts ........................ 61 Accessories............................. 61 9 Electromagnetic compatibility........................ 63 General notes on the operating environment .................. 63 Accessories and lines .......................... 63 Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 5 Table 5 – Recommended separation distances between portable and mobile HF communications devices and the product ......................... 67 10 Faults and messages .......................... 69 10.1 Troubleshooting ............................ 69 10.2 Software messages .......................... 69 11 Overview of risks and warnings ........................ 75 11.1 Warnings .............................. 75 12 Subsidiaries.............................. 76 Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 6: General Information

    Designates a possible imminent risk. If this is not avoided, it could lead to minor injuries.   NOTICE   ATTENTION Designates a possibly harmful situation. If this is not avoided, the products could be damaged. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 7: Abbreviations

    Endoscopic retrograde cholangiopancreatography Flow-controlled Gynecology Hysteroscopy Intrauterine BIGATTI Shaver Laparoscopy Medical Device Regulation (European Union) NEURO Neurosurgery Pressure-controlled Percutaneous nephroscopy Proctology Resection SPINE Vertebral column SURG Surgery THOR Thoracoscopy Urology Ureterorenoscopy Veterinary medicine Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 8: Normal Use

    The device must not be used for the following treatments: – Applications that require a non-pulsatile flow – Administration of medication – Thorax drainage – Magnetic resonance tomography Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 9: Target User Populations

    Joints in the foot, knee, hip, shoulder, hand or finger SPINE Thoracic and lumbar vertebral column ENT/NEURO Cleaning endoscope lenses 2.7 Intended conditions of use The product may only be used in hospitals and doctors’ offices in suitable ambient conditions. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 10 Mobility Can be moved if placed on a cart. Combination Can be used on the patient at the same time as other devices. Control Can be controlled via the KARL STORZ SCB. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 11: Safety

    Dispose of disposable products properly after use. 3.6 Combination with other components Combination of the product with unsuitable instruments and devices can result in uncontrolled behavior and injury to patients, users, and third parties. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 12: Damaged Products

    All electrical installations of the operating room in which the product is connected and used must meet the applicable IEC standards. Use either the power cord supplied by KARL STORZ or a power cord which has the same properties and which bears a national mark of conformity.

  • Page 13: Electromagnetic Interference

    When using explosive narcotic gases: Operate the product outside of the hazard zone. Do not use the product in the presence of flammable anesthetics. The product must not be operated in oxygenated environments. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 14: Risks In It Networks

    The integration of the product in an IT network can interfere with the function of the product or other devices in the IT network. Do not connect the product with an IT network or other devices. Only the KARL STORZ Service may use the interfaces for USB and Ethernet.

  • Page 15: Product Description

    Required accessories for the respective software package are listed in chapter Accessories and spare parts [p. 61]. 4.2 Product overview  ENDOMAT SELECT – Front view Pump rollers TFT touch screen Light barrier Power switch Pump lever (cartridge locking lever) Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 16: Touch Screen

    SCB connectors Power cord socket Connection socket, e.g., for footswitch The KARL STORZ SCB interface, which is based on the CAN fieldbus, permits remote control of device functions and remote display of device parameters.  Tubing set for single use 4.3 Touch screen The user interface of the touchscreen is subdivided into the following areas: Instructions for use •...
  • Page 17 10% steps from 10% – 50%. Irrigation/suction display The irrigation or suction function is activated: – Actual value: white bar – Set value: orange marking and number Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 18: Symbols On The User Interface

    4.3.1 Symbols on the user interface Symbol Meaning Start/stop standby / pump activated Start/stop Suction using footswitch Alarm audio on Alarm audio paused (30 s) Call up menu Cancel Reject changes Confirm Accept changes Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 19: Possible Combinations

    Local regulations take precedence over IEC and ISO standards. If you have any questions, please contact your local KARL STORZ representative or technical customer support.

  • Page 20: Operating Modes

    4.6 Technical data Designation Value Operating voltage (AC) 100–240 V Operating frequency 50/60 Hz Power consumption 72 VA Electrical protection class Degree of protection acc. to IP 21 IEC 60259 Applied part type according to IEC 60601-1 Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 21 VET SURG – Bottle suction: 300 – 1,000 ml/min; incre- ments: 100 ml/min Operating volume 500 ml/min – 41 dBA | 1,500 ml/min – 65 dBA | 2,500 ml/min – 69 dBA | 3,500 ml/min – 71 dBA Dimensions (L x H x W) 260 x 110 x 305 mm Weight 4.7 kg Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 22: Symbols Employed

    Federal (USA) law restricts this device to sale by or on the order of a physician. CE marking With this mark, the manufacturer declares the compliance of the devices with the applicable standards and directives The device must not be modified in any way Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 23: Symbols On The Product

    Federal (USA) law restricts this device to sale by or on the order of a physician. Medical device Prevention of pollution by electronic devices Separate collection of electrical and electronic devices. Do not dispose of in household refuse. Manufacturer Date of manufacture Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 24: Ambient Conditions

    4.9.2 Application area Aside from the applied parts, no other parts of the system are suitable for use within the patient environment. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 25: Combination With Non-Medical Products

    After the initial assembly of all system components, perform a safety test according to IEC 62353. If the assembly is carried out at the factory, the protocol of the safety test is supplied. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 26 Product description Have the safety check carried out and recorded yearly by an electrician; see chapter Safety inspection in accordance with IEC 62353 [p. 59]. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 27: Preparation

    This product and the connected accessories may only be used in medical rooms with electrical installations conforming to the applicable national regulations. 5.3 Connecting the product Connect the potential equipotential cable. Connect the power cord. Push the mains plug fully into the power socket. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 28: Test The Product

    CALCUSON or UNIDRIVE S III. Connect the SCB cable. Connect the other end of the SCB cable to a KARL STORZ control device or other SCB devices; see the instructions for use of the KARL STORZ SCB control NEO system. To remove the SCB cable, be sure to pull on the plug. The SCB cable is equipped with a guard to prevent it from being pulled out accidentally.

  • Page 29: Putting The Product Into Operation

    ð After confirmation, a ready signal sounds, see chapter Availability signal [p. 57]. WARNING! Risk of injury! Only use the device if the ready signal was audible. ð The selection of disciplines appears: Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 30: Selecting Discipline And Procedure

    Start the product; see chapter Putting the product into operation [p. 29]. ð The screen for selecting the discipline appears:  Human medicine  Veterinary medicine Select the discipline. ð The screen for selecting the procedure appears: Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 31: Installing The Tubing Set

    Inspect the product for visible contamination before use. Reprocess the product before initial use and before and after all subsequent applications. Use validated methods. Do not use contaminated products. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 32 Install the tubing set. Make sure that the pump tubing is not crushed. ð If the tubing set and procedure match, the last selected procedure appears, e.g.: ð If the tubing set and the procedure do not match, an error message appears: Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 33 [p. 30]. Turn the pump lever of the tubing set counter clockwise. Connect the tubing ends with the irrigation bag (puncture needle) or with the irrigation connector on the instrument (LUER-Lock). Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 34: Combined Operation With Calcuson (Art. No. 27610020)

     ENDOMAT SELECT and CALCUSON Observe the instructions for use of the CALCUSON. Observe chapter System description [p. 24]. Observe the package insert of the tubing set (art. no. 97000138). Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 35: Install The Bottle Holder

    Mark the surface of the suspension on the right side of the product (as seen from the front) with a pencil. Maintain a distance of 2 cm from the side rail. Apply the adhesion promoter thinly and evenly to the marked area. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 36 Allow the adhesive to dry sufficiently, as the adhesive develops its full bond strength only after several hours. 10. Hang the bottle holder in the suspension. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 37: Putting The Calcuson Into Operation

    ENDOMAT SELECT. Actuate the second position of the footswitch to activate the CALCUSON. ð The green pilot lamp (1) lights up when ultrasonic energy is emitted. The function is being performed correctly. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 38: Combined Operation With Unidrive S Iii (Art. No. 20701020-1)

    ENDOMAT SELECT. Connect ENDOMAT SELECT and UNIDRIVE S III to the optional control cable (art. no. 20701070). ð The ENDOMAT SELECT can only be controlled with the footswitch of the UNIDRIVE S III. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 39: Putting Unidrive S Iii Arthro Into Operation

    Activate the shaver on the handpiece. ð The ENDOMAT SELECT increases the intracavity pressure via the "boost" function. The pressure increase compensates for the loss of fluid caused by the suction connected to the shaver. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 40: Connecting The Tubing Set For Indirect Suction

    Place the suction bottle in the bottle stand on the product; see chapter Install the bottle holder [p. 35]. Install the tubing set; see chapter Installing the tubing set [p. 31]. Attach the inflow tube (3) of the tubing set to the suction bottle connection with wire tray. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 41 If there is a height gradient between the patient and the suction bottle, the suction bottle may run full. Therefore, the suction bottle must be placed at the height of the patient. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 42: Connect The Tubing Set For Direct Suction

    Connect the inflow tube (1) to the connector on the instrument. Connect the outflow tube (2) to the collection container. Vent the tubing system; see chapter Venting the tubing system [p. 47]. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 43: Application

    In the Menu screen, tap the Settings sub-menu. ð The Settings screen appears with the following sub-menus: 6.2.1 Setting the language In the Settings screen, tap the Language sub-menu. ð The Language screen appears. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 44: Other Settings

    ü The Advanced or VET software package is installed. In the Settings screen, tap the Other setting sub-menu. ð The Other setting screen appears. Enter the desired setting and confirm with ð The Settings screen appears. Reset settings with Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 45: Set Height Difference

    Service area. A maximum of 200 entries are displayed, and the most recent entry is in the top line on page 1. Each line contains the following event data: Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 46: Product Information

    6.4 Product information Information on the product can be queried, e.g., serial number, software version, and operating hours. In the Menu screen, tap the Device info sub-menu. ð The Device info screen appears. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 47: Services

    Have a collecting container ready to catch irrigant solution as it runs out. Tap the Start/Stop button and let the roller pump run until all of the air has been released from the tubing system. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 48: Hys/Uro/Art/Spine

    ð If the actual value of the irrigation pressure (white bar) exceeds the set value (orange marking), the roller pump stops the irrigation. 6.6.3 Suction Press the footswitch. Close the patient tubing with your finger and check whether a vacuum forms. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 49: Using Endomat Select As An Irrigation Pump

    ð The actual value (2) of the irrigation flow is displayed as a white bar. Tap the start/stop button again to deactivate the roller pump. The standard value of the pressure limit without an installed Advanced software package is 500 mmHg. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 50: Set The Irrigation Flow (Ent/Neuro)

    For all pressure-controlled procedures, the irrigation pressure can be set between 20 and 150 mmHg, except for VET ART "large animal", for which an irrigation pressure of up to 400 mmHg is possible. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 51 ð The actual value (2) of the irrigation pressure is displayed as a white bar. Tap the start/stop button or the footswitch button again to activate the roller pump. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 52: Starting And Stopping The Irrigation Process

    An activated roller pump can start at any time, and the rollers of the pump can cause crushing. Never reach into the pump. Do not wear loose clothing. Bind long hair together. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 53: Setting The Suction Flow (Ibs Shaver / Res / Hys / Art / Calcuson / Vet Surg)

    6.8.2 Starting and ending the suction Tap the footswitch button or the start/stop button (RES) to start the suction process. ð The white bar shows the actual value of the suction flow. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 54 Application Tap the footswitch button or the start/stop button again to stop the suction process. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 55: Maintenance, Servicing, Repairs, And Disposal

    The alarm is displayed with blue text on a cyan background in the title line. The alarm will overwrite any other text messages. 7.2.1.2 Acoustic alarm signal The alarm signal is a burst of 2 tones lasting for 170 ms each, with a pause of 240 ms: Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 56: Information Signals

    The minimum duration of the display is 5 s. The signals are ordered according to priority. Alarm signals have a higher priority than information signals. Information signals are divided into five different priorities. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 57 Putting the product into operation [p. 29]. The pitch of the availability signal is modulated with a frequency of 1.5 Hz by ± 2 Hz each time. There are 5 different harmonics. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 58: Checking The Excess Pressure Alarm

    Pump up the leakage tester and generate the following pressure: Uro – CYST / Gyn –HYS = 60 mmHg, SPINE – LUMBAR / ART – Knee / VET ART – small animal = 300 mmHg. ð The visual and acoustic excess pressure warning is output. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 59: Safety Inspection In Accordance With Iec 62353

    Document the results of the safety test. 7.4 Repairing the product Repair work may only be performed by KARL STORZ or by a company authorized by KARL STORZ. The interventions described in this instruction manual are exempt from this rule. Please contact your local KARL STORZ subsidiary or authorized dealer (see the list of subsidiaries).
  • Page 60 Maintenance, servicing, repairs, and disposal Contact KARL STORZ SE & Co. KG, a KARL STORZ branch or an authorized dealer to find out the address of the collection point in your area. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 61: Accessories And Spare Parts

    Tubing set, suction, DS, reusable, can be UP009 sterilized Tubing set, suction, FS, reusable, can be UP007 sterilized Tubing set, suction, PC, reusable, can be UP008 sterilized Leakage tester 13242XL Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 62 Order no. One-pedal footswitch 20014230 Recommended accessories for boost actuation Article Order no. One-pedal footswitch 20014230 Recommended accessories for Advanced package Article Order no. SCB connecting cable, length 100 cm 20090170 Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 63: Electromagnetic Compatibility

    The power supply qual- transients/bursts ity should be that of a ± 1 kV for input and ± 1 kV for input and acc. to IEC typical commercial or output lines output lines 61000-4-4 hospital environment. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 64 80 MHz 80 MHz bances, induced 1 kHz 80% AM modu- 1 kHz 80% AM modu- by radio-fre- lation lation quency fields acc. 6 V in ISM band 6 V in ISM band to IEC 61000-4-6 Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 65 – guidelines Conducted HF distur- 3 V 3 V Portable and mobile HF bances acc. to IEC communications equip- 150 kHz to 80 MHz 61000-4-6 ment should be used no closer to any part of the Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 66 If abnormal perfor- mance is observed, additional measures may be necessary, such as re-orienting or relocating the product. Over the frequency range from 150 kHz to 80 MHz, field strengths should be less than 3 V/ Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 67 Note: At 80 MHz and 800 MHz, the separation distance for the higher frequency range ap- plies. Note: These guidelines may not apply in all situations. The propagation of electromagnetic waves is affected by absorptions and reflections of buildings, objects, and people. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 68 Electromagnetic compatibility The product was tested for compatibility with HF surgical devices in accordance with IEC 60601-2-2 Appendix BB. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 69: Faults And Messages

    Remove the tubing set h ago, deviation in pressure briefly and then start the values pump again. 150: Pump stopped Communication or pressure Function of the product is in- measurement disrupted terrupted. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 70 Function of the product is in- terrupted. Re-activate the pump if the error message is automatically reset. 254: Default restored File error Information message. Work is possible. Check the time setting if necessary. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 71 FE: A touch screen activation The text message is part of lasting more than 30 seconds the calibration procedure of has been detected. the touch screen (see text message 500) and is dis- Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 72 Electronics error in the Switch the product on speedometer and off. Contact KARL STORZ Service if the error reoccurs. 0x766: Index moved Electronics error in the Switch the product on speedometer and off. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 73 Error in the monitoring system Switch the product on and off. Contact KARL STORZ Service if the error reoccurs. 0x775: PS error (H on) Error in the monitoring system Switch the product on and off. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 74 Contact KARL STORZ Service if the error reoccurs. 0x790: WD task error BE: Program crash Switch the product on and off. Contact KARL STORZ Service if the error reoccurs. Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 75: Overview Of Risks And Warnings

    WARNING No modification of this medical electrical (ME) equipment is allowed. WARNING Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...

  • Page 76: Subsidiaries

    Phone: +358 (0)96824774, Fax: +358 (0)968247755 Email: asiakaspalvelu@karlstorz.fi KARL STORZ Endoskope Greece M.E.P.E.* Patriarhou Grigoriou E’ 34, 54248 Thessaloniki, Greece Phone: +30 2310 304868, Fax: +30 2310 304862 Email: info-gr@karlstorz.com *Repair & Service Subsidiary Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 77 No. 8 Commonwealth Lane #03-02, Singapore 149555, Singapore Phone: +65 69229150, Fax: +65 69229155 KARL STORZ ENDOSKOPE – East Mediterranean and Gulf (Offshore) S.A.L. Email: infoasia@karlstorz.com Spark Tower 1st floor Charles Helou St., Horch Tabet – Sin El Fil, Beirut,...
  • Page 78 Subsidiaries Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 79 Subsidiaries Instructions for use • ENDOMAT SELECT UP210 • MQS390_EN_V1.0_03-2021_IFU_CE-MDR...
  • Page 80 KARL STORZ SE & Co. KG Dr.-Karl-Storz-Straße 34 78532 Tuttlingen Postfach 230 78503 Tuttlingen Germany Phone: +49 7461 708-0 Fax: +49 7461 708-105 E-mail: info@karlstorz.com www.karlstorz.com...
