  • Page 1 All manuals and user guides at all-guides.com DISPENSA VVS KESSEBÖHMER...

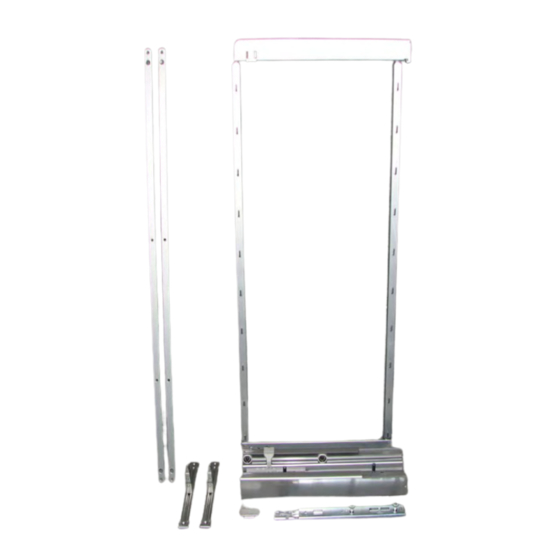

  • Page 2 All manuals and user guides at all-guides.com DISPENSA VVS Package contents ■ KESSEBÖHMER...

  • Page 3: Aligning The Unit

    All manuals and user guides at all-guides.com DISPENSA VVS 1. Screw on wall bracket 2. Align unit using spirit level Aligning the unit ■ KESSEBÖHMER...
  • Page 4 All manuals and user guides at all-guides.com DISPENSA VVS Bottom pull-out profile ■ Marking screw holes ■ KESSEBÖHMER...
  • Page 5 All manuals and user guides at all-guides.com DISPENSA VVS Top pull-out profile ■ Marking screw holes ■ KESSEBÖHMER...
  • Page 6 All manuals and user guides at all-guides.com DISPENSA VVS (top) (top) Installing the pull-out ■ profiles (top/bottom) (top) (bottom) KESSEBÖHMER...
  • Page 7 All manuals and user guides at all-guides.com DISPENSA VVS Installing the ■ bottom runner Slide in carefully KESSEBÖHMER...
  • Page 8 All manuals and user guides at all-guides.com DISPENSA VVS Mark hole positions for front fixtures Marking the front panel ■ Hole position ■ KESSEBÖHMER...
  • Page 9 All manuals and user guides at all-guides.com DISPENSA VVS 1. Screw on front fixtures Installing the front panel/ ■ support frame 2. Place support frame on front fixtures KESSEBÖHMER...
  • Page 10 All manuals and user guides at all-guides.com DISPENSA VVS Installing the front panel/ ■ support frame Fix support frame to front fixtures KESSEBÖHMER...

  • Page 11: Support Frame

    All manuals and user guides at all-guides.com DISPENSA VVS Installing the ■ support frame Note: Listen for the “click“ when installing the frame! KESSEBÖHMER...
  • Page 12 All manuals and user guides at all-guides.com DISPENSA VVS Installing the ■ support frame Note: Also push in over second roller! Check correct functioning by completely pushing in and pulling out the support frame! KESSEBÖHMER...
  • Page 13 All manuals and user guides at all-guides.com DISPENSA VVS Aligning the front ■ KESSEBÖHMER...
  • Page 14 All manuals and user guides at all-guides.com DISPENSA VVS Aligning the front: ■ Loosen, adjust, tighten fixing screw set screw KESSEBÖHMER...
  • Page 15 All manuals and user guides at all-guides.com DISPENSA VVS set screws fixing screws Aligning the front: ■ Loosen, adjust, tighten Outer = Inner = fixing screws set screws KESSEBÖHMER...
  • Page 16 All manuals and user guides at all-guides.com DISPENSA VVS Installing the Note: ■ Push damper into U-profile until it snaps in! SoftStopp damper KESSEBÖHMER...
  • Page 17 All manuals and user guides at all-guides.com DISPENSA VVS Removing the ■ SoftStopp damper Note: Push piston rod in completely to protect it against bending when prising out the damper! KESSEBÖHMER...
  • Page 18 All manuals and user guides at all-guides.com DISPENSA VVS Removing the trays, Note: ■ Unhook back first! baskets KESSEBÖHMER...
  • Page 19 All manuals and user guides at all-guides.com DISPENSA VVS Disassembling the ■ support frame and front panel KESSEBÖHMER...
  • Page 20 All manuals and user guides at all-guides.com DISPENSA VVS Disassembling ■ the bottom runner KESSEBÖHMER...
  • Page 21 All manuals and user guides at all-guides.com DISPENSA VVS Disassembling ■ SoftStopp Plus KESSEBÖHMER...
  • Page 22 All manuals and user guides at all-guides.com DISPENSA VVS Installing SoftStopp Plus ■ KESSEBÖHMER...
