DISPENSA
Pantry VVS-X
http://www.cleverstorage.com/technical-support/
fasteners are not included
use
use
8x
12x
pan head
flat head
KESSEBÖHMER
MA 403 740 0000
+
Empty weight + Load
Rev.: 003-2016-06-13
*4037400000*

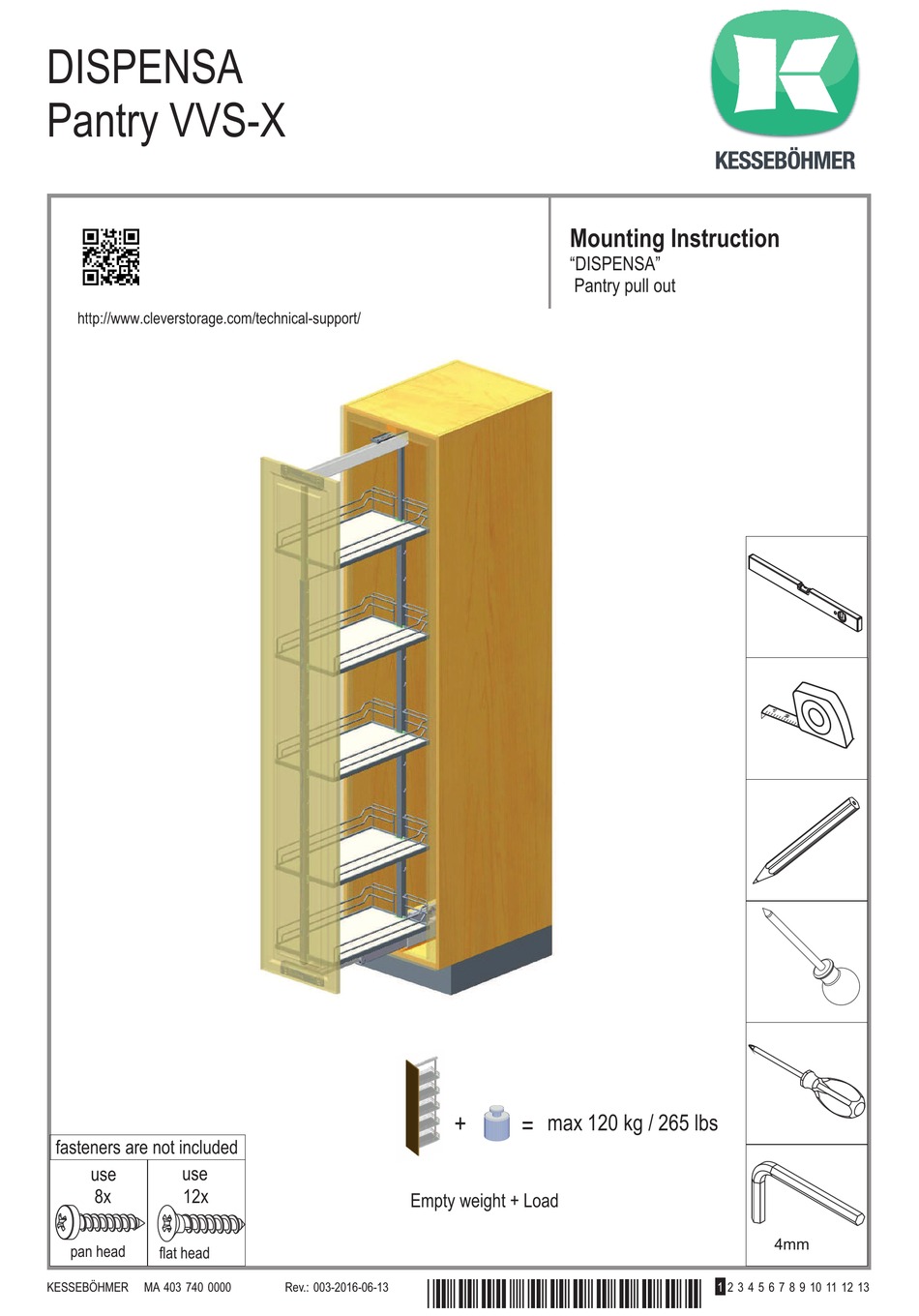

Mounting Instruction
"DISPENSA"

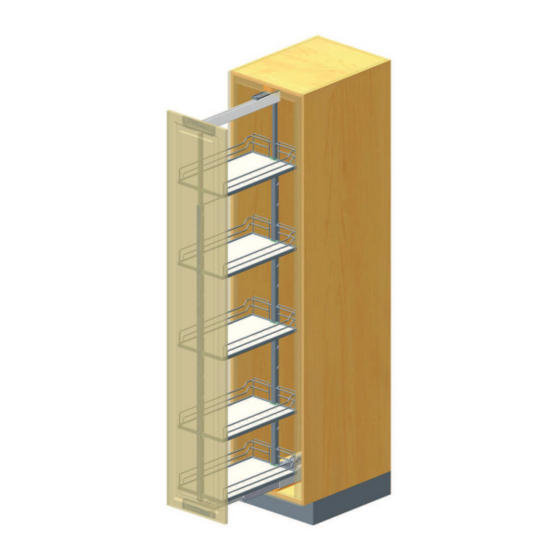

Pantry pull out
max 120 kg / 265 lbs
=
4mm
1
2 3 4 5 6 7 8 9 10 11 12 13
Advertisement
Related Manuals for Kesseböhmer DISPENSA Pantry VVS-X
Summary of Contents for Kesseböhmer DISPENSA Pantry VVS-X
- Page 1 DISPENSA Pantry VVS-X Mounting Instruction “DISPENSA” Pantry pull out http://www.cleverstorage.com/technical-support/ max 120 kg / 265 lbs fasteners are not included Empty weight + Load pan head flat head KESSEBÖHMER MA 403 740 0000 Rev.: 003-2016-06-13 *4037400000* 2 3 4 5 6 7 8 9 10 11 12 13...
- Page 2 DISPENSA Pantry VVS-X SYMBOLE • SYMBOLS • SYMBOLES • SYMBOLI • SIMBOLOS • SIMBOLOS • MERKIT • SYMBOLER • SYMBOLY • SYMBOLE • Warnung! • Warning! • Avertissement! • Avvertenza! • ¡Advertencia! • Aviso! • Varoitus! • Advarsel! • Výstraha! • Ostrzezenie! • Nicht korrekt! •...
- Page 3 DISPENSA Pantry VVS-X Check your cabinet construction Use a shim flush KESSEBÖHMER MA 403 740 0000 Rev.: 003-2016-06-13 4 5 6 7 8 9 10 11 12 13...
-
Page 4: Using Templates
DISPENSA Pantry VVS-X flat head Using templates Mount runner parts to your cabinet Use flat head screw min Ø4.5 (3/16“) KESSEBÖHMER MA 403 740 0000 Rev.: 003-2016-06-13 1 2 3 5 6 7 8 9 10 11 12 13... - Page 5 DISPENSA Pantry VVS-X Drilling positions for CNC machining flat head Framed cabinet with overlay door 69 (2 23/32“) 101 (3 31/32“) 229 (9 1/64“) 261 (10 9/32“) Framed cabinet with inset door Frameless cabinet with overlay door 69 ( 2 23/32“) Use flat head screw min Ø4.5 (3/16“) 101 (3 31/32“)
- Page 6 DISPENSA Pantry VVS-X Installation depth bottom runner faceframe overlay faceframe inset frameless KESSEBÖHMER MA 403 740 0000 Rev.: 003-2016-06-13 1 2 3 4 5 7 8 9 10 11 12 13...
- Page 7 DISPENSA Pantry VVS-X Installation depth top runner faceframe overlay faceframe inset frameless KESSEBÖHMER MA 403 740 0000 Rev.: 003-2016-06-13 1 2 3 4 5 6 8 9 10 11 12 13...
- Page 8 DISPENSA Pantry VVS-X Complete runner and frame installation 1/8” 1/4" No oil ! No dirt ! KESSEBÖHMER MA 403 740 0000 Rev.: 003-2016-06-13 1 2 3 4 5 6 7 9 10 11 12 13...
- Page 9 DISPENSA Pantry VVS-X Drillhole position door brackets Inset Door Overlay door Z = 13.5 (17/32“) + X Z = 13.5 (17/32“) - X KESSEBÖHMER MA 403 740 0000 Rev.: 003-2016-06-13 1 2 3 4 5 6 7 8 10 11 12 13...
- Page 10 DISPENSA Pantry VVS-X Mount door brackets pan head Mount bottom bracket first! Inset Door Overlay door Z = 62 (2 7/16“) + X Y = 62 (2 7/16“) - X KESSEBÖHMER MA 403 740 0000 Rev.: 003-2016-06-13 1 2 3 4 5 6 7 8 9 11 12 13...
-
Page 11: Mount The Door
DISPENSA Pantry VVS-X Mount the door The cabinet needs to be secured plumb and level! KESSEBÖHMER MA 403 740 0000 Rev.: 003-2016-06-13 1 2 3 4 5 6 7 8 9 10 12 13... - Page 12 DISPENSA Pantry VVS-X Adjustments PZ-2 Side to side adjustment adjust tighten tighten adjust fixing screw fixing screw KESSEBÖHMER MA 403 740 0000 Rev.: 003-2016-06-13 1 2 3 4 5 6 7 8 9 10 11...
-
Page 13: Installing The Shelves
DISPENSA Pantry VVS-X Installing the shelves Install shelves resting the front edge first, then engage the back hooks. Don’t push on side rails to install ! Subject to technical modifications without notice. KESSEBÖHMER MA 403 740 0000 Rev.: 003-2016-06-13 1 2 3 4 5 6 7 8 9 10 11 12...
