LP510R/LP510RS/LP510RSL QUICK START GUIDE

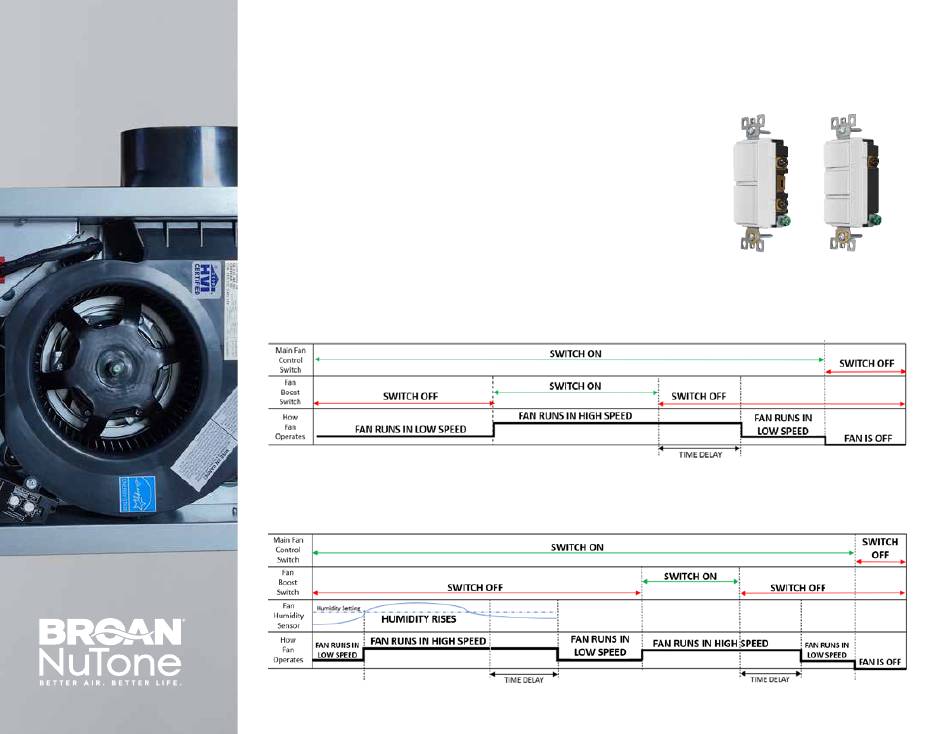

WALL SWITCH OPERATION
It is recommended that a 2-rocker switch is installed in the wall for the LP510R
and LP510RS fan models, and a 3-rocker switch is installed for the LP510RSL

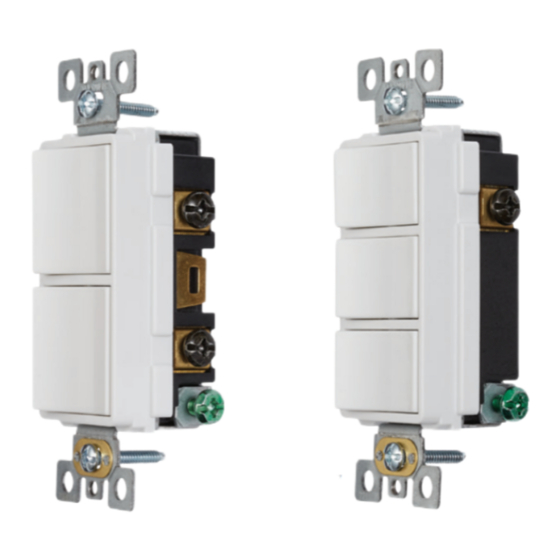

fan model. Switches (pictured right) are not included with the fan units.
Humidity sensing is a built-in feature for the LP510RS and LP510RSL fan and
does not require a wall switch for functionality.
P2RW
P3RW
LP510R Lo-Profile 50-80-100 Selectable CFM & Continuous Run
LP510RS/LP510RSL Lo-Profile 50-80-100 Selectable CFM, Continuous Run, Humidity Sensing
