QUICK START GUIDE
Your phone is smart. Your home should be too.
Thank you for purchasing a NuTone Smart Home Series product that will allow
you to automate your home on your terms. To control your lights from your favorite
Home Automation app you will need to replace an existing switch with a NuTone
Smart Home Series switch. Choose your favorite Home Automation gateway with
Z-Wave, connect it to the internet and start adding NuTone Smart Home Series
switches to control your lights!
A video of this installation procedure can be viewed on-line at:
www.nutone.com/HomeAutomation
For additional help, please view the NWT00Z Troubleshooting
and FAQ guide.

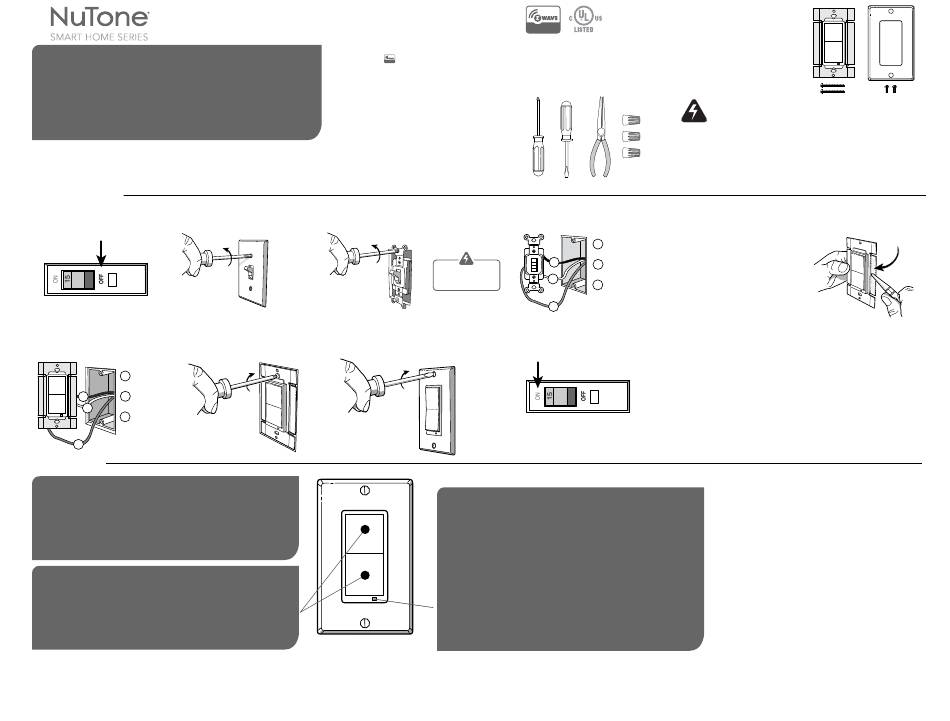

INSTALLATION

1
2
Turn power OFF for switch at
Remove wall plate from switch.
the main circuit breaker panel.
6
7
Connect all switch wires.
Install
NWT00Z
Note: Extra traveler wire not required. If
traveler wire is present cap with wire nut.
1
POWER
(BLACK)
2
1
NEUTRAL
(WHITE)
2
3
GROUND
(GREEN)
3

OPERATION

NOTE: Some lights have one wall switch (single pole) to
control them and others have two or more, such as stair lights
with a switch at both the top and bottom of the stairs (3-Way).
The NWT00Z 3-way wall switch does not directly control a
light and requires another NuTone Smart Home Series light
switch paired with it to function. The NWT00Z can be wired
anywhere power is available and connect wirelessly to another
switch (up to 5), without the need for a traveler wire(s).
Refer to the NWT00Z instructions included with this
Transmitter Switch and the Home Automation gateway
instructions for your specific system to add devices to your
system network.
When adding this device to the network, push the top or the
bottom of the switch as required and when requested by the
controller to define its operation in the system.

SPECIFICATIONS

Power: 120 VAC, 60 Hz
Signal: (Frequency) 908.42 MHz
Range: Up to 100 feet line of sight between the Controller and/or closest Z-Wave repeater.
Broan-NuTone LLC 926 West State Street Hartford, WI 53027
NWT00Z
Smart 3-Way Wall Dimmer Switch
Smart Wall Dimmer Switch, 500 Watt
Ensure your favorite home automation gateway (SOLD SEPARATELY) has
Z-Wave,
connect it to the internet and you are now ready to add the
NWT00Z Smart 3-Way Wall Dimmer Switch
The NWT00Z Smart 3-Way Wall Dimmer Switch has
Z-Wave certification which guarantees compatibility.

TOOLS REQUIRED

• Screwdriver, Flat Head
• Screwdriver, Phillips Head
• Pliers
• Wire Connectors
3
Remove screws and switch.
8
Install wall plate.
in wall box.
Convert standard White (included) to Almond with
Trim Kit sold separately.
NuTone.com Toll Free (855) 249-0610
4
Disconnect all switch wires.
1
POWER
(BLACK)
1
2
NEUTRAL
Ensure power to all
(WHITE)
wires in box is turned
2
OFF.
3
GROUND
(GREEN)
3
9
Turn power ON for switch at
the main circuit breaker panel.
Turning Z-Wave devices ON or OFF
When NWT00Z has been added to the network it operates
as follows:
· Tap top of switch to turn ON.
· Tap bottom of switch to turn OFF.
· Press and hold top of switch to brighten.
· Press and hold bottom of switch to dim.
· Or control from your Smart Phone using your Home
Automation App.
The LED on the NWT00Z will indicate the status of the devices
you are controlling. The LED will flicker when it is transmitting
commands to any of the group networks. This can be changed.
See the "NWT00Z Instructions" included with the transmitter.

IC NOTICE

This Class B digital apparatus complies with Canadian ICES-003. Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device.

COMPONENTS SUPPLIED

• Transmitter
• Screws, Transmitter Mounting
• Wall Plate
• Screws, Wall Plate mounting
DANGER! SHOCK HAZARD. Read and understand
the installation instructions and this quick start guide before
installing. This device is intended for installation in accordance with
the National Electric code and local regulations in the United
States, or the Canadian Electrical Code and local regulations in
Canada. It is recommended that a qualified electrician perform this
installation. Retain instructions and guide for future use.
5
Multiple switch preparation.
If NWT00Z will be installed into a box
with other switches, scores tabs on
the switch should be removed as
required. Do Not remove outside tabs
on the ends of switch groups.
To remove, bend tab back and forth
with pliers until it snaps free of switch.
10

System Pairing adding the NWT00Z to your controller

1. Place your Home Automation gateway with Z-Wave into
Discovery or Add mode.
2. Push the top or bottom rocker of the switch as required
and when requested by the controller to add it into your
Home Automation system.
3. Refer to your Z-Wave controllers instructions for additional
information on adding devices.

REGULATORY INFORMATION

The NWT00Z is certified to comply with applicable FCC and IC rules
and regulations governing RF and EMI emissions.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesired operation.

FCC NOTICE

Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions may
cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
Z-Wave® is a registered trademark of Sigma Designs
99045340A
