LP510R/LP510RSL QUICK START GUIDE
WALL SWITCH OPERATION
It is recommended that a 2-rocker switch is installed in the wall for the LP510R
fan model, and a 3-rocker switch is installed for the LP510RSL fan model.

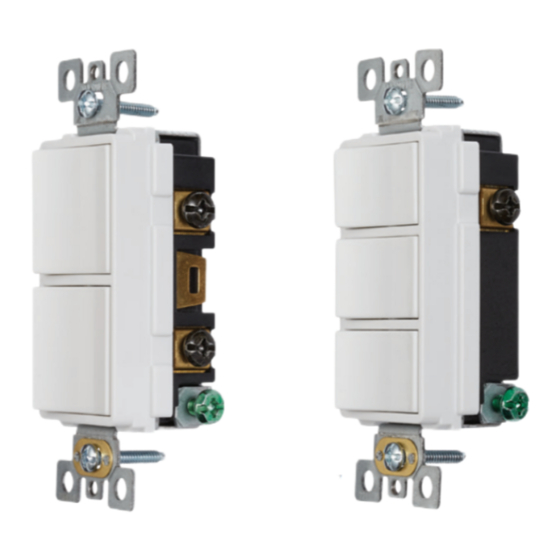

Switches (pictured right) are not included with the fan units. Humidity sensing
is a built-in feature for the LP510RSL fan and does not require a wall switch for
functionality.
P2RW
P3RW
LP510R Lo-Profile 50-80-100 Selectable CFM & Continuous Run
LP510RSL Lo-Profile 50-80-100 Selectable CFM, Continuous Run, Humidity Sensing
