DuraTrel 11126 Assembly & Instruction Manual

6' picnic table with benches

Advertisement

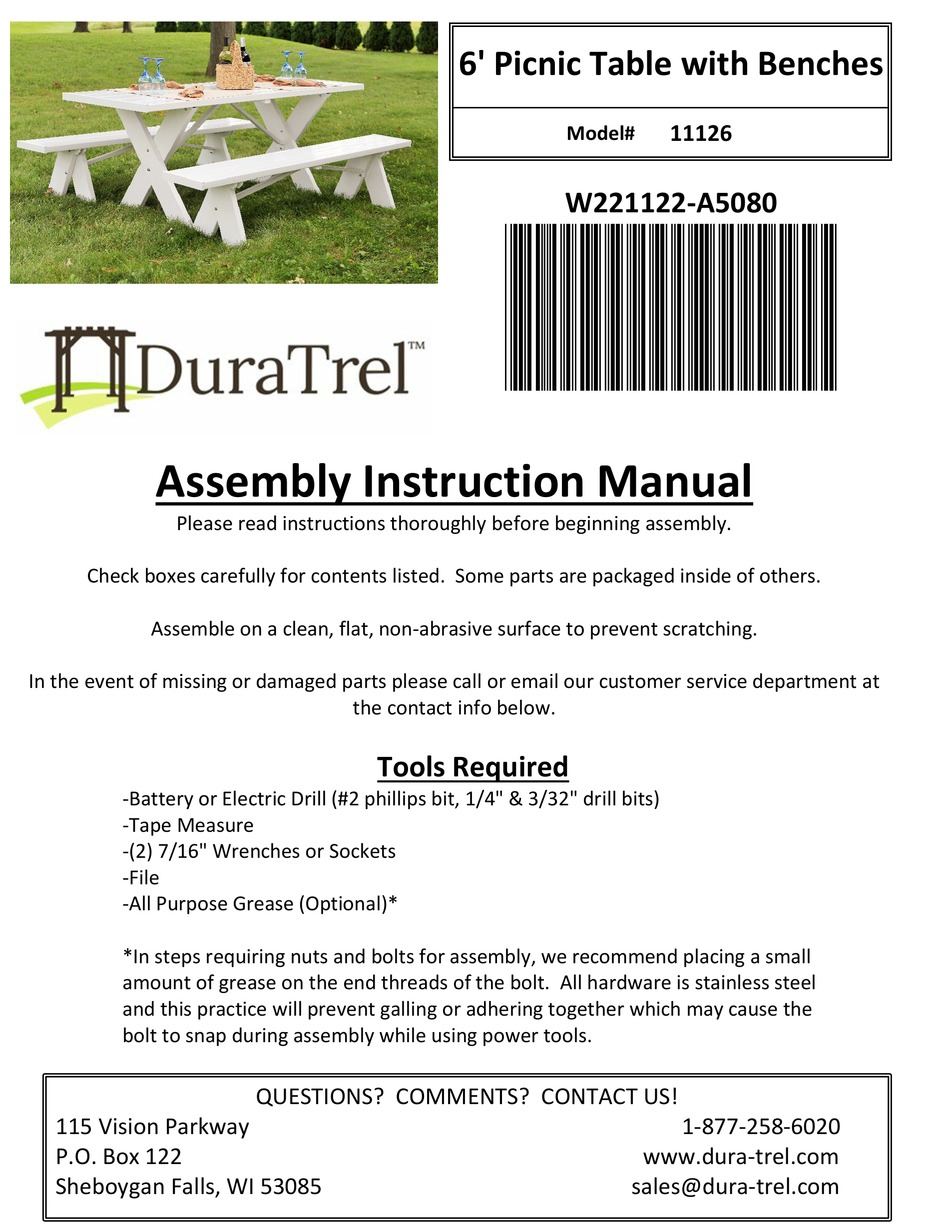

Assembly Instruction Manual
Please read instructions thoroughly before beginning assembly.
Check boxes carefully for contents listed. Some parts are packaged inside of others.
Assemble on a clean, flat, non-abrasive surface to prevent scratching.
In the event of missing or damaged parts please call or email our customer service department at
-Battery or Electric Drill (#2 phillips bit, 1/4" & 3/32" drill bits)
-Tape Measure
-(2) 7/16" Wrenches or Sockets
-File
-All Purpose Grease (Optional)*
*In steps requiring nuts and bolts for assembly, we recommend placing a small
amount of grease on the end threads of the bolt. All hardware is stainless steel
and this practice will prevent galling or adhering together which may cause the
bolt to snap during assembly while using power tools.
115 Vision Parkway
P.O. Box 122
Sheboygan Falls, WI 53085
the contact info below.

Tools Required

QUESTIONS? COMMENTS? CONTACT US!
6' Picnic Table with Benches
Model#
W221122-A5080
*W201121-A2040*
*W201121-A2040*
*W201121-A2040*
*W201121-A2040*
*W201121-A2040*
*W201121-A2040*
sales@dura-trel.com
11126
1-877-258-6020
www.dura-trel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 11126 and is the answer not in the manual?

Questions and answers

Summary of Contents for DuraTrel 11126

  • Page 1 6' Picnic Table with Benches 11126 Model# W221122-A5080 *W201121-A2040* *W201121-A2040* *W201121-A2040* *W201121-A2040* *W201121-A2040* *W201121-A2040* Assembly Instruction Manual Please read instructions thoroughly before beginning assembly. Check boxes carefully for contents listed. Some parts are packaged inside of others. Assemble on a clean, flat, non-abrasive surface to prevent scratching.
  • Page 2 29" 16" 72" 11" 28" 6' Picnic Table with Benches - Page 2...
  • Page 3 Lay out four 72" table top rails (part 1) and one center table rail (part 2) as shown above with pilot holes facing up, leaving ⅛" gap between rails. Set four 12 ¾"" table brackets (part 3) over pilot holes at each end of table top rail, making sure brackets are offset as shown.
  • Page 4 Loosely bolt two table legs (part 14) together using 3½" bolts, washers and nylock nuts. Make sure pilot holes for brackets are at the same end. Place each set of bolted legs into the bracket slots from step 1. Line up pilot hole and fasten legs to table using 2 ¼" bolts, washer and nylock nuts. Remove bottom nylock nut on one leg and slide bolt through the hole on angel brace (part 7).
  • Page 5 Lay out two of the 72" bench rails (part 13) as shown, leaving a 1/8” gap between rails. Set the two bench brackets (part 4) over pilot holes and fasten brackets to bench rails using ¾” screws. Apply glue to the 7/8 x 1 ½”...
  • Page 6 Loosely bolt two bench legs (part 15) together using 4" bolts, washers and nylock nuts. Make sure pilot holes for brackets are at the same end. Place each set of bolted legs into the bracket slots from step 8. Line up pilot hole and fasten legs to bench using 4" bolts, washer and nylock nuts. Remove bottom nylock nut on one leg and slide bolt through the hole on angel brace (part 8).
  • Page 7 Warranty Statement 20 Year Guarantee Please call manufacturer direct with questions concerning missing or defective parts at Toll Free: 877-258-6020. Dura-trel, Inc. products are warranted to be free from manufacturing defects resulting in delaminating, peeling, flaking, corroding, cracking, crazing, or extreme amounts of fading or bleaching causing the PVC to change to its natural color for a period of 20 years from the date of purchase.
