General Information:
Read through carefully before beginning assembly.
»
When assembling components, place on a clean, flat,
»
non-abrasive surface to avoid scratches.
In the event of missing or defective parts, please call our
»
customer service department directly at 1-877-258-6020
Tools required:
Cordless Drill with #2 phillips bit
»
Tape Measure
»
Level
»
File or Sandpaper
»
Product and hanging

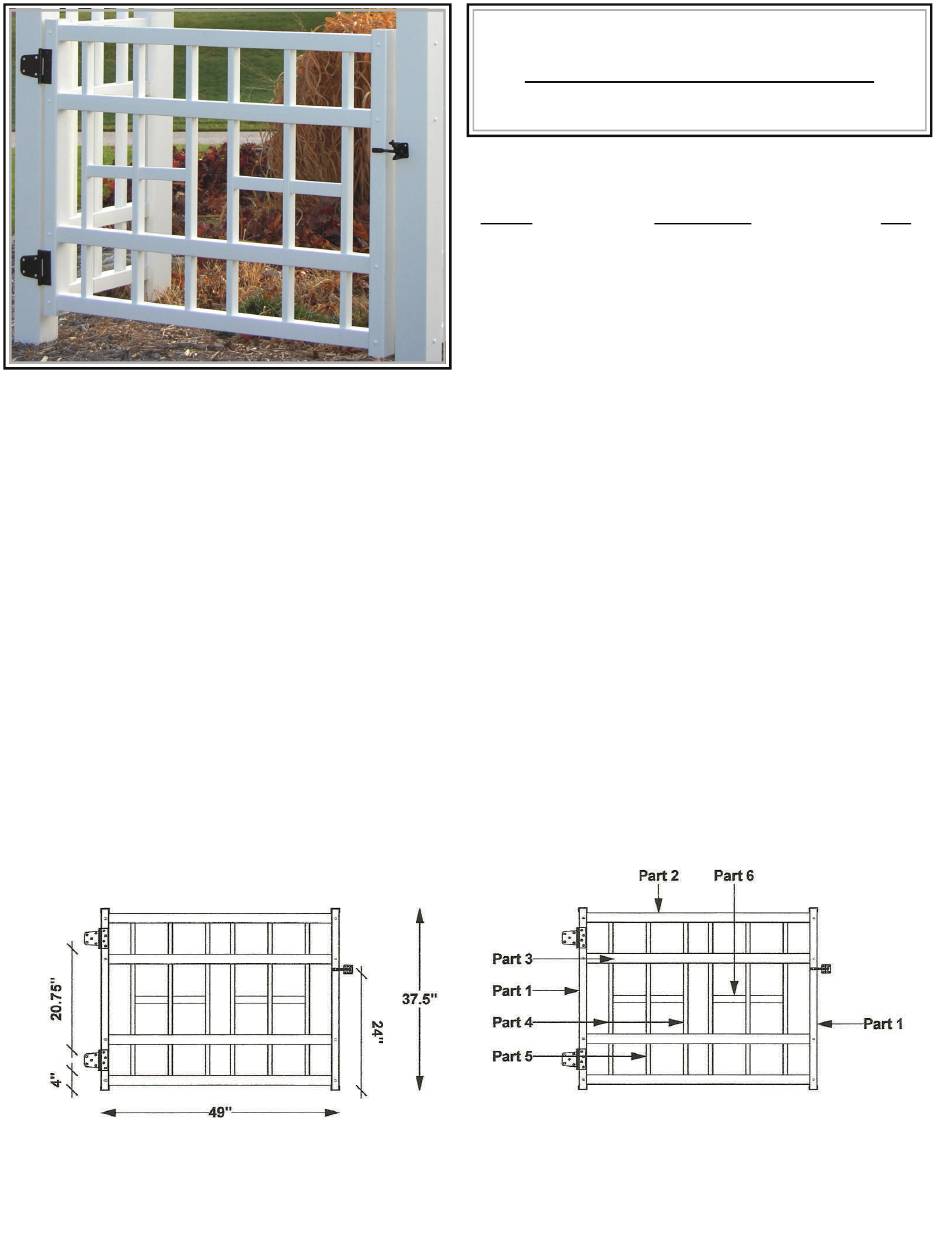

FIGURE 1
dimensions
Windford gate
Assembly & installation Instructions
Parts List:
Part #
Description
1
1½" x 4" x 37¼" Post
2
2" sq. x 48¾" Top/Bottom Cross Rail
3
2" sq. x 48¾" Center Cross Rail
4
⅞" x 1½" x 35" Outside Vertical Rail
5
⅞" x 1½" x 35" Middle Vertical Rail
6
⅞" x 1½" x 16" Rail
7
Hinge Pack
8
Gate Latch Pack
9
Hinge Screw Pack
10
Hardware Kit (includes):
4" Post End Cap
1½" Kappet Screw
Kappet Screw Cap
FIGURE 2
Part identification
Qty
(contains 18 screws)
2
2
2
4
2
2
2
1
1
4
16
16
Advertisement
Related Manuals for DuraTrel WINDFORD GATE
Summary of Contents for DuraTrel WINDFORD GATE
- Page 1 Windford gate Assembly & installation Instructions Parts List: Part # Description 1½“ x 4” x 37¼” Post 2” sq. x 48¾” Top/Bottom Cross Rail 2” sq. x 48¾” Center Cross Rail ⅞” x 1½” x 35” Outside Vertical Rail ⅞” x 1½” x 35” Middle Vertical Rail ⅞”...
- Page 2 Lay out two middle vertical rails (part 5). Insert one 16” rail (part 6) through center hole of each middle vertical rail. Insert free ends of each 16” rail into center hole of each outside vertical rail (part 4). Insert free ends of vertical rails through corresponding holes of each center rail (part 3).
- Page 3 Using four screws from hinge screw pack (part 9), fasten lower hinge (part 7) 4” from bottom of desired post to bottom of hinge (figure 1). Fasten upper hinge 20¾” from top of lower hinge to bottom of upper hinge. When fastening hinges, fasten narrow end with four screws to gate post.
