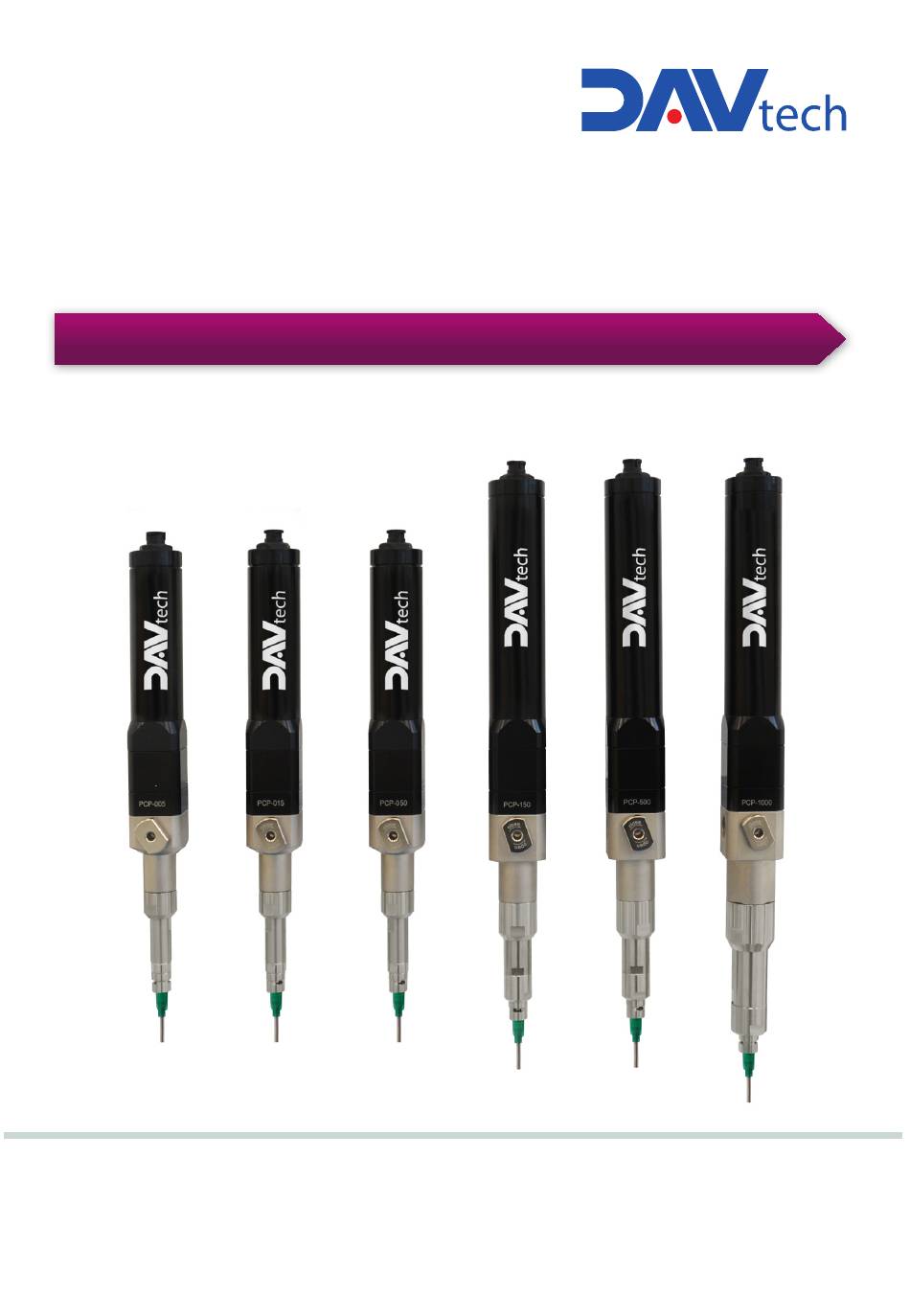

- Page 1 VOLUMETRIC PUMPS PCP 005/ 015 / 050 / 150 / 500 / 1000 DAV TECH SRL Via Ravizza, 30 - 36075 Montecchio Maggiore (VI) - ITALY Tel. 0039 0444 574510 - Fax 0039 0444 574324 davtech@davtech.it - www.davtech.it...
- Page 2 Installation and maintenance guide Index 1 INTRODUCTION pag. 3 1.1 The manual 1.2 Warranty 1.3 Goods receiving 2 TECHNICAL DESCRIPTION pag. 3 2.1 Pumps operation 2.2 Technical specifications 3 GETTING STARTED pag. 4 3.1 Pump 005/ 015 / 050 / 150 / 500 / 1000 composition 3.2 Notes before use 3.3 Connection A (stator) B (rotor) 3.4 Eliminating bubbles before dispensing the fluid...
-
Page 3: Technical Description
Reproduction of any part of this manual, in any form, without the express written permission of DAV Tech. The text and illustrations in this manual are not binding, the DAV Tech reserves the right, at any time and without notice, the right to make any changes to improve the product or for reasons of character manufacturing or commercial. -
Page 4: Getting Started
7 : Screws, Compass 3.2 Notes before use > Use the accessories specified by DAV Tech. For the choice of nozzles, evaluate according to the quantity to be dispensed and the desired application result. > Keep the pump, its components and accessories clean and protect them from dust or contamination. - Page 5 VOLUMETRIC PUMPS PCP 3.3 Connection A (stator) and B (rotor) If the pump has been delivered disassembled, follow the instructions below for assembly. Use C (fixed tool) to hold the rotor in place and apply the fluid that will be dispensed into A (stator) and B (rotor).
-
Page 6: Typical Setup
Installation and maintenance guide 4 TYPICAL SETUP For the proper use of the pump, use the following setting methods to setup. 4.1 Syringe or Cartridge and Controller use Air hose Cartridges-holder Pump motor cable Syringe fluid supply hose Controller PCP pump 4.2 Tank and Controller use Air hose Tank... - Page 7 VOLUMETRIC PUMPS PCP 4.4 Siringe or Cartridge and Driver use Air hose Cartridges-holder Pump motor cable Syringe fluid supply hose Driver Modbus o Profinet PCP pump 4.5 Tank and Controller use Air hose Tank Pressure regulator Pump motor cable fluid supply hose Driver Modbus o Profinet PCP pump...
-
Page 8: Pump Maintenance
Installation and maintenance guide 5 PUMP MAINTENANCE Follow the instructions below to perform maintenance of the pumps. A. Prepare the pump and the necessary tools. B. Turn the screws nr. 1 and unplug it to separate the elements 2 and 3, then unscrew the screws n. 4 (if present) to separate the element nr. - Page 9 VOLUMETRIC PUMPS PCP C. Turn the element nr. 6 counter-clockwise to separate the element nr. 7. Using the fixed tool (supplied) nr. 8, in the motor joint, rotate and separate the stator nr. 9. E. Unscrew nr. 10 screw (M3x35) to separate the elements nr. 11 and nr. 12.
-
Page 10: Troubleshooting Guide
Installation and maintenance guide 6 TROUBLESHOOTING GUIDE PUMP TROUBLE POSSIBLE CAUSE AND CORRECTION 1) Check the fluid supply. 2) Check the electrical supply of the controller. 3) Check if there is fluid. Fail dispense 4) Check if the circuit is full of fluid. 5) Check that the nozzle is not clogged. -
Page 11: Pump Structure
Failure to maintain or use the pump in conditions that do not correspond to those indicated in this manual may result in total damage to the pump itself. DAV Tech is pleased to support customers by advising them in the choice of the model that suits their needs, supplying spare parts or even signing scheduled maintenance contracts. - Page 12 Installation and maintenance guide 8 BREAKDOWNS 8.1 Breakdown PCP-005 Dedicated to pump model/ body Pump PCPM extension...
- Page 13 VOLUMETRIC PUMPS PCP PCP-005 Components list Ref. Description Code Additional description ROTOR ASSY (including component no. 12) PCP-005-ROTOR STAINLESS STEEL ROTOR ASSY PCP-005 PCP-005-ROTOR-PP POLYPROPYLENE ROTOR ASSY PCP-005 SMALL OUTLET ADAPTER PCP PCP-LUER-S SMALL LUER LOCK ADAPTOR PCP PCP-LUER-S-PEEK SMALL LUER LOCK ADAPTOR PCP PEEK PCP-18-S SMALL 1/8"...
- Page 14 Installation and maintenance guide 8.2 Breakdown PCP-015 Dedicated to pump model/ body Pump PCPM extension...
- Page 15 VOLUMETRIC PUMPS PCP PCP-015 Components list Ref. Description Code Additional description ROTOR ASSY (including component no. 12) PCP-015-ROTOR STAINLESS STEEL ROTOR ASSY PCP-015 PCP-015-ROTOR-PP POLYPROPYLENE ROTOR ASSY PCP-015 PCP-015-ROTOR-TC CARBIDE ROTOR ASSY PCP-015 PCP-015-ROTOR-ZC ZIRCONIA ROTOR ASSY PCP-015 SMALL OUTLET ADAPTER PCP PCP-LUER-S SMALL LUER LOCK ADAPTOR PCP PCP-LUER-S-PEEK...
- Page 16 Installation and maintenance guide 8.3 Breakdown PCP-050 Dedicated to pump model/ body Pump PCPM extension...
- Page 17 VOLUMETRIC PUMPS PCP PCP-050 Components list Ref. Description Code Additional description ROTOR ASSY (including component no. 12) PCP-050-ROTOR STAINLESS STEEL ROTOR ASSY PCP-050 PCP-050-ROTOR-PP POLYPROPYLENE ROTOR ASSY PCP-050 PCP-050-ROTOR-TC CARBIDE ROTOR ASSY PCP-050 PCP-050-ROTOR-ZC ZIRCONIA ROTOR ASSY PCP-050 SMALL OUTLET ADAPTER PCP PCP-LUER-S SMALL LUER LOCK ADAPTOR PCP PCP-LUER-S-PEEK...
- Page 18 Installation and maintenance guide 8.4 Breakdown PCP-150 Dedicated to pump model/ body Pump PCPM extension...
- Page 19 VOLUMETRIC PUMPS PCP PCP-150 Components list Ref. Description Code Additional description ROTOR ASSY (including component no. 12) PCP-150-ROTOR ROTOR ASSY STAINLESS STEEL PCP-150 PCP-150-ROTOR-TC ROTOR ASSY CARBIDE PCP-150 PCP-150-ROTOR-ZC ROTOR ASSY ZIRCONIA PCP-150 BIG OUTLET ADAPTER PCP PCP-LUER-B BIG LUER LOCK ADAPTOR PCP PCP-LUER-B-PEEK BIG LUER LOCK ADAPTOR PCP PEEK PCP-18-B...
- Page 20 Installation and maintenance guide 8.5 Breakdown PCP-500 Dedicated to pump model/ body Pump PCPM extension...
- Page 21 VOLUMETRIC PUMPS PCP PCP-500 Components list Ref. Description Code Additional description ROTOR ASSY (including component no. 12) PCP-500-ROTOR ROTOR ASSY STAINLESS STEEL PCP-500 PCP-500-ROTOR-TC ROTOR ASSY CARBIDE PCP-500 PCP-500-ROTOR-ZC ROTOR ASSY ZIRCONIA PCP-500 BIG OUTLET ADAPTER PCP PCP-LUER-B BIG LUER LOCK ADAPTOR PCP PCP-18-B BIG 1/8"...
- Page 22 Installation and maintenance guide 8.6 Breakdown PCP-1000 Dedicated to pump model/ body Pump PCPM extension...
- Page 23 VOLUMETRIC PUMPS PCP PCP-1000 Components list Ref. Description Code Additional description ROTOR ASSY (including component no. 12) PCP-1000-ROTOR ROTOR ASSY STAINLESS STEEL PCP-1000 PCP-1000-ROTOR-TC ROTOR ASSY CARBIDE PCP-1000 PCP-1000-ROTOR-ZC ROTOR ASSY ZIRCONIA PCP-1000 PCP-1000 OUTLET ADAPTER PCP-LUER-1000 PCP-1000 LUER LOCK ADAPTOR PCP-14-1000 PCP-1000 1/4"...
- Page 24 PRESSURE SENSOR PCP-PRESSUREOUTLET-1000 DAV TECH SRL Via Ravizza, 30 - 36075 Montecchio Maggiore (VI) - ITALY - Tel. 0039 0444 574510 - Fax 0039 0444 574324 davtech@davtech.it - www.davtech.it Ci riserviamo di modificare in qualsiasi momento, senza preavviso, le caratteristiche tecniche, le dimensioni ed i pesi indicati nel presente manuale. Le illustrazioni non sono impegnative.
