CMC PROSWIVEL SWIVABINER Quick Start Manual

CMC PROSWIVEL™
SWIVABINER
MEETS THE PULLEY REQUIREMENTS OF
NFPA 1983, INCORPORATED IN THE 2022
EDITION OF NFPA 2500.

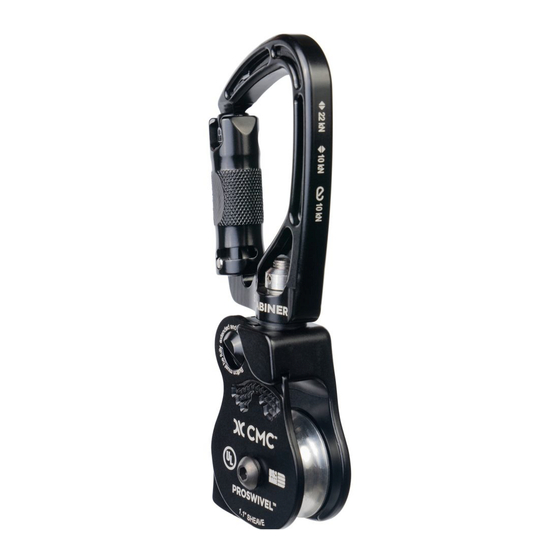

• 300435-01 CMC PROSWIVEL SWIVABINER
TECHNICAL USE (T) 22 kN (4,946 lbf)
• 300439 CMC PROSWIVEL DOUBLE
SWIVABINER TECHNICAL USE (T) 22 kN
(4,946 lbf)
CARABINER FRAMES TESTED TO MEET THE MINIMUM
REQUIREMENTS OF NFPA T RATING.
MBS 22 kN MAJOR AXIS
MBS 10 kN MINOR AXIS
MBS 10 kN GATE OPEN
WARNINGS
Activities involving the use of this device are potentially
dangerous. You are responsible for your own actions and
decisions. Before using this device, you must:
• Read and understand these user instructions, labels,
and warnings.
• Familiarize yourself with its capabilities and limitations.
• Obtain specific training in its proper use.
• Understand and accept the risks involved.
FAILURE TO HEED ANY OF THESE WARNINGS MAY
RESULT IN SEVERE INJURY OR DEATH.
Legend
Imminent risk of serious Imminent risk of
injury or death. accident or injury.
Appropriate function Equipment
or use. incompatibility.
Find the latest version of this manual at cmcpro.com.
USER INFORMATION
User Information shall be provided to the user of the product.
NFPA Standard 1983, incorporated into the 2022 edition of NFPA
2500 recommends separating the User Information from the
equipment and retaining the information in a permanent record.
The standard also recommends making a copy of the User
Information to keep with the equipment and that the information
should be referred to before and after each use.
Additional information regarding life safety equipment can
be found in NFPA 1500 and NFPA 1858 and NFPA 1983,
incorporated in the 2022 edition of NFPA 2500.
LIFESPAN / INSPECTION / RETIREMENT
CMC does not specify an expiration date for hardware because
the service life depends greatly on how and where it is used.
The type of use, intensity of use, and environment of use are all
factors in determining serviceability of the equipment. A single
exceptional event can be cause for retirement after only one
use, such as exposure to sharp edges, extreme temperatures,
chemicals, or harsh environments. Remove retired equipment
from service and destroy it to prevent further use.
A device must be retired when it fails to pass inspection; it fails
to function properly; it has illegible product markings; it shows
signs of damage or excessive wear; it has been subjected to
shock loads, falls, or abnormal use; it has been exposed to harsh
chemical reagents; it has an unknown usage history; there is
any doubt as to its condition or reliability; or when it becomes
obsolete due to changes in legislation, standards, technique or
incompatibility with other equipment.
Inspect the equipment according to your department's policy for
inspecting life safety equipment. CMC recommends a detailed
inspection by a competent person at least once every 12
months depending on current regulations and conditions of use.
Record the date, inspector name, and inspection results in the
equipment log as well as any other relevant information to track
the usage history.
Before each use, the user should confirm the device is
functioning properly; verify the presence and legibility of the
product markings; and verify there is no excessive wear or
indications of damage such as deformation, corrosion, sharp
edges, cracks, or burrs. Minor nicks or sharp spots may be
smoothed with emery cloth or similar. Check for the presence of
!
dirt or foreign objects that can affect or prevent normal operation
such as grit, sand, rocks, and debris.
During each use, the user should confirm all pieces of equipment
in the system are correctly positioned with respect to each other;
monitor the condition of the device and its connections to other
equipment in the system; do not allow anything to interfere with
the operation of the device or its components; and keep foreign
objects out of the device.
LIMITATIONS AND PROPER USE
SWIVEL FUNCTION: For orientation only. Not for high speed or
multi-rotation:
1. Verify swivels rotate freely. Swivel-type devices must NEVER
be used with steel cable or wire rope unless the wire rope
manufacturer verifies such use is approved and that the
cable/rope will not unwind when used with a swivel.
2. Verify spring pin is in place and has not been removed.
