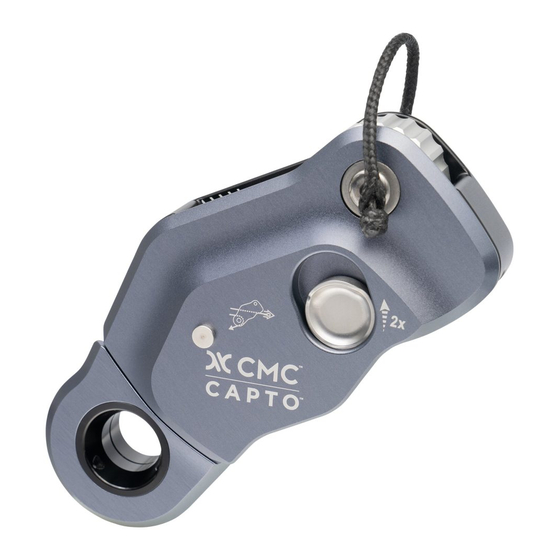

- Page 1 CAPTO ™ MULTIFUNCTIONAL ROPE GRAB WITH PULLEY 11 mm (7/16 in) Patented EN 12841:2006/B EN 567:2013 GENERAL USE (G) EN 12278:2007 NFPA 2500 (1983), 2022 ED. EN 365:2004 0598 Regulation (EU) 2016/425 Find the latest version and translations of this manual at cmcpro.com...
- Page 2 CMCPRO.COM...
- Page 3 NFPA CERTIFICATION AS A PULLEY ONLY APPLIES WHEN USING THE BECKET AS THE PULLEY ATTACHMENT POINT. FOR INFORMATION ON DEVICE PERFORMANCE WHEN USING OTHER LIFE SAFETY ROPES, PLEASE CONTACT CMC OR REFER TO CAPTO TECHNICAL SECTION AT CMCPRO.COM CAPTO USER MANUAL...
- Page 4 WARNINGS Activities involving the use of this equipment are inherently dangerous. You are responsible for your own actions and decisions. Before using this equipment, you must: • Read and understand the user instructions, labels, and warnings. • Familiarize yourself with its capabilities and limitations. •...
-
Page 5: Table Of Contents
USE IN HAULING 3:1 MECHANICAL ADVANTAGE SYSTEM 5:1 MECHANICAL ADVANTAGE SYSTEM RE-SETTING THE SYSTEM USE IN ASCENDING USE IN A RAD SYSTEM USE AS A PULLEY ACCESSORY LOOP ATTACHMENT EQUIPMENT RECORDS EQUIPMENT RECORD TABLE PERIODIC INSPECTION CHECKLIST ADDITIONAL INFORMATION CAPTO USER MANUAL... -
Page 6: Traceability & Markings
TRACEABILITY & MARKINGS I, J, K L, M, N CMCPRO.COM... - Page 7 Model Identification: 336011 Individual Number: Pulley Loading/Running Direction: 00000 - 000 Unit Serial Number Day of Manufacture USA Made: Year of Manufacture Pulley Strength: 36 kN Mark and Information of NFPA certification body: Carefully Read the Instructions for Use: CAPTO USER MANUAL...
-
Page 8: Field Of Application
Ø 10.5-11 mm EN 12278:2007 EN 1891 – EN 892 Ø 13mm MAX 36kN (18+18) – EN 564 Pulley strength testing performed by using CAPTO Becket as Pulley Attachment Point NOMENCLATURE Moving Sideplate Front Rope Guide Sideplate Release Button Pulley... - Page 9 CAPTO USER MANUAL...
-
Page 10: Inspection, Points To Verify
INSPECTION, POINTS TO VERIFY Cleaning CMCPRO.COM... -
Page 11: Compatibility
COMPATIBILITY Connectors CAPTO USER MANUAL... -
Page 12: Product Use
PRODUCT USE Opening & Closing the Sideplate CMCPRO.COM... - Page 13 WARNINGS - 6A WARNINGS - 6B CAPTO USER MANUAL...
- Page 14 WARNINGS - 6C WARNINGS - 6D See text for details CMCPRO.COM...
-
Page 15: Use In Hauling
WARNINGS - 6E Pinch Point Use in Hauling CAPTO USER MANUAL... - Page 16 Use in Hauling Function Test STOP RESET CMCPRO.COM...
-
Page 17: 3:1 Mechanical Advantage System
3:1 Mechanical Advantage System 5:1 Mechanical Advantage System Re-Setting the System CAPTO USER MANUAL... -
Page 18: Use In Ascending
Use in Ascending CAPTO used as EN 12841 Type B Rope Adjustment Device EN 362 Connector EN 354 Lanyard CMCPRO.COM... - Page 19 Use in Ascending Function Test STOP CAPTO USER MANUAL...
- Page 20 Use in Ascending STOP CMCPRO.COM...
-
Page 21: Use In A Rad System
Use in a RAD System CAPTO USER MANUAL... -
Page 22: Use As A Pulley
Use As a Pulley 4 kN CMCPRO.COM... -
Page 23: Accessory Loop Attachment
Accessory Loop Attachment CAPTO USER MANUAL... -
Page 24: Equipment Records
EQUIPMENT RECORDS Equipment Record Table Product Name, Model CAPTO™ CMC RESCUE, INC Manufacturer 6740 Cortona Drive Goleta, CA 93117 USA Tel: 800-235-5741 / 805-562-9120 Manufacturer Contact Fax: 800-235-8951 / 805-562-9870 Information Email: info@cmcpro.com Web: cmcpro.com User (company, name, and address) -
Page 25: Periodic Inspection Checklist
Periodic Inspection Checklist Check Inspector Name Date of Next Notes/Results Date & Signature Check CAPTO USER MANUAL... -
Page 26: Additional Information
00380 Helsinki, Finland Tel. +358.9.696361 Declaration of Conformity CMC Rescue, Inc. declares that this article is in conformity with the essential requirements and the relevant provisions of EU regulations. The original Declaration of Conformity can be downloaded at the following website: cmcpro.com. - Page 27 CAPTO USER MANUAL...
- Page 28 Contact CMC if you have any questions or difficulty on the rope. Visit CMC’s website for data on CAPTO Before & After Each Use understanding these instructions. Check cmcpro.com slip performance across a range of industry ropes in for updates and additional information.
- Page 29 CAPTO. Aluminum carabiners are breakdown of material over extended use and time. preferred for use with the CAPTO. Steel or Stainless The equipment should not be modified in any way Retirement...
- Page 30 To install CAPTO on the working line, refer to the upwards by pushing CAPTO toward the anchor then • Do not load CAPTO as a high line trolley. It is not previous Installation & Removal section. When using stepping up in the foot loop while pulling down on the...
- Page 31 Use as a Pulley The primary function of the CAPTO pulley is to aid in building mechanical advantage systems. It can also be used as a stand-alone pulley by using the CAPTO becket as the pulley attachment point. Refer to the associated illustration for pulley attachment method and orientation.
- Page 32 CAPTO USER MANUAL...
- Page 33 Learn more about your CAPTO CMC Rescue, Inc. 6740 Cortona Drive Goleta, CA 93117, USA 805-562-9120 / 800-235-5741 cmcpro.com ISO 9001 Certified © CMC Rescue, Inc. All rights reserved CMC and are registered marks of CMC Rescue Inc. Control No.: 910018_Rev01...
