Summary of Contents for Speco O4LB1

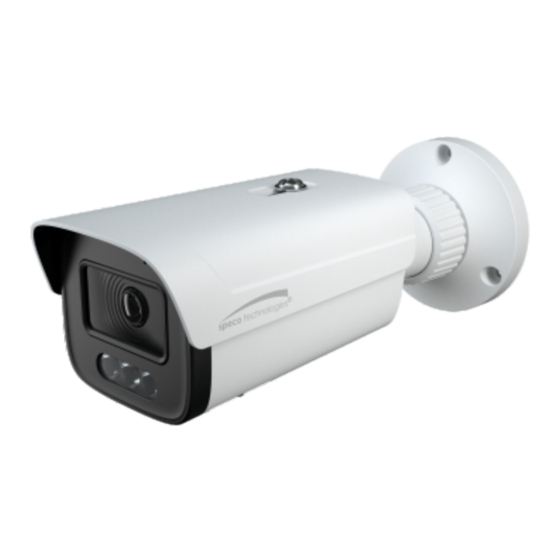

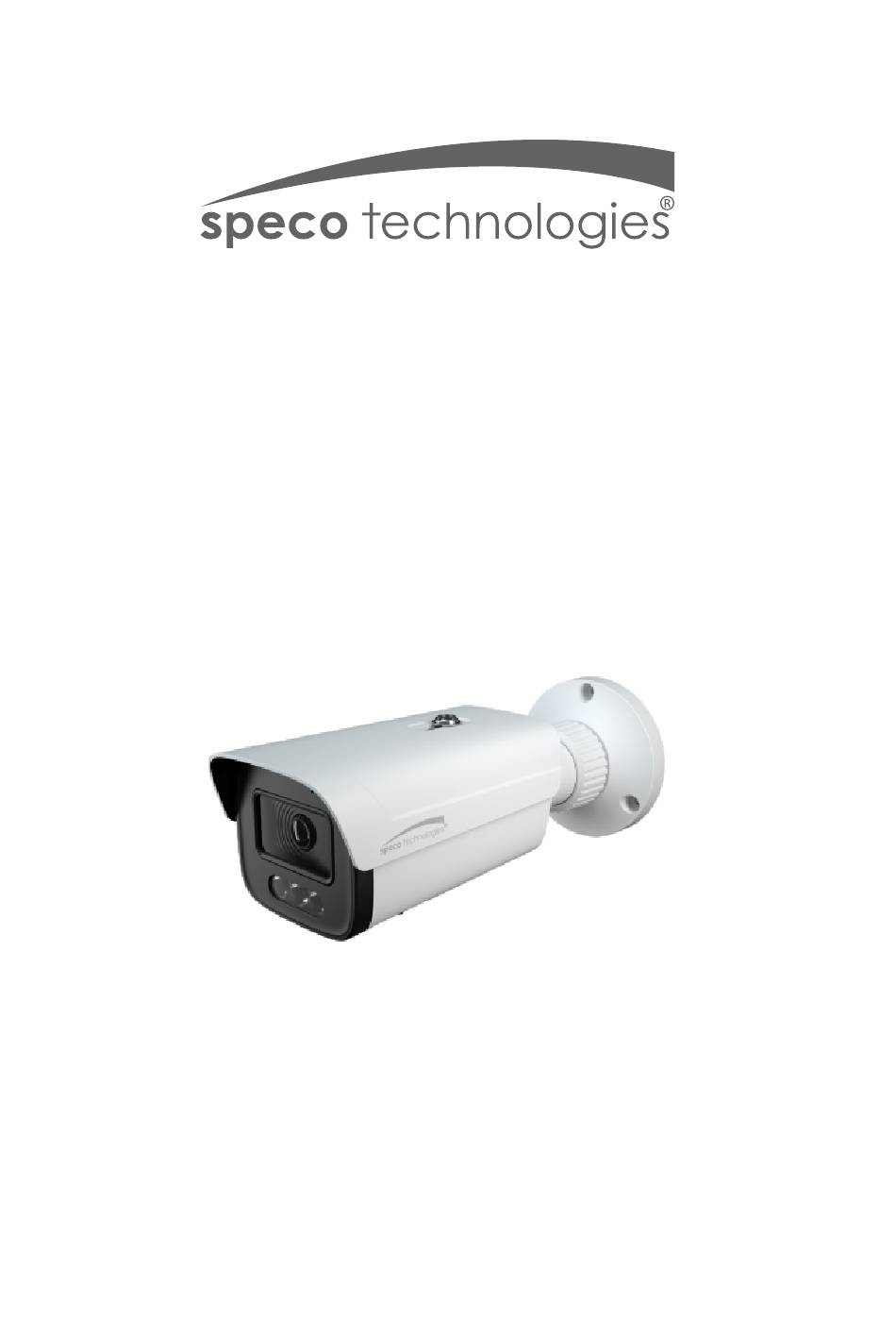

- Page 1 Quick Start Guide O4LB1...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 Camera Quick start guide 7 Plastic screw anchors 7 Screws (PA 4×25mm) Drill Template Junction box 1Screw (PWM3×5mm) 3 Screws 4 Rubber o-rings Rubber plug (PM 4 ×10mm) for screws Overview Overview Fixed ring DC power connector Mounting base Micro SD card slot Reset Ethernet connector Audio input...
-
Page 5: Connecting Network Cable
External microphone DC12V * It is recommended to install the water-proof connector for outdoor installations. Connecting Network Cable ① Loosen the nut from the main element. ② Run the network cable (without RJ 45 connector) through both elements. Then crimp the cable with RJ 45 connector. ③... -
Page 6: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Open the mounting base and the upper cover of the junction box. Mounting Base Upper Cover Attach the drill template of the junction box to the place where you ②... - Page 7 Rubber plug 3× PM 4×10mm ⑤ Connect the cables and then install the camera onto the junction box as shown below. ⑥ Bracket Adjustment-Loosen the fixed ring to adjust the view angle of the camera. After you get the optimum angle of view, tighten the fixed ring to complete the installation.
- Page 8 The camera is set to DHCP by default. ② Install IP Scanner from the CD and run it after installation. Or download from https://www.specotech.com/ip-scanner/ O4LB1 5C:F2:07:24:28:6A ③ In the device list, you can view the IP address, model number, and MAC address of each device.
- Page 9 The login interface is shown above. Default user name is admin and password is 1234. After logging in, follow directions to install applicable plugins if prompted.
