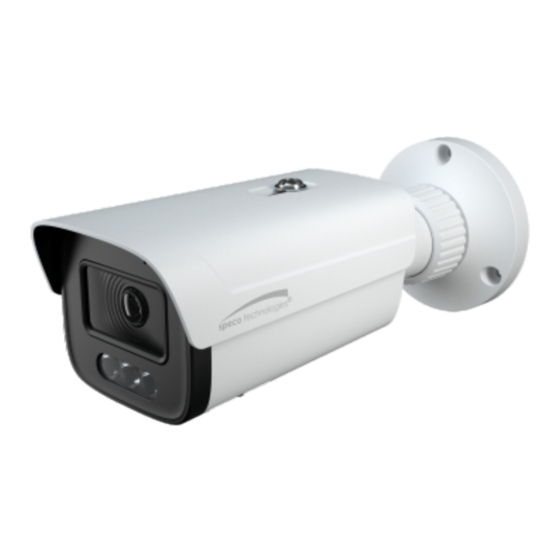

- Page 1 User Manual 4MP Full-Color IP Camera O4LB1/ O4LT1 Please read this manual carefully before operating the unit and keep it for further reference...
- Page 2 Important Safeguards and Warnings 1. Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class2 or adequate PoE switch. Improper handling and/or installation could run the risk of fire or electrical shock. 2.
- Page 3 Statement This guide is for reference only. Product, manuals, and specifications may be modified without prior notice. Speco Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation.
-
Page 4: Table Of Contents
Table of Contents Introduction ..........................................2 Web Access and Login ......................................3 Live View..........................................5 Camera Configuration ......................................6 System Configuration ................................6 4.1.1 System Information ..............................6 4.1.2 Date and Time ................................6 4.1.3 Local Recording ................................6 4.1.4 Storage .................................. - Page 5 4.7.4 Operation Log ................................33 Search ............................................ 34 Image Search ..................................34 Video Search ..................................36 5.2.1 Local Video Search ..............................36 5.2.2 SD Card Video Search..............................37 Appendix ............................................40 Appendix 1 Troubleshooting ......................................40...
-
Page 6: Introduction
Thank you for purchasing this network camera! Please read this manual carefully before operating the unit and retain it for further reference. Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516. Main Features Built-in PoE (Power over Ethernet) ... -
Page 7: Web Access And Login
2 Web Access and Login The IP camera settings can be accessed via a web browser through the LAN. Available web browser: IE (plug-in required)/ Firefox/Edge/Safari/Google Chrome It is recommended to use the latest version of these web browsers. The menu display and operation of the camera may be slightly different by using the browser with plug-in or without plug-in. Installing plug-in will display more functions of the camera. - Page 8 If this is the first time for you to log in, the password prompt may only change the admin password. To change ONVIF password, you either have to check the “Match Onvif Password” box (if available) or go to the the ONVIF section to change the password. (ConfigNetworkPorts/ConnectionsOnvif)
-
Page 9: Live View
3 Live View The window below will be shown after logging in. The following table describes the icons on the live view interface Icon Description Icon Description Original size of resolution Rule information display Fit (correct scale) SD card recording indicator Auto (fill the window) Abnormal color indicator Full screen (show video only) -
Page 10: Camera Configuration
4 Camera Configuration Press the “Setup” button to go to the configuration interface. Note: Wherever applicable, click the “Save” button to save the settings. 4.1 System Configuration 4.1.1 System Information In the “System Information” interface, the system information of the device is listed. 4.1.2 Date and Time To set the time and date, go to SystemDate and Time. -
Page 11: Storage
selected to save to the local PC. 4.1.4 Storage Go to SystemStorage to go to the interface as shown below. SD Card Management When the card is used for the first time, click the “Format” button to format the SD card. All data on the card will be cleared by clicking this button. - Page 12 Weekly schedule Set the alarm time from Monday to Sunday for a single week. Each day is divided in one-hour increments. Green means scheduled. Blank means unscheduled. “Add”: Add the schedule for a special day. Drag the mouse to set the time on the timeline. “Erase”: Delete the schedule.
-
Page 13: Video Configuration
same as the schedule recording (See Schedule Recording). 4.2 Video Configuration Video Configuration includes Image Settings, Video/Audio Setup, OSD, Privacy Mask and Region of Interest. 4.2.1 Image Configuration In the Image Settings interface as shown below, various settings can be adjusted, such as brightness, contrast, hue, and saturation and so on. -
Page 14: Video / Audio Configuration
Antiflicker: Off: disables the anti-flicker function. This is used mostly in outdoor installations. 50Hz: reduces flicker in 50Hz lighting conditions. 60Hz: reduces flicker in 60Hz lighting conditions. White Balance: Adjust the color temperature according to the environment automatically. White Light Mode: Choose “Off”, “Auto”... -
Page 15: Osd Configuration
Three video streams can be adjustable. Resolution: The size of image. Frame rate: The higher the frame rate, the video is smoother. Bitrate type: CBR and VBR are optional. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. -
Page 16: Video Mask
Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the “Save” button to save the settings. 4.2.4 Video Mask Go to ImageVideo Mask interface as shown below. A maximum of 4 zones can be set up. To set up video mask: 1. -
Page 17: Roi Configuration
4.2.5 ROI Configuration Go to ImageROI Config interface as shown below. An area in the image can be set as a region of interest. This area will have a higher bitrate than the rest of the image, resulting in better image quality for the identified area. 1. -
Page 18: Exception Alarm
1. Check “Enable” check box to activate motion-based alarms. If unchecked, the camera will not send out any signals to trigger motion-based recording to the NVR or CMS, even if there is motion in the video. Alarm Holding Time: it refers to the interval time between the adjacent motion detections. For instance, if the alarm holding time is set to 20 seconds, once the camera detects a motion, it will go to alarm and would not detect any other motion in 20 seconds. -
Page 19: Alarm Server
SD Card Error When there are some errors in writing SD card, the corresponding alarms will be triggered. 1. Go to AlarmAnomalySD Card Error as shown below. 2. Click “Enable” and set the alarm holding time. 3. Set alarm trigger options. Trigger alarm out, Email and FTP. The setup steps are the same as motion detection. Please refer to motion detectionchapter for details. - Page 20 1. Enable object removal detection and then select the detection type. Enable Abandoned Object Detection: Alarms will be triggered if there are items left in the pre-defined area. Enable Missing Object Detection: Alarms will be triggered if there are items missing in the pre-defined area. Duration of Delay: it is the alarm delay time of the object left in the region (ranging from 10~3600s) or the alarm delay time of the object removed from the region (ranging from 3~3600s).
-
Page 21: Video Exception
5. Abandoned/missing object detection cannot determine the objects’ ownership. For instance, there is an unattended package in the station. Abandoned object detection can detect the package itself but it cannot determine to whom it belongs to. 6. Try not to enable object removal detection when light changes greatly in the scene. 7. -
Page 22: Line Crossing
4.4.3 Line Crossing Line Crossing: Alarms will be triggered if the target crosses the defined alarm lines. Go to EventLine Crossing interface as shown below. 1. Enable line crossing alarm and select the snapshot type and the detection target. Save Original Picture to SD Card: If it is enabled, the detected original pictures will be captured and saved to the SD card when the targets cross the alarm line. -
Page 23: Region Intrusion
Set the alarm line number and direction. Up to 4 lines can be added. Multiple lines cannot be added simultaneously. Direction：A<->B, A->B and A<-B optional. This indicates the direction of the intruder who crosses over the alarm line that would trigger the alarm. - Page 24 1. Enable region intrusion detection and select the snapshot type and the detection target. Save Original Picture to SD Card: If it is enabled, the detected original pictures will be captured and saved to the SD card when targets intrude into the pre-defined areas. Save Target Picture to SD Card: If it is enabled, the detected target cutout pictures will be captured and saved to the SD card when targets intrude into the pre-defined areas.
-
Page 25: Network Configuration
Set the alarm area number on the right side. Up to 4 alarm areas can be added. Click the “Draw Area” button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area). -
Page 26: Port
Either method of network connection can be used. If PPPoE is used to connect internet, the camera will get a dynamic WAN IP address. This IP address will change frequently. To be notified, the IP change notification function can be used. Click “IP Change Notification Config”... -
Page 27: Onvif
1. Check “Enable”. 2. Check the IP address and port of the transfer media server in the VMS. Then enable the auto report in the VMS when adding a new device. Next, enter the remaining information of the device in the VMS. After that, the system will automatically allot a device ID. -
Page 28: Snmp
4.5.6 SNMP To get camera status, parameters and alarm information and remotely manage the camera, the SNMP function can be used. Before using SNMP, please install an SNMP management tool and set the parameters of the SNMP, such as SNMP port, trap address. 1. -
Page 29: 802.1X
4.5.7 802.1x If it is enabled, the camera’s data can be protected. When the camera is connected to the network protected by the IEE802.1x, user authentication is needed. To use this function, the camera shall be connected to a switch supporting 802.1x protocol. The switch can be reckoned as an authentication system to identify the device in a local network. -
Page 30: Upnp
4.5.9 UPNP If this function is enabled, the camera can be quickly accessed through the LAN. Go to NetworkUPnP. Enable UPNP and then enter UPnP name. 4.5.10 RTMP You can access the third-party (like YouTube) to realize video live view through RTMP protocol. Go to Config... -
Page 31: Ftp
Login” is enabled). Server Address: The SMTP IP address or host name. Select the secure connection type at the “Secure Connection” pull-down list according to what’s required. SMTP Port: The SMTP port. Send Interval(S): The time interval of sending email. For example, if it is set to 60 seconds and multiple motion detection alarms are triggered within 60 seconds, they will be considered as only one alarm event and only one email will be sent. -
Page 32: Http Post
entering https://IP: https port via the web browser (eg. https://192.168.226.201:443). A private certificate can be created if users don’t want to use the default one. Click “Delete” to cancel the default certificate. Then the following interface will be displayed. * If there is a signed certificate, click “Browse” to select it and then click “Install” to install it. * Click “Create a private certificate”... -
Page 33: Qos
Server address: the IP address/domain name of the third-party platform. Server port: the server port of the third-party platform. After the above parameters are set, click “Save” to save the settings. Then the camera will automatically connect the third-party platform. The online state can be viewed in the above interface. After the camera is successfully connected, it will send the alarm information (HTTP format) to the third-party platform once the smart alarm is triggered. - Page 34 2. Enter user name in “User Name” textbox. 3. Enter letters or numbers in “Password” and “Confirm Password” textbox. Please set the password according to the requirement of the password security level (Go to SetupSecuritySecurity ManagementPassword Security interface to set the security level). 4.
-
Page 35: Online User
6. Click the “OK” button to save the settings. Note: To change the access level of a user, the user must be deleted and added again with the new access level. Delete user: 1. Select the user to be deleted in the user configuration list box. 2. -
Page 36: Maintenance Configuration
Logout time: Set the logout time as needed. For example: 3600s, you will be automatically logged out after 3600s and then you need to enter the username and password again to log in. Password Security Please set the password level and expiration time as needed. Password Level: Weak, Medium or Strong. -
Page 37: Reboot
4.7.2 Reboot Go to MaintenanceReboot. Click the “Reboot” button to reboot the device. Timed Reboot Setting: If necessary, the camera can be set up to reboot on a time interval. Enable “Time Settings”, set the date and time and then click the “Save”... -
Page 38: Search
5 Search 5.1 Image Search In the Setup interface, click Search to go to the interface as shown below. Images that are saved on the PC or SD card can be found here. Local Image Search 1. Choose “Picture”—“Local”. 2. - Page 39 Click to return to the previous interface. SD Card Image Search 1. Choose “Picture”—“SD Card”. 2. Set time: Select date and choose the start and end time. 3. Choose the alarm events at the bottom of the interface. 4. Click to search the images.
-
Page 40: Video Search
Icon Description Icon Description Close: Select an image and click Close all: Click this button to close all this button to close the image. images. Save: Click this button to select the Save all: Click this button to select the path for saving the image on the path for saving all pictures on the PC. -
Page 41: Sd Card Video Search
Icon Description Icon Description Play button. After pausing the video, Pause button click this button to continue playing. Stop button Speed down Speed up Watermark display Enable / disable audio; drag the slider to adjust the volume after enabling audio. 5.2.2 SD Card Video Search Click Search to go to the interface as shown below. - Page 42 4. Select the alarm events at the bottom of the interface. 5. Select mix stream (video and audio stream) or video stream as needed. 6. Double click on a file name in the list to start playback. The time table can be shown in 24H/12H/2H/1H format by clicking the corresponding buttons. Video clip and downloading 1.
- Page 43 Click “Set up” to set the storage directory of the video files. Click “Open” to play the video. Click “Clear List” to clear the downloading list. Click “Close” to close the downloading window.
-
Page 44: Appendix
Appendix Appendix 1 Troubleshooting IP Scanner does not show any device. Make sure that the PC that’s running IP Scanner is on the same local network as the devices. Internet Explorer cannot download ActiveX control. IE browser may be set up to block ActiveX. Follow the steps below. 1. - Page 45 Models: O4LB1/ O4LT1 Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
