Series 20 – Axial Piston Pumps
Service Manual and Repair Instructions

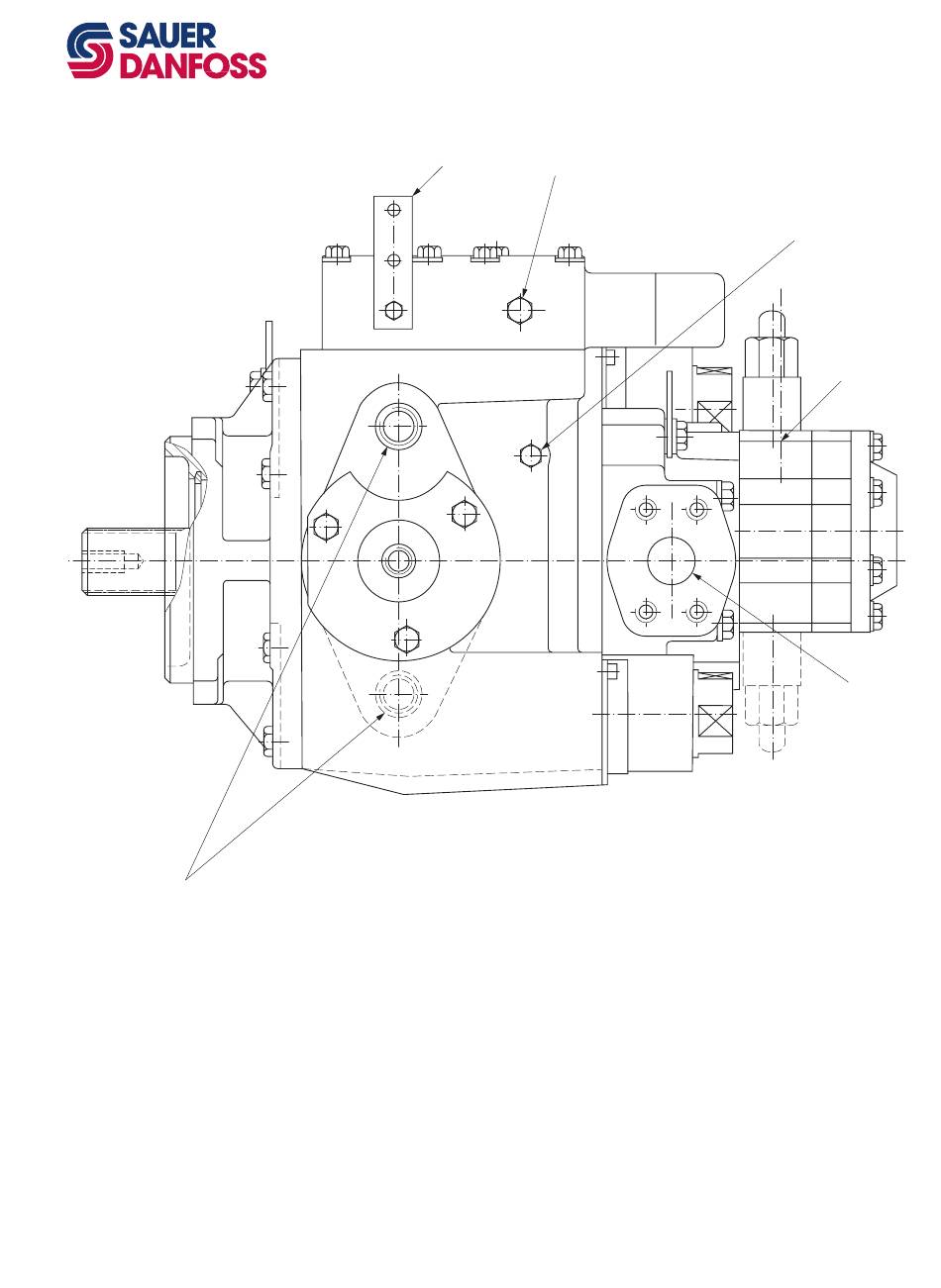

Start-up procedure
Case drain ports
DKMH.PS.315.B1.02 520L0535
Control handle
Gauge port -
servo cylinder pressure
(both side)
Gauge port "M":
Charge pressure
Port "S":
Suction port
(charge pump)
Port "A"+"B":
High pressure
P000 337E
