TROUBLE SHOOTING, GAUGE INSTALLATION AND INFORMATION
6
Series 20 – Axial Piston Pumps
Service Manual and Repair Instructions
Recommended Tools and Installation
A
Charge Pressure
B
System Pressure
C
Inlet Vacuum
D
Case Pressure
DKMH.PS.315.B1.02 520L0535

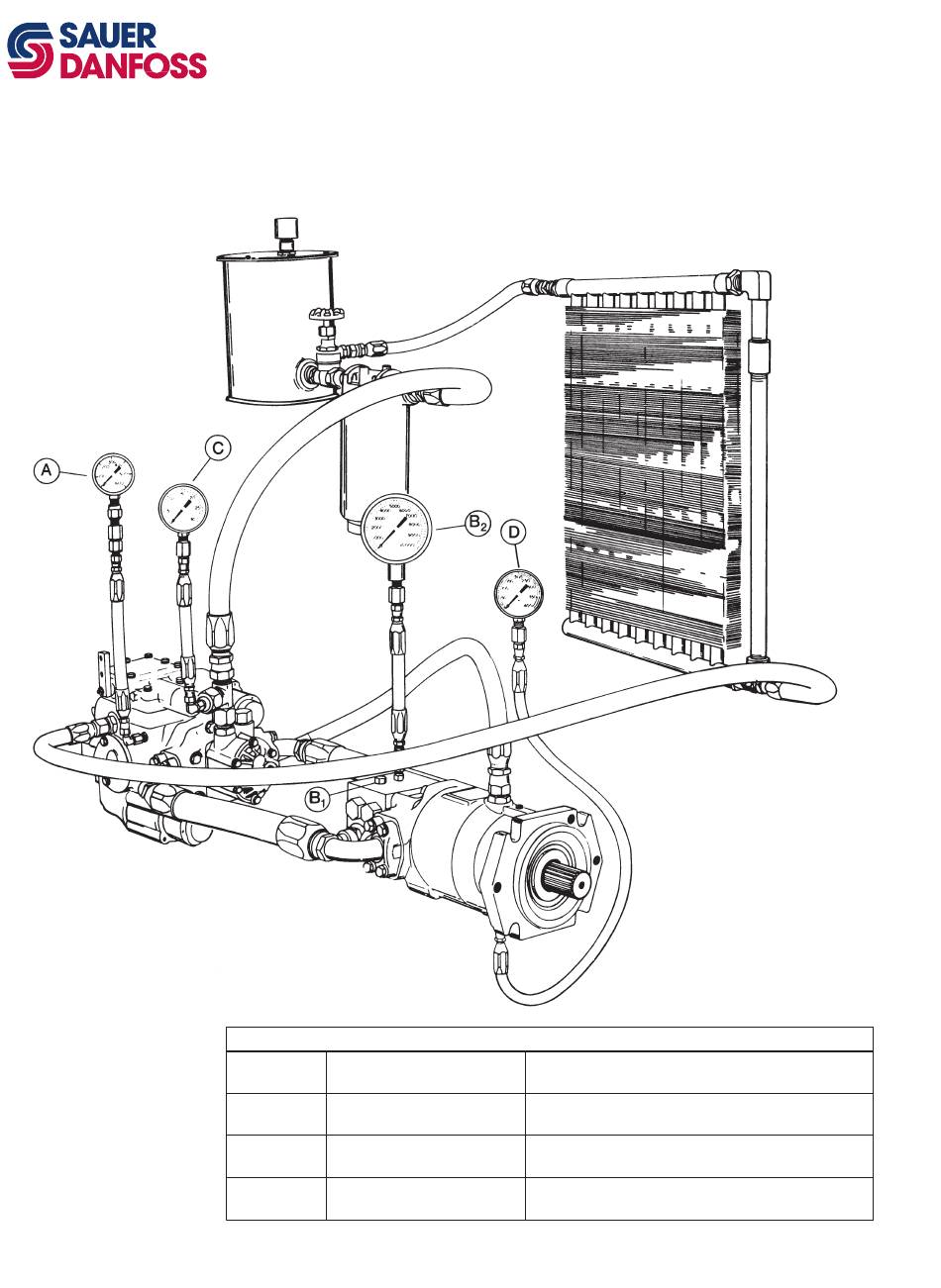

Gauge Information
60 bar [870 psi] - Gauge
7/16 - 20 UNF O-ring Fitting
600 [8700 psi] bar - Gauge
7/16 - 20 UNF O-ring Fitting
Vacuum gauge
Tree Into Inlet Line
8 bar [116 psi] - Gauge
Adapt to Bottom Drain Port
P000 341
