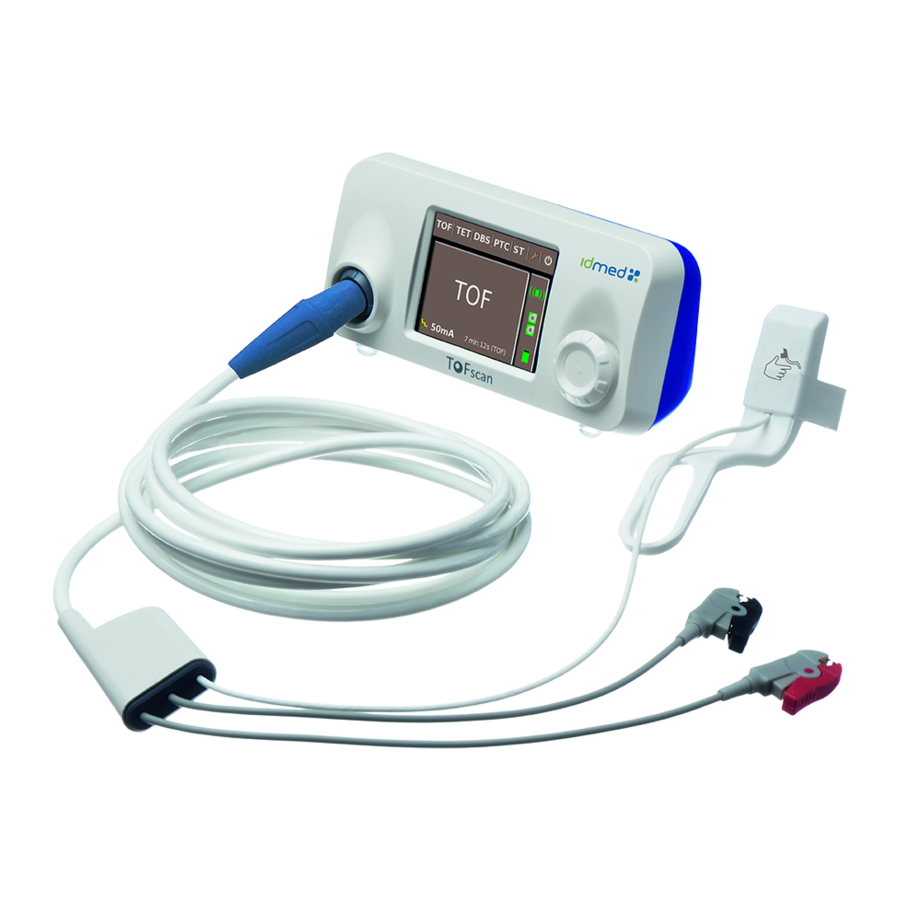

Idmed ToFscan Quick Start

A U T O M A T E D M O D E S
1

ATP (Automated TOF/PTC)

The ATP is an automated mode that enables the measurement of light,
medium, and deep block of the patient.
The ATP adapts automatically TOF and PTC measurements depending on the
patient level of neuromuscular block.
To find the ATP, go to the PTC menu and select ATP.
Press and hold the wheel button for 2 seconds to start the mode. There are no
other actions required thereafter.
To stop the ATP, press the wheel button and the device will automatically
interrupt the mode.
2
TOF / (TOF Auto)
•
•
•
•
Press the wheel to turn off the auto TOF
Always read the instruction manual before use.
ToFscan and IDMED are registered trademarks owned by IDMED SAS.
Ref: TOF-QS-V3-EN - Revision : 11/2023
w w w . i
Autopilot mode
recommended
in OR
Recommended
in PACU
and ICU
TOF ratio T4/T1 (%)
TOF count (x/4)
TOF graph.
Interval every 15s., 30s., 1min., 2min., 5min.
and 15min
