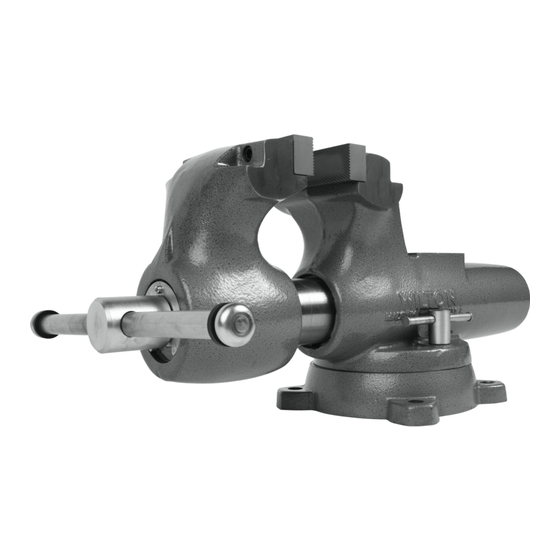

#28834, 8-inch Swivel Base Machinist Vise (model 800S)
Replacement parts
Item
Part No.
Description
1
2907050
Spindle Assembly Complete
2
2904540
Spindle Retainer (with 3 screws and #3)
3
---
Thrust Washer (not available separately)
4
2904940
Serrated Jaw Inserts with 4 screws
5
2904550
End Piece Assembly Complete, with 2 pins
6
2900090
Casing Nut with 2 pins
7
2905230
Lock Nut Assemblies
8
1011070
Inner Ring with Dowel Pin
9
1011080
Outer Ring only
10
2904580
Swivel Base Assembly Complete (includes #7,8,9)
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model
Number and Serial Number of your tool available when you call will allow us to serve you quickly and accurately. Some parts are shown for
reference only, and may not be available individually.
Note: See reverse side for important safety instructions.
WILTON
427 New Sanford Road
LaVergne, Tennessee 37086
Ph.: 800-274-6848
www.wiltontools.com
Specifications
Stock no.
Model no.
Jaw width
Jaw opening
Throat depth
Net weight
Copyright © 2018 WILTON, a Division of JPW Industries, Inc.
28834
800S
8 in. (203 mm)
12 in. (305 mm)
5-13/16 in. (148 mm)
238 lbs. (108 kg)
M-28834
Edition 1 09/2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wilton 800S
Summary of Contents for Wilton 800S
- Page 1 Note: See reverse side for important safety instructions. WILTON 427 New Sanford Road LaVergne, Tennessee 37086 M-28834 Ph.: 800-274-6848 Edition 1 09/2018 www.wiltontools.com Copyright © 2018 WILTON, a Division of JPW Industries, Inc.
- Page 2 Wilton reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. NOTE: Wilton is a division of JPW Industries, Inc. References in this document to Wilton also apply to JPW Industries, Inc., or any of its successors in interest to the Wilton brand.
- Page 3 8 3/4” 11/16” 5/8” 28833 600S 1010840 2 13/16” 3 3/4” 4 ” 3 1/8” 9 3/4” 11/16” 5/8” 28834 800S 1011080 3 1/2” 4 3/8” 4 1/2” 3 5/8” 11 3/8” 11/16” 5/8” 28840 1745XC 1011990XC 2 3/16” 2 7/8”...
