Wilton 745A Instructions

.

Replacement parts

Spindle and Spindle
Handle Retainer
Assembly w/ screw
#1 #2
21400-01 21400-02
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model
Number and Serial Number of your tool available when you call will allow us to serve you quickly and accurately. Some parts are shown for
reference only, and may not be available individually.

Specifications

Stock no.
Model no.
Jaw width (in.)
aMaximum opening (in.)
Throat depth (in.)
Pipe jaw capacity (in.)
Net weight, approx. (lbs.)
WILTON
427 New Sanford Road
LaVergne, Tennessee 37086
Ph.: 800-274-6848
www.wiltontools.com

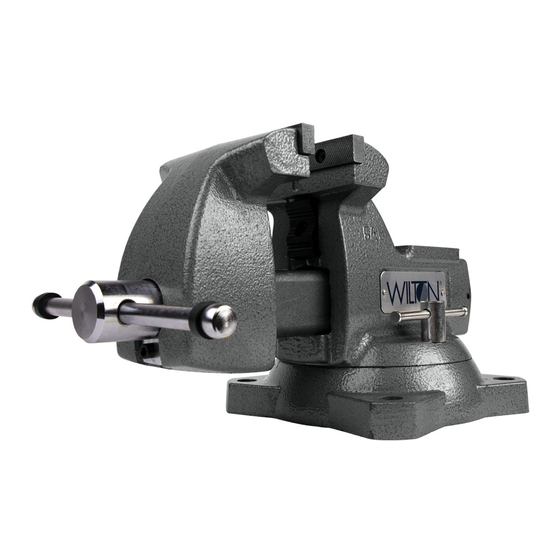

#21400, Mechanics' Vise (model 745A)
Jaw Insert
Assembly w/ Pipe Jaws w/
four screws two screws
#3 #4
21400-03 21400-04
21400
745A
5
5-1/4
3-3/4
1/4 – 2-1/2
52.8
Casing Nut
w/ two pins End Plug
#5 #6
NA
21400-05
Note: See reverse side for important safety instructions.
Copyright © 2014 WILTON, a Division of JPW Industries, Inc.
Lock Nut Locking Outer Ring
Assembly Pads (pair)
#7 #8
21400-06 9040020
Part No. M-21400
Swivel Base
Assembly,
only Complete
#9 #10
1011980 21400-07
Rev C 08/2018
