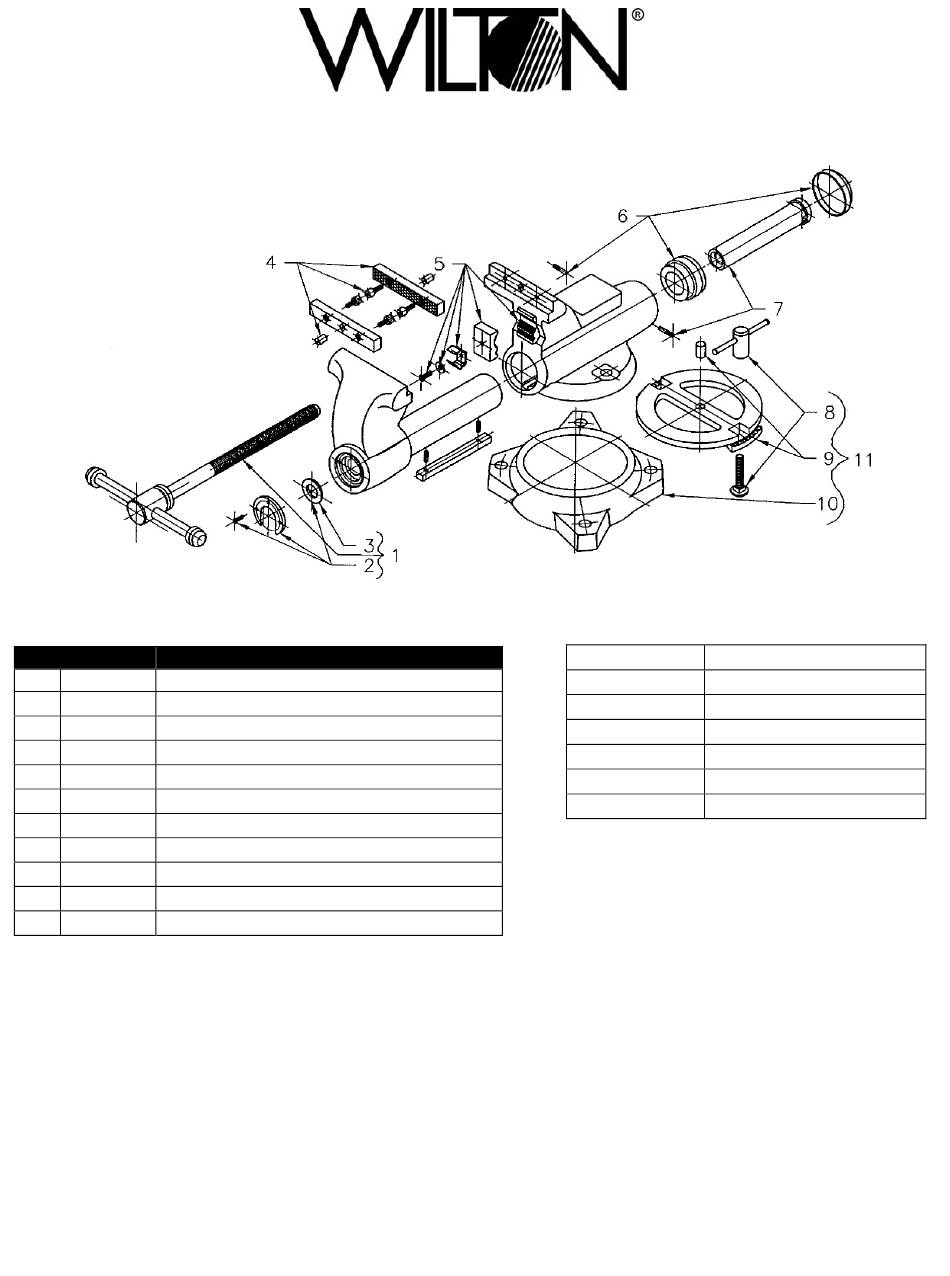

#28828, 6" Combo Pipe and Bench Vise, Swivel Base (model C-3)
Replacement parts
Item
Part No.
Description
1
2900180
Spindle Assembly Complete
2
2904500
Spindle Retainer (with 3 screws and #3)
3
---
Thrust Washer (not available separately)
4
2907370
Serrated Jaw Inserts with 4 screws
5
2907600
Pipe Jaw Insert Assemblies (pair)
6
2901130
End Piece Assembly Complete, with 2 pins
7
2901150
Casing Nut with 2 pins
8
2907410
Lock Nut Assemblies
9
1011070
Inner Ring with Dowel Pin
10
1011080
Outer Ring only
11
2907360
Swivel Base Assembly Complete (includes #8,9,10)
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model
Number and Serial Number of your tool available when you call will allow us to serve you quickly and accurately. Some parts are shown for
reference only, and may not be available individually.
Note: See reverse side for important safety instructions.
WILTON
427 New Sanford Road
LaVergne, Tennessee 37086
Ph.: 800-274-6848
www.wiltontools.com
Specifications
Stock no.
Model no.
Jaw width
Maximum opening
Throat depth
Pipe jaw capacity
Net weight
Copyright © 2018 WILTON, a Division of JPW Industries, Inc.
28828
C-3
6 in. (153 mm)
9 in. (229 mm)
6-5/8 in. (168 mm)
1/4 to 6 in. (6.4 to 153 mm)
204 lbs. (92.5 kg)
M-28828
Edition 1 09/2018
