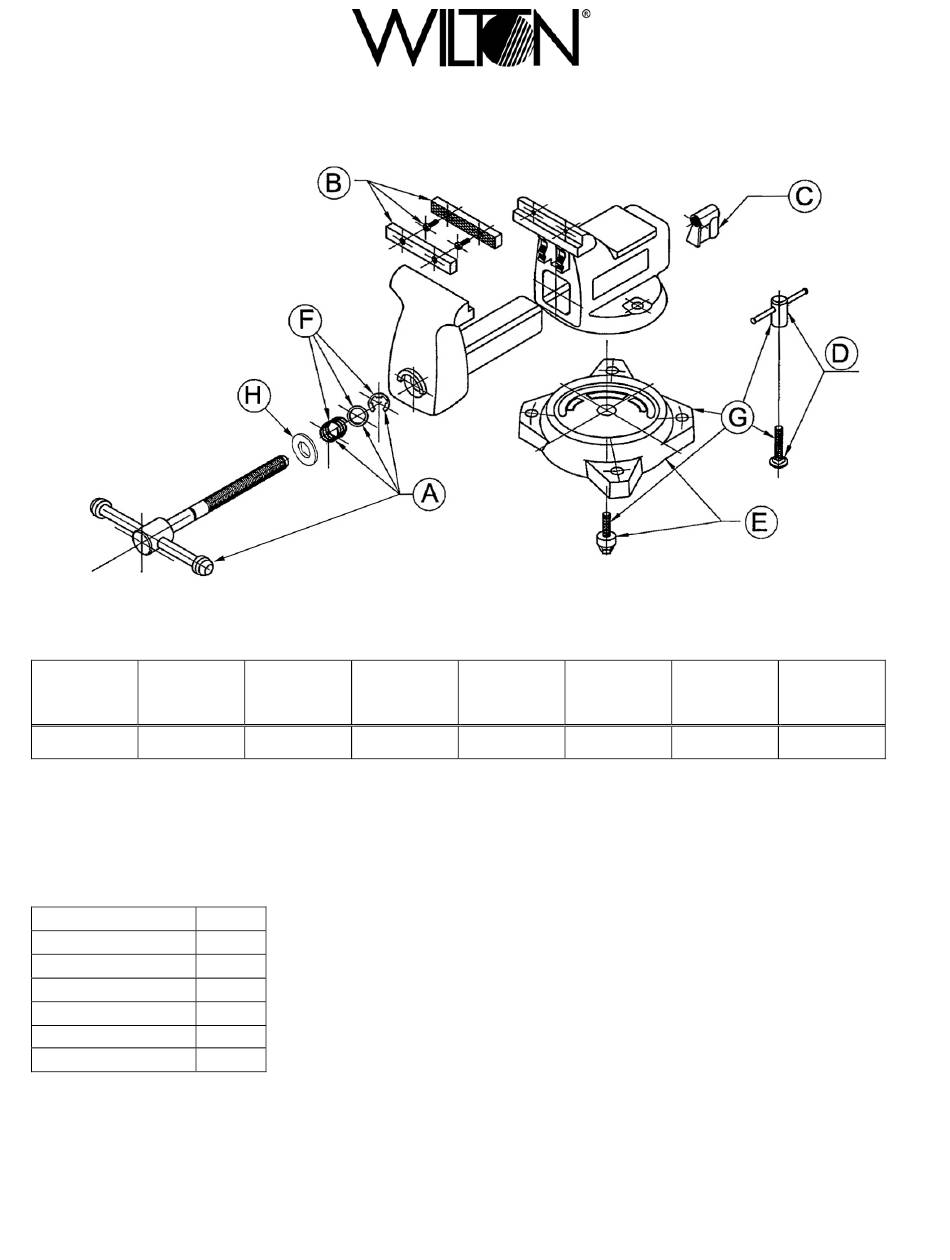

Replacement parts
Spindle and
Serrated Jaw
Handle
Inserts
Assembly
w/Screws
A
B
2900570
11127S41
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model
Number and Serial Number of your tool available when you call will allow us to serve you quickly and accurately. Some parts are shown for
reference only, and may not be available individually.
Specifications
Stock no.
11127
Model no.
675
Jaw width (in.)
5-1/2
Jaw opening (in.)
5
Throat depth (in.)
3-1/4
Pipe jaw capacity (in.)
1/8–2-1/2
Shipping weight (lb)
29
WILTON
427 New Sanford Road
LaVergne, Tennessee 37086
Ph.: 800-274-6848
www.wiltontools.com

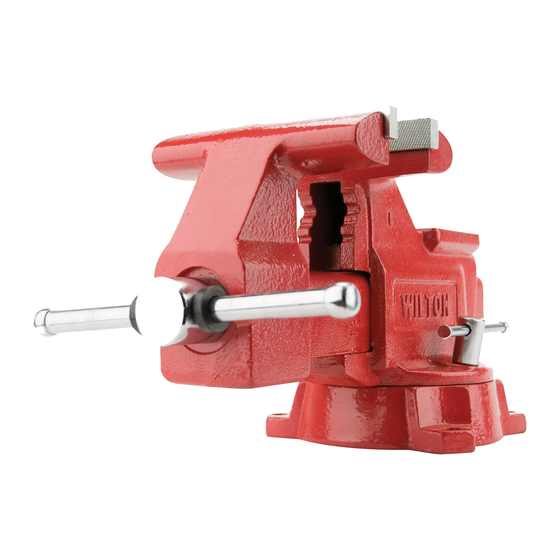

#11127, Utility Workshop Vise (model 675)
Lock Nut and
Spindle Nut
Bolt Assembly
C
D
11114-15
11104S51
Spring,
Outer Ring
Washer,Clip
w/Bolt
Assembly
E
F
2900680
11104S25
Note: See reverse side for important safety instructions.
Copyright © 2014 WILTON, a Division of JPW Industries, Inc.
Swivel Base
Thrust Bearing
Assembly
Washer
G
H
2900720
11127-1
Part No. M-11127
Rev. H 08/2018
