Wilton 676 Manual

Replacement parts
Spindle and Serrated Jaw
Handle Inserts
Assembly w/Screws
A B
87005-21 11128S41
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model
Number and Serial Number of your tool available when you call will allow us to serve you quickly and accurately. Some parts are shown for
reference only, and may not be available individually.
Specifications
11128B
Stock no.
Model no. 676
Jaw width (in.) 6-1/2
Jaw opening (in.) 5-1/2
Throat depth (in.) 3-13/16
Pipe jaw capacity (in.) 1/8–2-1/2
Shipping weight (lb) 43
WILTON
427 New Sanford Road
LaVergne, Tennessee 37086
Ph.: 800-274-6848
www.wiltontools.com

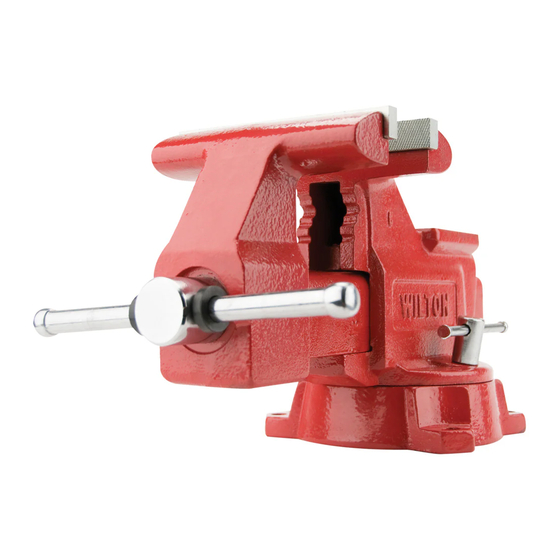

#11128B, Utility Workshop Vise (model 676)
Lock Nut and
Spindle Nut Bolt Assembly
C D
11115-15 11104S51
Spring,
Outer Ring Washer,Clip
w/ Bolt Assembly
E F
2900690GN 11104S25
Note: See reverse side for important safety instructions.
Copyright © 2017 WILTON, a Division of JPW Industries, Inc.
Swivel Base Thrust Bearing
Assembly Washer
G H
2900730GN 11128-1
Part No. M-11128B
Rev. B 08/2018
