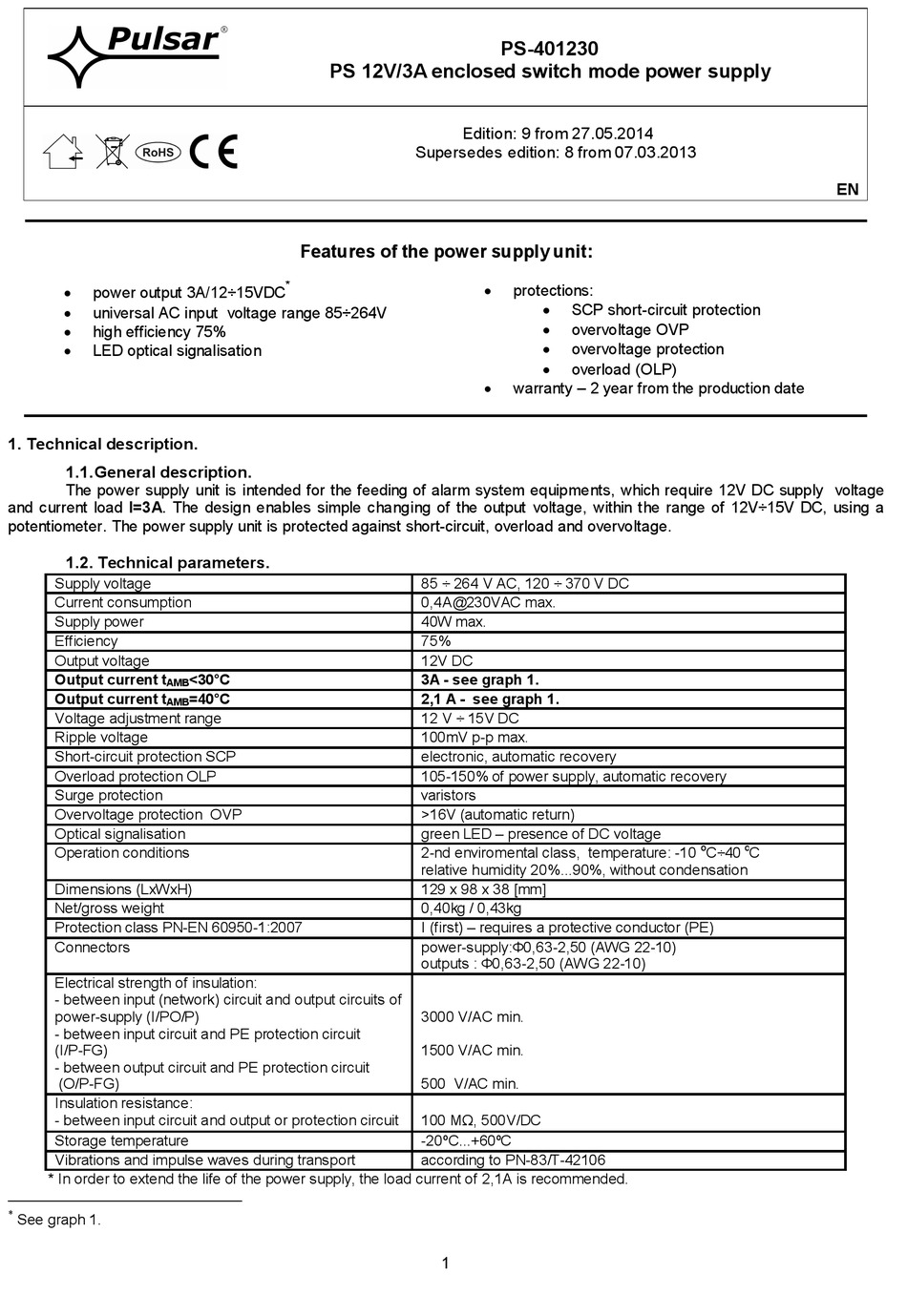

Pulsar PS-401230 Quick Start Manual

 power output 3A/12÷15VDC
universal AC input voltage range 85÷264V

high efficiency 75%

LED optical signalisation


1. Technical description.

1.1. General description.

The power supply unit is intended for the feeding of alarm system equipments, which require 12V DC supply voltage
and current load I=3A. The design enables simple changing of the output voltage, within the range of 12V÷15V DC, using a
potentiometer. The power supply unit is protected against short-circuit, overload and overvoltage.

1.2. Technical parameters.

Supply voltage
Current consumption
Supply power
Efficiency
Output voltage
Output current t
AMB
Output current t
AMB
Voltage adjustment range
Ripple voltage
Short-circuit protection SCP
Overload protection OLP
Surge protection
Overvoltage protection OVP
Optical signalisation
Operation conditions
Dimensions (LxWxH)
Net/gross weight
Protection class PN-EN 60950-1:2007
Connectors
Electrical strength of insulation:
- between input (network) circuit and output circuits of
power-supply (I/PO/P)
- between input circuit and PE protection circuit
(I/P-FG)
- between output circuit and PE protection circuit
(O/P-FG)
Insulation resistance:
- between input circuit and output or protection circuit
Storage temperature
Vibrations and impulse waves during transport
* In order to extend the life of the power supply, the load current of 2,1A is recommended.
*
See graph 1.
PS 12V/3A enclosed switch mode power supply
Features of the power supply unit:
*
<30°C
=40°C
PS-401230
Edition: 9 from 27.05.2014
Supersedes edition: 8 from 07.03.2013
protections:

 SCP short-circuit protection
 overvoltage OVP
 overvoltage protection
 overload (OLP)
warranty – 2 year from the production date

85 ÷ 264 V AC, 120 ÷ 370 V DC
0,4A@230VAC max.
40W max.
75%
12V DC
3A - see graph 1.
2,1 A - see graph 1.
12 V ÷ 15V DC
100mV p-p max.
electronic, automatic recovery
105-150% of power supply, automatic recovery
varistors
>16V (automatic return)
green LED – presence of DC voltage
2-nd enviromental class, temperature: -10
relative humidity 20%...90%, without condensation
129 x 98 x 38 [mm]
0,40kg / 0,43kg
I (first) – requires a protective conductor (PE)
power-supply:Φ0,63-2,50 (AWG 22-10)
outputs : Φ0,63-2,50 (AWG 22-10)
3000 V/AC min.
1500 V/AC min.
500 V/AC min.
100 MΩ, 500V/DC
-20ºC...+60ºC
according to PN-83/T-42106
1
EN
o o
C÷40 C
