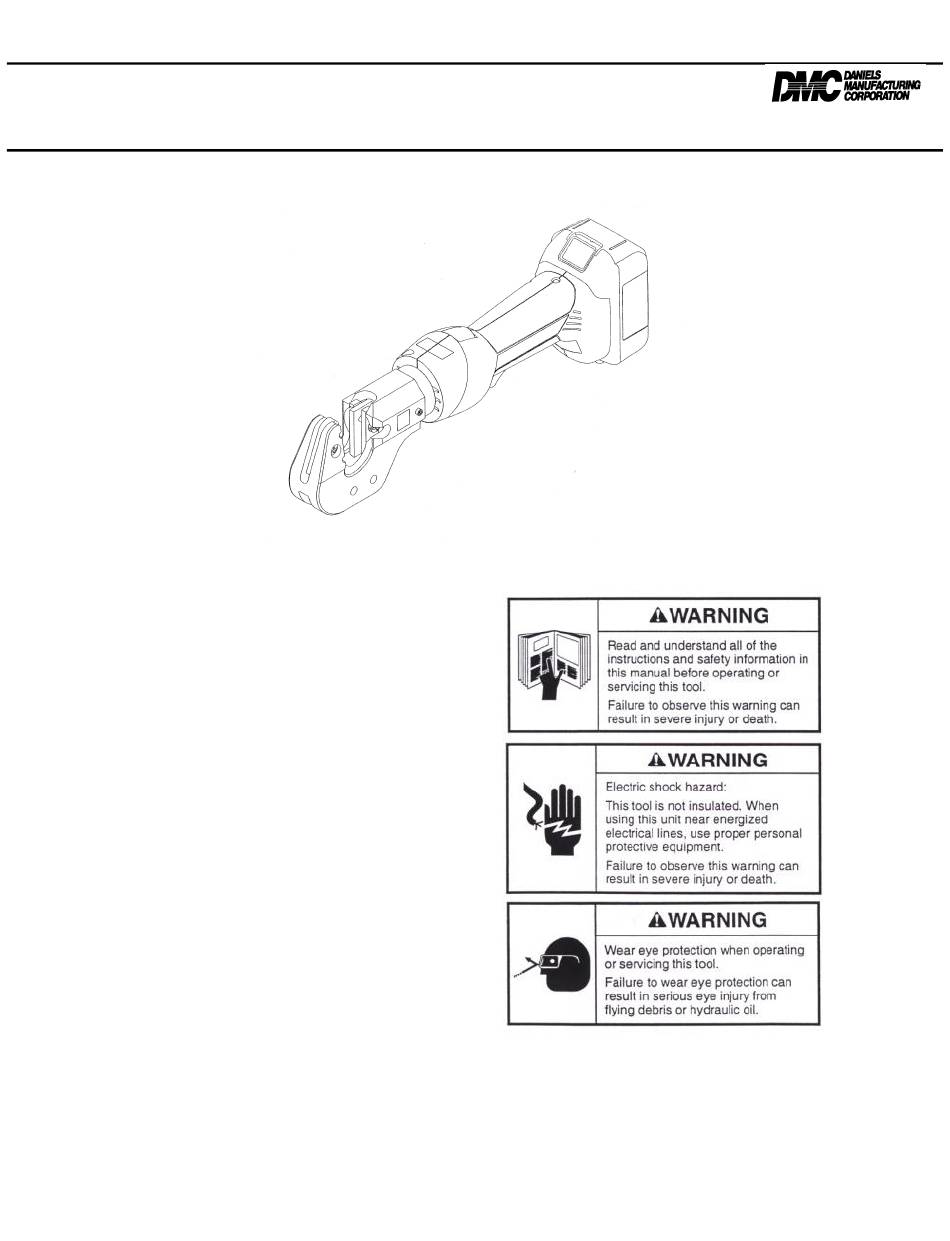

BATTERY POWERED CRIMP TOOL
DATASHEET
Description
The DCTE4B Battery Powered Crimp Tool is a hand held, self
contained crimp tool intended to crimp copper and
aluminum cable with DMC DCT4 dies.
Safety
Safety is essential in the use and maintenance of DMC tools
and equipment. This manual and any markings on the tool
provide information for avoiding hazards and unsafe
practices related to the use of this tool. Observe all of the
safety information provided.
Purpose of this Manual
This manual is intended to familiarize all personnel with the
safe operation and maintenance procedures for the following
DMC tool:
DCTE4B Battery Powered Crimp Tool
Keep this manual available to all personnel. Replacement
manuals are available upon request at no charge.
All specifications are nominal and may change as
design improvements occur. DMC shall not be liable
for damages resulting from misapplication or misuse
of its products.
KEEP THIS MANUAL
________________________________________________________________________________________________
DCTE4B-DS
©2010 DANIELS MANUFACTURING CORP., ALL RIGHTS RESERVED
Page 1 of 6
REV. B
6/20/2014
Daniels Manufacturing Corporation
526 Thorpe Road, Orlando, FL32824 USA
Phone: 407-855-6161 Fax: 407-855-6884 Email: DMC@dmctools.com
