HCE136B

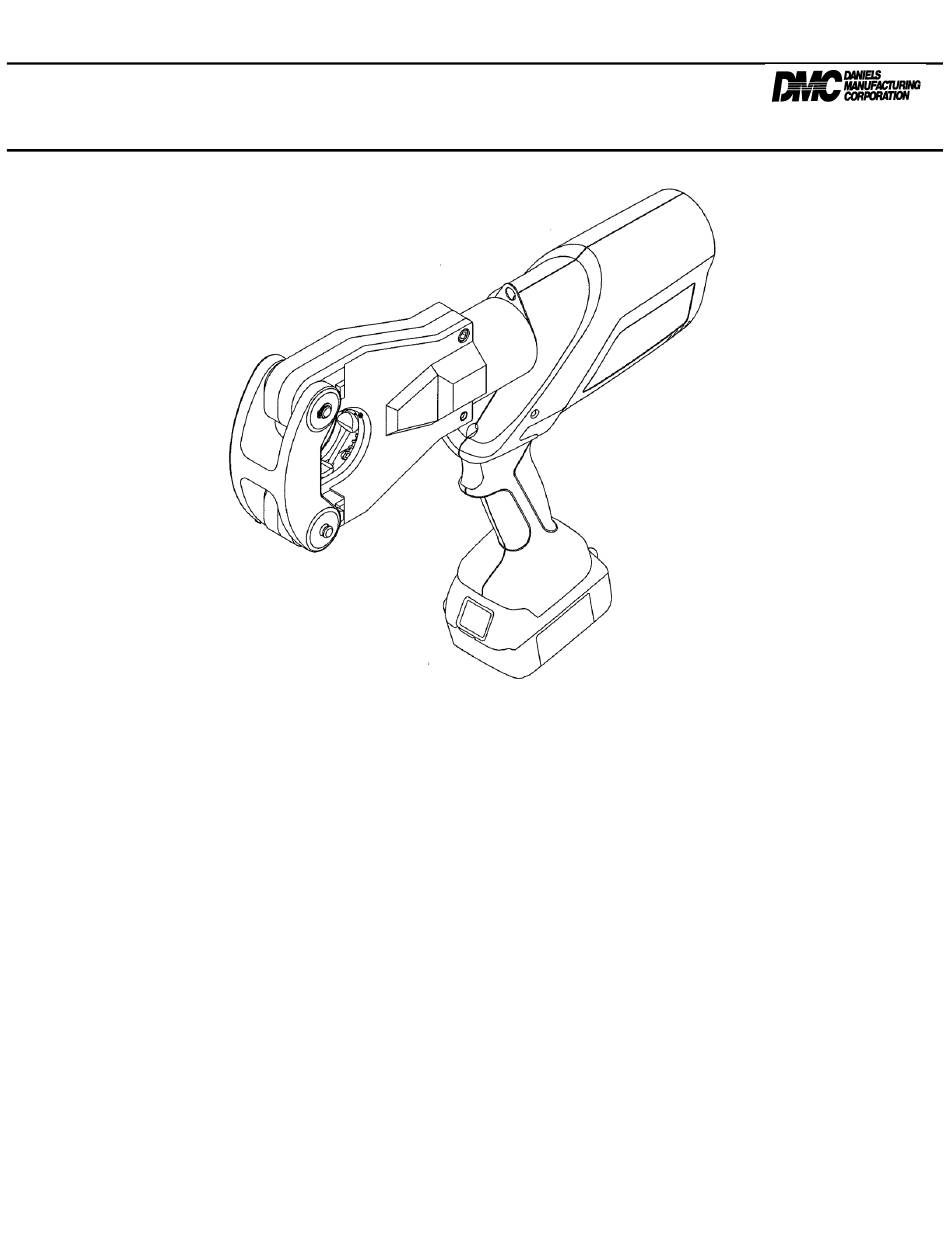

Battery POWERED CRIMP TOOL
Description
The HCE136B Battery Powered Crimp Tool is a hand held,
self contained crimp tool intended to crimp copper and
aluminum lug terminals & splices.
Safety
Safety is essential in the use and maintenance of DMC tools
and equipment. This manual and any markings on the tool
provide information for avoiding hazards and unsafe practices
related to the use of this tool. Observe all of the safety
information provided.
Purpose of this Manual
This manual is intended to familiarize all personnel with the
safe operation and maintenance procedures for the following
DMC tool:
HCE136B Battery Powered Crimp Tool
Keep this manual available to all personnel. Replacement
manuals are available upon request at no charge.
________________________________________________________________________________________________
HCE136B-DS
©2012 Daniels Manufacturing Corp., All Rights Reserved
Daniels Manufacturing Corporation
526 Thorpe Road, Orlando, FL 32824 USA
Phone: 407-855-6161 Fax: 407-855-6884 Email: DMC@dmctools.com
All specifications are nominal and may change as
design improvements occur. DMC shall not be liable
for damages resulting from misapplication or misuse
of its products.
KEEP THIS MANUAL
Page 1 of 6
REV. C
DATASHEET
6/20/2014
