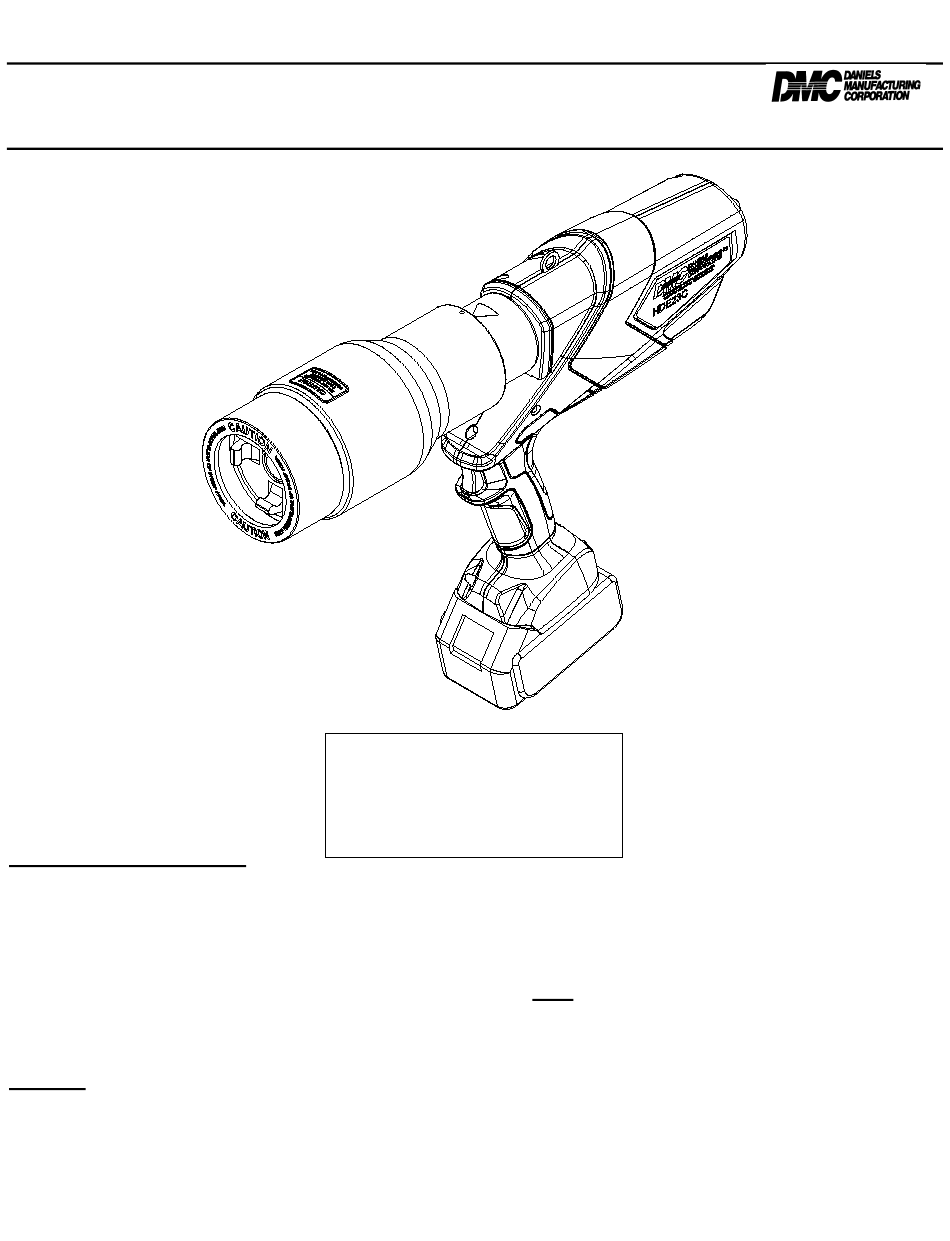

HDE23C
BATTERY ELECTRIC HYDRAULIC CRIMP TOOL
GENERAL INFORMATION
1. The DMC HDE23C is a heavy duty battery electric operated hydraulic crimp tool, designed to produce
four indent crimps on M39029 and similar contacts, sizes 8 thru 4/0 AWG. Various sizes and types of
contacts are accommodated by changing indenter die assemblies and locators.
2. This tool is a battery electric operated hydraulic equivalent to DMC tool part number WA23
(M22520/23-01) Heavy Duty Pneumatic Crimp Tool. It accepts all die assemblies and locators
designed for part number WA23. However this tool is NOT Mil Qualified at the time of this writing.
3. The tool's hydraulic pump is filled with biodegradable hydraulic fluid at the factory and does not need
to be bled or primed.
SAFETY
1. Safety is essential in the use and maintenance of DMC tools and equipment. This datasheet and
markings on the tool provide information for avoiding hazards and unsafe practices related to the use
of this tool. Observe all of the safety information provided.
________________________________________________________________________________________________
HDE23C-DS
©2021 Daniels Manufacturing Corporation
SEE PAGE 11 FOR
IMPORTANT INFORMATION
REGARDING LIMITED
WARRANTY AND LIMITATION
OF LIABILITY
Page 1 of 11
DATASHEET
REV. A
10/12/2021
Advertisement
Related Manuals for DMC HDE23C
Summary of Contents for DMC HDE23C
- Page 1 OF LIABILITY GENERAL INFORMATION 1. The DMC HDE23C is a heavy duty battery electric operated hydraulic crimp tool, designed to produce four indent crimps on M39029 and similar contacts, sizes 8 thru 4/0 AWG. Various sizes and types of contacts are accommodated by changing indenter die assemblies and locators.
-
Page 2: Specifications
HDE23C BATTERY ELECTRIC HYDRAULIC CRIMP TOOL DATASHEET 1. LED Work Light (White) 2. Crimp Tool Head 3. Lanyard/Tool Balancer Attachment Point 4. Crimp Tool Housing 5. Die Retract Button 6. LED Indicator (Red) 7. Li-ion Battery 8. Tool Trigger SPECIFICATIONS... - Page 3 HDE23C BATTERY ELECTRIC HYDRAULIC CRIMP TOOL DATASHEET Figure 1 Figure 2 Figure3 ________________________________________________________________________________________________ HDE23C-DS ©2021 Daniels Manufacturing Corporation Page 3 of 11 REV. A 10/12/2021...
- Page 4 HDE23C BATTERY ELECTRIC HYDRAULIC CRIMP TOOL DATASHEET TOOL SET UP INSTALLATION OF LOCATOR 1. Unscrew the red cap and remove die assembly, if installed. Insert the locator in the center hole, See Figure 1. 2. Verify that the flange on the locator is seated in the counter bore, and the notch on the flange, See Figure 2, is aligned with the locator alignment pin, See Figure 3.
- Page 5 1. The GO and NO-GO dimensions are marked on the face of each die assembly. The appropriate gage pins are available from DMC. 2. To check the die closure of the installed die assembly, press the tool trigger until the tool brings the indenters to the full travel (Closed) position but not to full pressure.
- Page 6 HDE23C BATTERY ELECTRIC HYDRAULIC CRIMP TOOL DATASHEET Battery Charger Operating Instructions Operating Environment The charger is designed for use in dry areas. All ventilation slots must be kept free of debris. If possible, keep away from heat sources and out of direct sunlight as ambient temperatures in excess of 95°F (35°C) may increase charging times significantly.
- Page 7 Flashing indicates trouble with the cooling fan system. Ensure that all cooling vents, and the battery connections are free of dust or debris. If flashing continues, return the unit to DMC for repair. Continuous illumination indicates that a conditioning charge is occurring. This happens when the battery being charged is at either a very low or very high temperature.
- Page 8 Battery charge is low, Charge for 20 seconds after a tool cycle Battery Red service LED flashes for 20 seconds Return tool to DMC for •••• at rate of 2Hz after a tool cycle Maintenance Service Red service LED flashes for 20 seconds Unit is too hot, let cool for 15min •••••••...
- Page 9 HDE23C BATTERY ELECTRIC HYDRAULIC CRIMP TOOL DATASHEET The App can be downloaded at: Tool Informational Display When a battery is installed onto the tool, the following information can be accessed. ________________________________________________________________________________________________ HDE23C-DS ©2021 Daniels Manufacturing Corporation Page 9 of 11 REV.
- Page 10 HDE23C BATTERY ELECTRIC HYDRAULIC CRIMP TOOL DATASHEET 1. Install a charged battery onto the tool. 2. Press the tool trigger to activate the display. Any applicable error codes will be display. The 17 possible error codes are listed below. If an error code is displayed, the tool’s red LED will also flash.
- Page 11 DMC’s obligation under this warranty is limited to the free correction or, at DMC’s option, the refund of the purchase price of any such product which proves defective in normal service within ninety (90) days after delivery to the first user, provided that the product is returned to DMC with all transportation charges prepaid and which shall appear to DMC’s satisfaction, after...
