E2S IS-CP4A-PT Instruction Manual page 3

2
1
E2S PART NO. DESCRIPTION
BExCP3A-BG BExCP3A-BG BREAK GLASS MANUAL CALL POINT
A
BExCP3A-PB PUSH BUTTON MANUAL CALL POINT
BExCP3A-PB
BExCP3A-PT TOOL RESET MANUAL CALL POINT
BExCP3A-PT
IS-CP4A-BG IS-CP4A-BG BREAK GLASS MANUAL CALL POINT
IS-CP4A-PB IS-CP4A-PB PUSH BUTTON MANUAL CALL POINT
IS-CP4A-PT TOOL RESET MANUAL CALL POINT
IS-CP4A-PT
B
C
D
E
F
DRAWING TO BS8888:2000 DRAWN
GEOMETRIC TOLERANCES TO ISO1101:1983
D.HOWGILL
LINEAR DIMENSIONAL TOLS
ANGULAR DIMENSIONAL TOLS
CHECKED
G
R.N.POTTS
STANDARDS
BExCP6A CALL POINTS
APPROVED
R.N.POTTS
3 4
DATA REFERENCE
1.24.070
1.24.080
1.24.090
1.14.010
1.14.020
1.14.030
Unit in 'Standby condition'
unoperated
Terminal +(2,3) & (6)
switch contacts closed
Terminals +(2,3) & -(4,5)
switch contacts open
SURFACE FINISH WEIGHT (Kg)
DATE
07-02-20
MATERIAL
DATE
07-02-20
ALTERNATIVE MATERIAL
DATE
07-02-20
5 6
Unit in 'Operated condition'
(broken glass / Button pushed in)
microswitch contacts
changed over
Terminal +(2,3) & (6)
switch contacts open
Terminals +(2,3) & -(4,5)
switch contacts closed
THIS DRAWING AND ANY INFORMATION OR DESCRIPTIVE
MATTER THEREIN IS COMMUNICATED IN CONFIDENCE AND
IS THE COPYRIGHT PROPERTY OF EUROPEAN SAFETY
SYSTEMS LTD. NEITHER THE WHOLE OR ANY EXTRACT MAY
BE DISCLOSED, LOANED, COPIED OR USED FOR
MANUFACTURING OR TENDERING PURPOSES WITHOUT THEIR
WRITTEN CONSENT.
EUROPEAN SAFETY SYSTEMS LTD.
C AS PER LATEST DATE OF ISSUE SHOWN ABOVE
7 8 9
ISSUE MOD No.
INTRODUCTION
1
D.A.H - 07-02-2020
ALL DIMENSIONS IN MM
2S
IF IN DOUBT, ASK -
DO NOT SCALE
warning signals

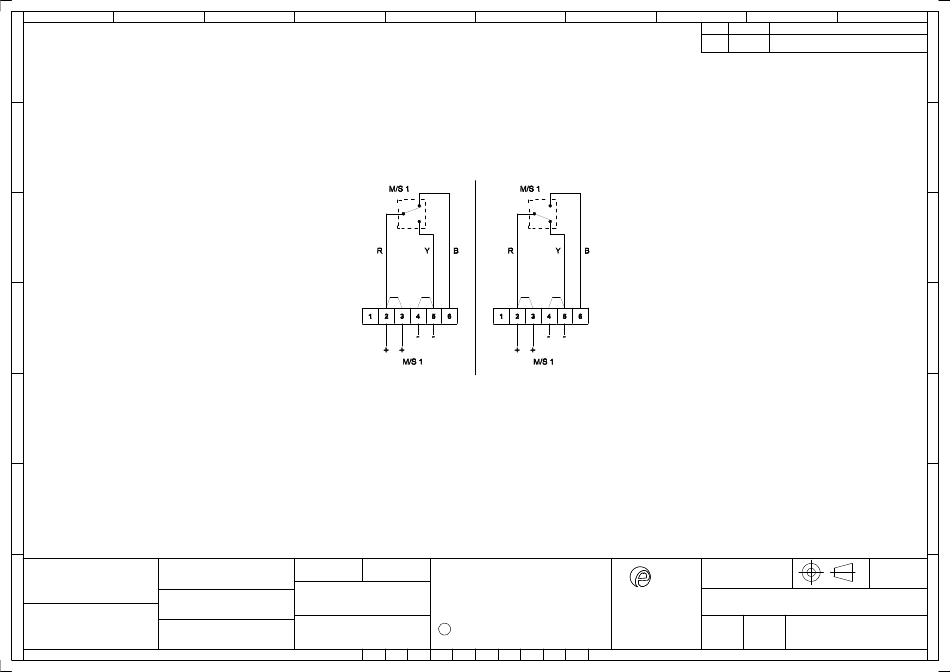

BExCP3A-BG/PB/PT MANUAL CALL
TITLE
EUROPEAN SAFETY SYSTEMS LTD
POINT WIRING SCHEMATIC
IMPRESS HOUSE
MANSELL ROAD
ACTON
DRAWING NUMBER
SCALE SHEET
LONDON W3 7QH
NTS 1 1
OF
WWW.E2S.COM
10
REASON - INITIAL - DATE
A
B
C
D
E
F
A3
G
D150-06-001
