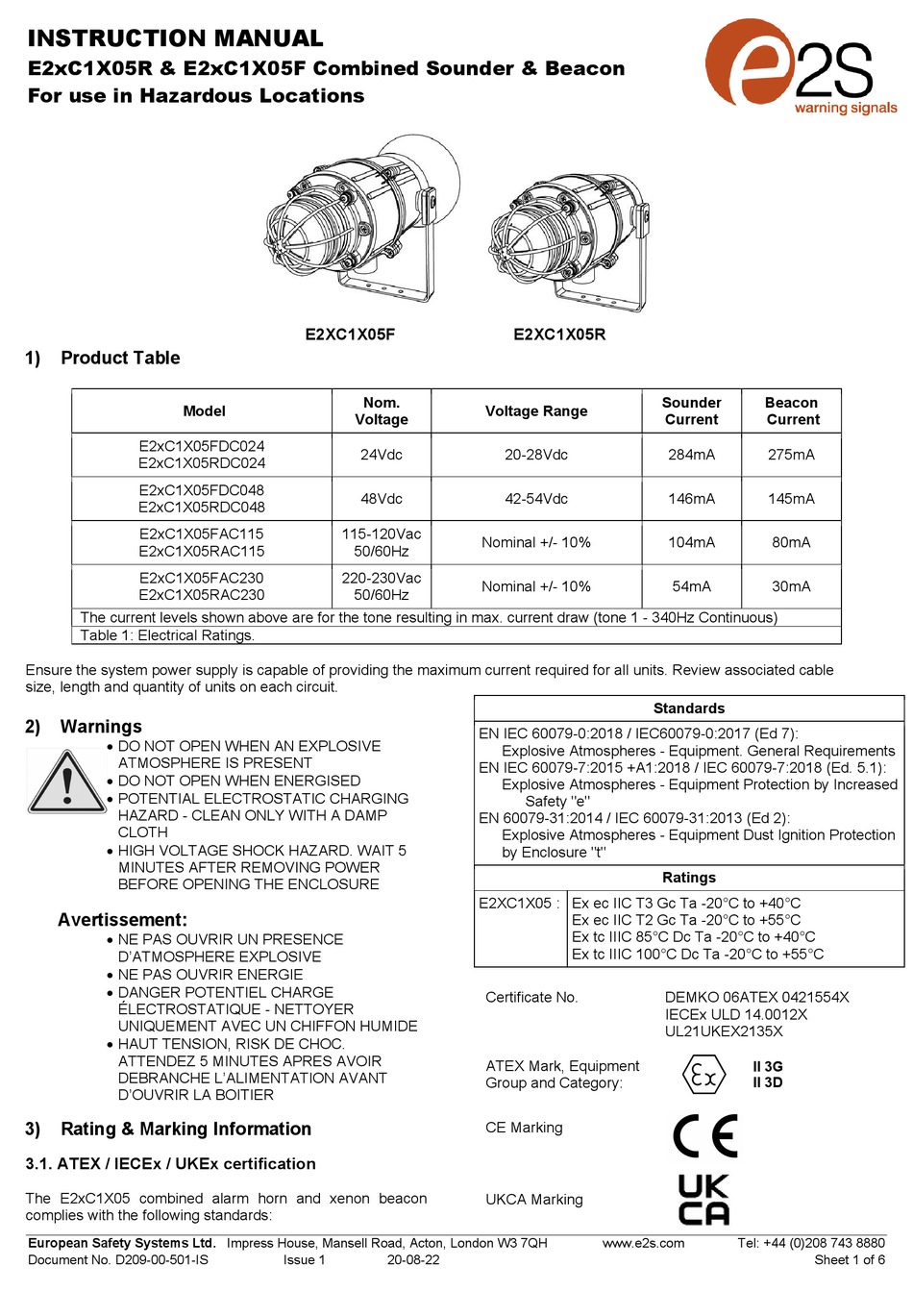

INSTRUCTION MANUAL
E2xC1X05R & E2xC1X05F Combined Sounder & Beacon
For use in Hazardous Locations
1) Product Table
Model
E2xC1X05FDC024
E2xC1X05RDC024
E2xC1X05FDC048
E2xC1X05RDC048
E2xC1X05FAC115
E2xC1X05RAC115
E2xC1X05FAC230
E2xC1X05RAC230
The current levels shown above are for the tone resulting in max. current draw (tone 1 - 340Hz Continuous)
Table 1: Electrical Ratings.
Ensure the system power supply is capable of providing the maximum current required for all units. Review associated cable
size, length and quantity of units on each circuit.
2) Warnings
 DO NOT OPEN WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
 DO NOT OPEN WHEN ENERGISED
 POTENTIAL ELECTROSTATIC CHARGING
HAZARD - CLEAN ONLY WITH A DAMP
CLOTH
 HIGH VOLTAGE SHOCK HAZARD. WAIT 5
MINUTES AFTER REMOVING POWER
BEFORE OPENING THE ENCLOSURE
Avertissement:
 NE PAS OUVRIR UN PRESENCE
D'ATMOSPHERE EXPLOSIVE
 NE PAS OUVRIR ENERGIE
 DANGER POTENTIEL CHARGE
ÉLECTROSTATIQUE - NETTOYER
UNIQUEMENT AVEC UN CHIFFON HUMIDE
 HAUT TENSION, RISK DE CHOC.
ATTENDEZ 5 MINUTES APRES AVOIR
DEBRANCHE L'ALIMENTATION AVANT
D'OUVRIR LA BOITIER
3) Rating & Marking Information
3.1. ATEX / IECEx / UKEx certification
The E2xC1X05 combined alarm horn and xenon beacon
complies with the following standards:
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D209-00-501-IS
E2XC1X05F
Nom.
Voltage
24Vdc
48Vdc
115-120Vac
50/60Hz
220-230Vac
50/60Hz
Issue 1 20-08-22
E2XC1X05R
Voltage Range
20-28Vdc
42-54Vdc
Nominal +/- 10%
Nominal +/- 10%
EN IEC 60079-0:2018 / IEC60079-0:2017 (Ed 7):
Explosive Atmospheres - Equipment. General Requirements
EN IEC 60079-7:2015 +A1:2018 / IEC 60079-7:2018 (Ed. 5.1):
Explosive Atmospheres - Equipment Protection by Increased
Safety "e"
EN 60079-31:2014 / IEC 60079-31:2013 (Ed 2):
Explosive Atmospheres - Equipment Dust Ignition Protection
by Enclosure "t"
E2XC1X05 : Ex ec IIC T3 Gc Ta -20°C to +40°C
Ex ec IIC T2 Gc Ta -20°C to +55°C
Ex tc IIIC 85°C Dc Ta -20°C to +40°C
Ex tc IIIC 100°C Dc Ta -20°C to +55°C
Certificate No.
ATEX Mark, Equipment
Group and Category:
CE Marking
UKCA Marking
www.e2s.com
Sounder Beacon
Current Current
284mA 275mA
146mA 145mA
104mA 80mA
54mA 30mA
Standards
Ratings
DEMKO 06ATEX 0421554X
IECEx ULD 14.0012X
UL21UKEX2135X
II 3G
II 3D
Tel: +44 (0)208 743 8880
Sheet 1 of 6
