Before You Begin
This installation guide provides instructions for
installing the DBA-1510P on your network. Additional
documentation is also available on the D-Link
support website.
D-Link Nuclias User Manual: For additional
information and instructions on how to configure
the device using the D-Link Nuclias cloud.
DBA-1510P User Manual: For additional
information and instructions on how to configure
the device using the web user interface.

Package Contents

This DBA-1510P package should include the
following items:
1 x DBA-1510P
1 x Power adapter (optional)*
1 x Mounting kit
If any of the above items are damaged or missing,
please contact your local D-Link reseller.
*If the power adapter is not included, it can be
purchased separately. Please contact your local
D-Link reseller.

Setup Preparation

Please ensure that the following items are readily
available before continuing the installation process:
An active D-Link Nuclias account.
An active Internet connection to connect to the
D-Link Nuclias cloud.
A valid device license. Contact your D-Link Nuclias
service provider for more information.

System Requirements

A PC or laptop with a working Ethernet adapter
or wireless interface.
Mozilla Firefox 52.0 or higher, Internet Explorer 11
or higher, Safari 10.1 or higher, Google Chrome
59 or higher.
OS X 10.8.5, Windows 7, Linux (Ubuntu 12).

Hardware Overview

LED Indicators
1

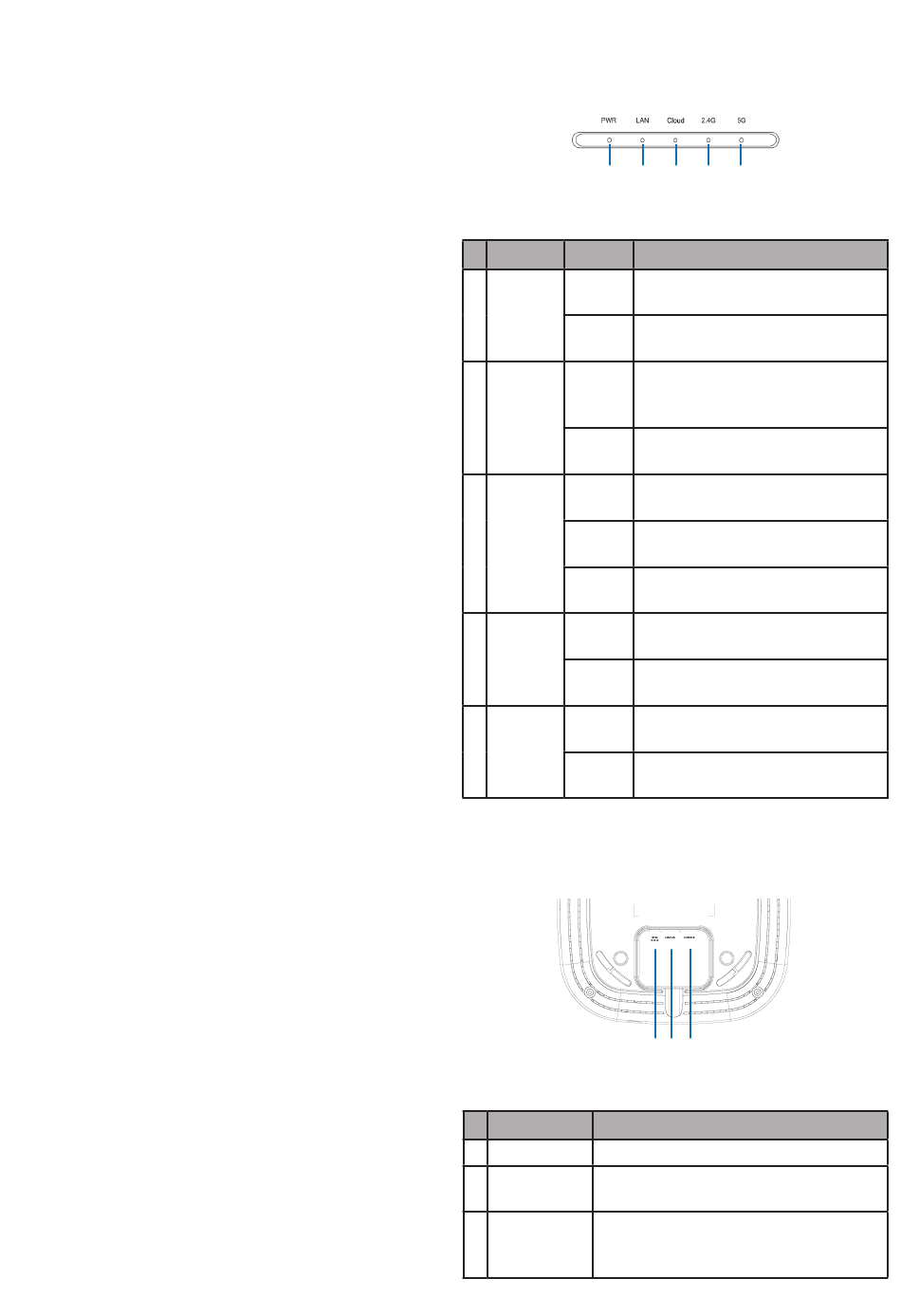

Figure 1: Front Panel LEDs
#
LED
Status
Solid
orange
1
PWR
Solid
green
Solid
green
2
LAN
Blinking
green
Solid
orange
Solid
3
Cloud
green
Solid
red
Solid
green
4
2.4G
Blinking
green
Solid
green
5
5G
Blinking
green
Table 1: LED Description
Rear Panel Connectors
Figure 2: Rear Panel Connectors
# Connector
1 Power input Input for the power adapter (optional).
PoE LAN
Gigabit Ethernet port for data and
2
port
Power over Ethernet (PoE) power.
RJ-45 port for connecting an RJ-45
3
Console
console cable (not included), used for
managing the DBA-1510P using CLI.
Table 2: Rear Interface Description
2
3
4
5
Description
The DBA-1510P is performing
the startup procedure.
The DBA-1510P is ready to use.
The DBA-1510P is connected
to the network or to a
local Ethernet device.
The DBA-1510P is transferring
data over the LAN.
The DBA-1510P is connecting
to the D-Link Nuclias cloud.
The DBA-1510P is currently
in cloud mode.
The DBA-1510P is not working
properly in cloud mode.
The 2.4 GHz wireless band is active.
The DBA-1510P is transferring
data over the 2.4 GHz band.
The 5 GHz wireless band is active.
The DBA-1510P is transferring
data over the 5 GHz band.
1
2
3
Description
