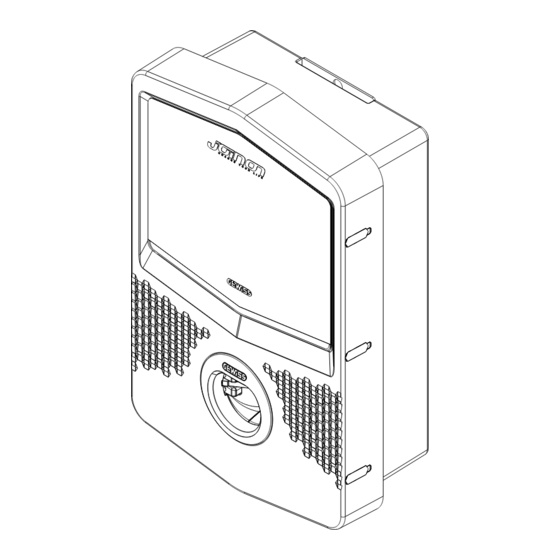

JOINON I-CON
EVO RANGE
User and installation manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JOINON I-CON EVO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gewiss JOINON I-CON EVO

Summary of Contents for Gewiss JOINON I-CON EVO

  • Page 1 JOINON I-CON EVO RANGE User and installation manual...

  • Page 2: Table Of Contents

    I-CON EVOLUTION CONTENT Introductions �������������������������������������������������������������������������������������������������� 4 Features ���������������������������������������������������������������������������������������������������������� 5 Applications ��������������������������������������������������������������������������������������������������� 5 1� I-CON User Interface����������������������������������������������������������������������������������� 6 1�1 I-CON Basic ����������������������������������������������������������������������������������������� 6 1�2 I-CON Premium ����������������������������������������������������������������������������������� 6 2� Specification ���������������������������������������������������������������������������������������������� 7 2�1 Product Specification ������������������������������������������������������������������������� 7 2�2 General and Specific countries requirements���������������������������������� 11 2�2�1 General requirements ��������������������������������������������������������������������...
  • Page 3 5�1�1 Internal overheating ���������������������������������������������������������������������� 28 5�2 My JOINON App ��������������������������������������������������������������������������������� 28 5�2�1 Sign up and Sign in ����������������������������������������������������������������������� 28 5�2�2 Digital commissioning - Create your home ���������������������������������� 29 5�2�3 Charging station pairing ���������������������������������������������������������������� 29 5�2�4 Charging station setup ������������������������������������������������������������������ 30 5�2�5 Off-Peak Hours ������������������������������������������������������������������������������...

  • Page 4: Introductions

    It is important to note that the information in this document is subject to change without notice. Please download the latest version from www.gewiss.com To get access to the features offered by I-CON, it is important to download the My JOINON app available in the Google and Apple stores.

  • Page 5: Features

    The document is the user manual for the following charge points I-CON BASIC DOMESTIC – SINGLE CP – I-CON code UP TO 22KW I-CON Basic Single CP T2S 7.4KW UK GWJ3402CK I-CON Basic Single CP T2S 22KW UK GWJ3404CK I-CON Basic Multi CP (w/o auth) T2S 7.4KW UK GWJ3502GK I-CON Basic Multi CP (w/o auth) T2S 22KW UK GWJ3504GK...

  • Page 6: 1� I-Con User Interface

    I-CON EVOLUTION 1. I-CON User Interface 1.1 I-CON Basic RFID reader (optional) LED Indication AC Connector T2 Socket o Tethered cable 1.2 I-CON Premium Matrix LED Display RFID reader (optional) LED Indication AC Connector T2 Socket o Tethered cable Notice: According to EN-17186 requirement, this document lays down harmonized identifiers for power supply for electric road vehicles.

  • Page 7: 2� Specification

    2. Specification 2.1 Product Specification GWJ3402CK – GWJ3404CK → I-CON BASIC DOMESTIC Model Name – SINGLE CP – UP TO 22KW 230 Vac (±15%) Voltage Rating 400 Vac (±15%) Max Input Current 32 A Max. Input Power 22 kVA INPUT Power Grid System TN / TT Frequency...
  • Page 8 I-CON EVOLUTION • 2014/53/EU • 2011/65/EU + 2015/863 Directive • Electromagnetic compatibility EMC classification: B • EN IEC 61851-1 • EN IEC 61851-21-2 • EN IEC 63000 • ETSI EN 301 489-3 V2.1.1 Regulation for EU • ETSI EN 301 489-17 V3.2.4 Standard •...
  • Page 9 GWJ3502GK – GWJ3504GK → I-CON BASIC Model Name DOMESTIC – MULTI CP – UP TO 22KW 230 Vac (±15%) Voltage Rating 400 Vac (±15%) Max Input Current 32 A Max. Input Power 22 kVA INPUT Power Grid System TN / TT Frequency 50/60 Hz Electrical Distribution...
  • Page 10 I-CON EVOLUTION • 2014/53/EU • 2011/65/EU + 2015/863 Directive • Electromagnetic compatibility EMC classification: B • EN IEC 61851-1 • EN IEC 61851-21-2 • EN IEC 63000 Regulation for EU • ETSI EN 301 489-3 V2.1.1 • ETSI EN 301 489-17 V3.2.4 Standard •...

  • Page 11: 2�2 General And Specific Countries Requirements

    2.2 General and Specific countries requirements 2�2�1 General requirements In case of short-circuit, the value of l2t at the EV socket-outlet of the Mode 3 charging station shall not exceed 75000 A2s In case of short-circuit, the value of l2t at the vehicle connector (case c) of the Mode 3 charging station shall not exceed 80000 2.3 I-CON code description The I-CON is available in different versions depending on the connector type,...

  • Page 12: 2�4 Led Indication And Operation Status

    I-CON EVOLUTION 2.4 LED Indication and Operation Status The charging station informs the customer of the status and which actions to perform through the use of RGB LEDs. Below the meaning of the various colours is explained. To get access to the features offered by I-CON, it is important to download the My JOINON app available in the Google and Apple stores.

  • Page 13: 2�5 Dimensions

    ai168310447716_Dimensionale.pdf 03/05/23 11:01 2.5 Dimensions Main Size of Charger:(Unit: mm) 137,5 Frontal and lateral view 37 3333 37 Bottom view...

  • Page 14: 3� Device Delivery And Storage

    3.2 Device Identification The serial number of the device identifies it unequivocally. In any communication with Gewiss, reference must be made to this number. The device serial number is indicated on the technical data label (on the right side of the front panel).

  • Page 15: 4� Installation Instruction

    • Cover the device with a protective breathable material to avoid condensation caused by environmental humidity. • Charging stations kept in a warehouse must not be subjected to climatic conditions other than those indicated below. Ambient storage conditions Minimum temperature -40°C Minimum temperature of the surrounding air -40°C...

  • Page 16: 4�2 Installation Area Requirements

    4.2 Installation area requirements I-CON will give the best of its functionalities if the installation area follows these rules. WARNING: GEWISS is not responsible for wrong installations that could cause damage to the product or EV connected to the charging station.
  • Page 17 1.Requirements for workplace conditions Set up suitable fencing to isolate the construction • area from outside Close and secure all entrances when the site is • unattended Hang warning notices nearby which show the • following information: warning icon and phone number of person in charge Install sufficient lighting fixtures •...
  • Page 18 I-CON EVOLUTION 4.Protection against high temperatures on the worksite Erect a sunshade or shed to shelter workers from • the heat and sun Set up cooling equipment, such as exhaust fans • Make water dispensers available • Provide suitable protective clothing such as •...
  • Page 19 7.For on-site workers Plan all work • Turn off the power (work with live parts • de-energized whenever possible) LOTO (Lock Out, Tag Out) • Live electrical work permit (input terminals with • HV after door open) Use personal protective equipment (PPE) •...

  • Page 20: 4�3 Grounding And Safety Requirement

    I-CON EVOLUTION 4.3 Grounding and Safety Requirement • The product must be connected to a grounded, metal, permanent wiring system. Connections shall comply with all applicable electrical codes. Recommend the ground resistance be less than 10mΩ. • Ensure no power is connected at all times when installing, servicing or maintaining the charger.

  • Page 21: 4�5 External Current Transformer To Install

    4.5 External Current Transformer to install The CTs are included in the charging station’s packaging. To enable the Dynamic operating mode on the charging station, the external CTs must be installed around the main protection device in the consumer unit. This enables the monitoring of the housing loads and external production of a PV (only by strictly observing the diagram below) and charging the EV with the remaining power.

  • Page 22: 4�6 Installation Procedure

    I-CON EVOLUTION 4.6 Installation Procedure 4�6�1 Opening the charging station STEP 1� 1. Open the casing as shown in the figure.

  • Page 23: 4�6�2 Wall Or Pole Installation

    4�6�2 Wall or pole installation For the installation of the device, one of the two following solutions can be selected: WALL INSTALLATION QUESTO DISEGNO TASSELLO? STEP 1� STEP 2� STEP 3� NOTE: The wall installation of I-CON must take into account that the T2 socket, or its cable holder of the tethered version, must be between 50 cm and 1,5 m above the ground.
  • Page 24 I-CON EVOLUTION POLE INSTALLATION STEP 1� STEP 2� WARNING: A suitable cover must be provided so that the product is protected from direct sun exposure during the hottest hours of the day. If the temperature of the electronics rises above the design limits, the product will first suffer power derating and may be subject to malfunctions not covered by warranty...

  • Page 25: 4�6�3 Roof Protection

    4�6�3 Roof protection When I-CON is installed on a wall or pole with a direct sun exposition, a suitable cover must be provided so that the product is protected from direct sun exposure during the hottest hours of the day. This cover must provide shade for the entire product at all times of the day.
  • Page 26 I-CON EVOLUTION METHOD 2� 1. Backplate entries on the back side STEP 1� 1. Wire the cables to the terminal block on the left electronic board Supply position 1 Supply position 2 (depend on I-CON code) (depend on I-CON code) 2.

  • Page 27: 4�7 Electrical Check - Earth Resistance

    4.7 Electrical check – Earth resistance When the installation is completed and the system is powered up, it’s mandatory performing an electrical check to avoid any problem in the charge session. For example: • The Earth’s resistance must be less than 10mΩ. •...

  • Page 28: 5�1 Further Special Features

    I-CON EVOLUTION 5.1 Further special features 5�1�1 Internal overheating I-CON can monitor the internal temperature to safeguard internal components. This analysis can influence the management of charging sessions and power output. If the internal temperature rises above 60°C, the charging power is reduced to the minimum power allowed by the standard (6A).

  • Page 29: 5�2�2 Digital Commissioning - Create Your Home

    5�2�2 Digital commissioning - Create your home After the sign-up-sign-in process, you can start the digital commissioning process creating your home and the areas within it. Areas will be used to insert the charging stations in the next step and improve usability.

  • Page 30: 5�2�4 Charging Station Setup

    I-CON EVOLUTION • Make sure to scan the right QRcode • Select the desired Wi-Fi network from the list (the networks shown are those identified by the charging station). • Insert the Wi-Fi password • Check the LEDs status to see if the connection was successful and the information shown on the APP 5�2�4 Charging station setup Parameter setting is only allowed to a certified installer.

  • Page 31: 5�2�5 Off-Peak Hours

    In this way, the charging station can monitor all the house loads and dynamically adapt the charge power avoiding a potential overload of the supply. This feature requires some parameters to be set by the installer. • ENABLE CT SENSORS= This enables the internal logic in the charging station •...
  • Page 32 I-CON EVOLUTION value up to the 1800s. The random delay is applied when: • When the charge session is started or stopped • When the charging station close the internal contactors and provide energy to the EV • When the charge session depends on the schedule •...

  • Page 33: 5�3 Dynamic Load Management For The Charge Session

    5.3 Dynamic Load Management For The Charge Session This section focuses on the DYNAMIC charging mode, describing the operation of the logic. Installation aspects of the CT accessories are well described in the respective user manuals (codes GWJ8037 and GWJ8038). These schemas describe where the CTs must be installed in the home layout In this scenario, the charging station, via the CTs, reads the whole house loads and the charging power will be managed autonomously by the charging station...

  • Page 34: 6� How To Charge Your Electric Vehicle

    I-CON EVOLUTION 6. How To Charge Your Electric Vehicle WARNING: Vehicle adaptors shall not be used to connect a vehicle connector to vehicle inlet. WARNING: Adaptors between the EV socket-outlet and the EV plug shall only be used if specifically designated and approved by the vehicle manufacturer or by the EV supply equipment manufacturer and by national requirements.

  • Page 35: 6�2 I-Con Multicp Without Rfid Reader

    This mode requires the execution of a process called 'digital commissioning' through the JOINON platform. After a few steps by GEWISS, the end user or designated contact person will be able to complete the required configuration and invite authorized users.

  • Page 36: 7�1 Ozev Requirements

    I-CON EVOLUTION 7.1 Ozev Requirements 7�1�1 Smart functionalities The I-CON has a dedicated chip for the Wi-Fi connection. In this way, the I-CON can connect to a communications network via a local Wi-Fi network. Through the My JOINON APP, the customer has control of the charge session. I-CON has a LED on the central part of the cover.

  • Page 37: 7�1�3� Loss Of Communications Network Access

    7�1�3� Loss of communications network access In case the I-CON is unable, temporarily, to connect to the communication network and the cloud solution, dedicated behaviours will be activated. The changes are: • The I-CON activates their Hotspot allowing the customer to connect directly to it through the APP.

  • Page 38: 7�1�6 Off-Peak Hours

    I-CON EVOLUTION 7�1�6 Off-peak hours By default, I-CON has a schedule to avoid charging during peak hours. The customer can delete or modify this configuration using the option in the My JOINON APP. 7�1�7 Random delay By default 600s random delay is set on I-CON as indicated in the previous section. The charging station has to apply a random delay during the charging process following the requirements of the “The Electric Vehicles (smart charge points) Regulation 2021”.

  • Page 39: 7�1�9 Fw Updates

    Firmware is provided via OTA and I-CON uses the network connection to download the files from a secure connection to the cloud provider. The files downloaded by I-CON are signed by GEWISS and I-CON verifies the signature to ensure full security.

  • Page 40: 8� Network Setting

    I-CON and in the user manual (each I-CON has dedicated credentials). The My JOINON APP will show only the Wi-Fi network The SSID is composed using the GEWISS CODE and the Wi-Fi MAC ADDRESS, for example: GWJ3004CK_70F754658FD8 The password is generated automatically and randomly.

  • Page 41: 9� Error Encoding And Troubleshooting

    9. Error encoding and troubleshooting 9.1 Error code list Here is the list of the error that I-CON can generate. # Error Error title Evse range Code I-ON The frontal door is open. The DOOR OPEN I-CON product is not secure I-ON The contractor is in a different CONTACTOR (T2) KO...
  • Page 42 I-CON EVOLUTION I-ON The check done by EVSE on EV DIODE FAULT I-CON the diode failed I-ON The EVSE detected a fault in PEN FAULT I-CON the PEN system ADC COMMUNICATION I-ON If an error occurs at the end of I-CON the internal ADC configuration FAULT...

  • Page 43: 9�2 Troubleshooting For The End User

    9.2 Troubleshooting for the end user When an error occurs on the I-CON, the user may try to eliminate it following these steps # Error Error title Troubleshooting guide Code Check the status of the cover. If open, close it. When you close the cover be sure that the DOOR OPEN internal device is pushed...
  • Page 44 I-CON EVOLUTION If the error remains, please contact the ENERGY METER COMMUNICATION KO assistance Try to start another charging session with the same cable or use a different cable WRONG CABLE SIZE If the error remains, please contact the assistance Check the internet connection provided to I-CON OFFLINE >1h...
  • Page 45 If the error remains, please contact the ETH PORT KO assistance If the error remains, please contact the WIFI KO assistance Check the connection and wiring with the installer following the instruction provided in the dedicated user manual EXTERNAL CT KO If the error remains, please contact the assistance Try to start another charging session.

  • Page 46: 10� Product Disposal

    According to applicable UK regulations, the company responsible for placing the goods in the UK market is: GEWISS UK LTD - Unity House, Compass Point Business Park, 9 Stocks Bridge Way, ST IVES Cambridgeshire, PE27 5JL, United Kingdom tel: +44 1954 712757...

  • Page 47: 11� Assistance

    You can also use the service to report problems with the operation of a product or the GEWISS mobile app and receive https://www.gewiss.com/ww/en/services/support the page and find out assistance.
  • Page 48 I-CON EVOLUTION GEWISS I-24069 CENATE SOTTO - Via A.Volta, 1 – (Bergamo) – Italia Telefax +39 035 946 222 Telefono +39 035 946 111 E-mail: gewiss@gewiss.com http://www.gewiss.com MANUFACTURER’S DECLARATION OF CONFORMITY Issuer’s name: Issuer’s address:...
