Summary of Contents for Gewiss JOINON Home GW68101

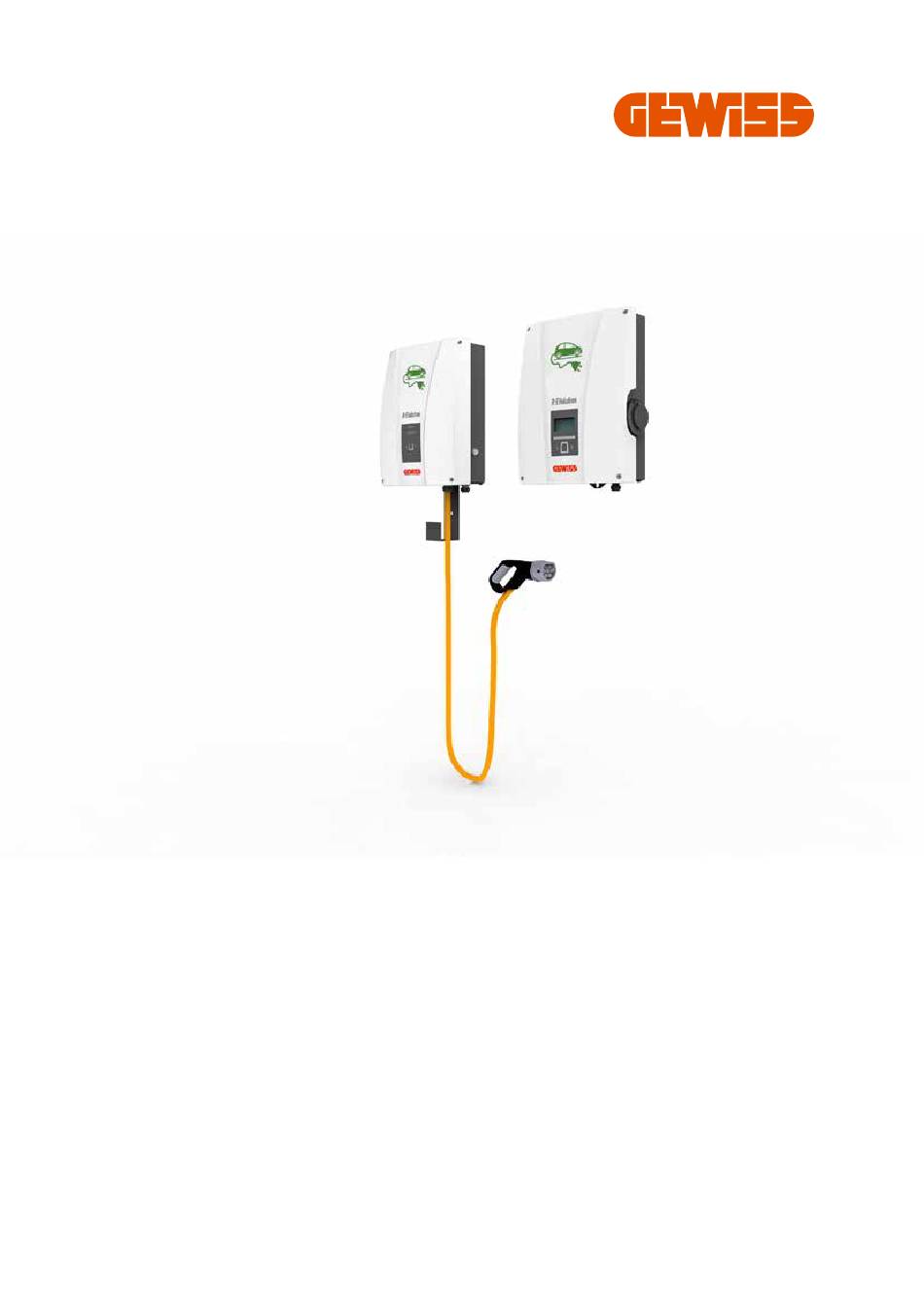

- Page 1 JOINON Home, Parking Installation and Operation Manual Manual de instalación y uso Manuel d'installation et usage Manuale d'installazione e uso Telepítési és üzemeltetési kézikönyv...
- Page 2 ABA2023IQM01_ - 7.55.4.494.0...
- Page 3 Gewiss English Español Français Italiano Magyar ABA2023IQM01_ - 7.55.4.494.0 ABA2023IQM01_ - 7.55.4.412.2...
- Page 4 Gewiss The copy, distribution or use of this document or of its content requires written authorisation. Any breach thereof will be reported for damages. All rights reserved including those of patent rights or design registration. The conformity of the document content with the hardware described has been checked. However, discrepancies may exist. Liability will not be assumed for total concordance.
-
Page 5: Table Of Contents
Contents Gewiss Contents Contents ..............................5 1. About this manual ..........................7 1.1. Scope of application ........................7 1.2. Recipients ............................. 7 1.3. Symbols ............................7 2. Unit description ............................. 8 2.1. Models............................8 2.2. Compliance with regulations ......................8 2.3. - Page 6 Gewiss Contents 12.1. Alarms ............................37 13. Waste handling ..........................40 ABA2023IQM01_ - 7.55.4.412.2 - Installation and Operation Manual ABA2023IQM01_ - 7.55.4.494.0...
-
Page 7: About This Manual
1.1. Scope of application This manual is valid for the following charging stations: JOINON Home JOINON Home GW68101 (single phase) JOINON Home GW68102 (three phase) JOINON Home GW68101R (single phase) JOINON Home GW68102R (three phase) -
Page 8: Unit Description
Gewiss Unit description 2. Unit description 2.1. Models JOINON Home JOINON Home GW68101 (single phase) JOINON Home GW68102 (single phase) JOINON Home GW68101R (single phase) JOINON Home GW68102R (single phase) JOINON Parking JOINON Parking GW68103 (single phase) JOINON Parking GW68103R (single phase) JOINON Parking GW68104C (three phase) 2.2. -
Page 9: Contamination Class
Unit description Gewiss 2.5. Contamination class The pollution class for which the charging stations have been designed is grade PD3. 2.6. Power Sockets These charging stations can be purchased with different connection configurations relative to the client's needs. The different available connectors are displayed below:... -
Page 10: Safety
Gewiss Safety 3. Safety This section describes the safety warnings and the Personal Protective Equipment used in the unit. 3.1. Safety conditions General warnings The operations described in the manual may be performed only by qualified personnel. The status of qualified personnel referred to in this manual will be, as a minimum, that which meets all the standards, regulations and laws regarding safety applicable to the tasks of installing and operating this unit. -
Page 11: Personal Protective Equipment (Ppe)
Safety Gewiss Carry out all operations and handling without voltage. As a minimum security measure in this operation, you must always follow the so-called 5 golden rules: Disconnect. Prevent any possible feedback. Check there is no voltage. Ground and short circuit. -
Page 12: Receipt Of The Unit And Storage
Keep the unit in its packaging until immediately before installation. 4.2. Equipment identification The serial number of the equipment is its unique identifier. You must quote this number in any communication with Gewiss. The unit’s serial number is marked on the specifications plate. 4.3. Transport damage If the unit has been damaged during transport, proceed as follows: Do not proceed with the installation. -
Page 13: Equipment Transport
• Avoid, as far as possible, vibrations which may cause subsequent malfunction. If you observe any anomaly, please contact Gewiss immediately. Separating the packaging All the packaging can be delivered to a non-hazardous waste management company. In any event, each part of the packaging may be recycled as follows: •... -
Page 14: Preparation For Installing The Unit
Gewiss Preparation for installing the unit 6. Preparation for installing the unit When deciding the location of the unit and planning your installation, you must follow a set of guidelines based on the specifications of the unit. 6.1. Environment •... - Page 15 Preparation for installing the unit Gewiss JOINON Home JOINON Parking ABA2023IQM01_ - 7.55.4.412.2 - Installation and Operation Manual ABA2023IQM01_ - 7.55.4.494.0...
-
Page 16: Installing And Connecting The Unit
Gewiss Installing and connecting the unit 7. Installing and connecting the unit Before installing the unit, the packaging must be removed, taking special care not to damage the housing. Check that there is no condensation inside the packaging. If there are signs of condensation, the unit must not be installed until you are sure it is completely dry. -
Page 17: Joinon Home
Installing and connecting the unit Gewiss 7.2. JOINON Home 7.2.1. Installing the unit In order to mount the unit, it is necessary to install a support on the wall using three fastening elements. After carrying out this operation, hang the unit from the support. -
Page 18: Connecting The Power To The Unit
Gewiss Installing and connecting the unit In the event that it is not installed at the bottom of the unit, the support must be secured to the wall as shown in the following image. Check that the unit properly secured. - Page 19 Installing and connecting the unit Gewiss Insert the power cable through the packing gland located on the cover of the bottom window. Screw the packing gland to the cover. Connect the power cables to the terminal block as shown in the following figure. The terminal blocks are clamp type.
-
Page 20: Joinon Parking
Gewiss Installing and connecting the unit Screw the bottom cover onto the unit and tighten the packing glands in order to correctly secure the cable. When the charging station has been charging for two seconds its LEDs will light up red, blue and green. After a brief status check, the light turns to green. -
Page 21: Connecting The Power To The Unit
Installing and connecting the unit Gewiss Once it is hanging from the wall support, complete the attachment using a fastening element inserted through the purpose-designed hole at the bottom of the station. Check that the unit properly secured. 7.3.2. Connecting the power to the unit... - Page 22 Gewiss Installing and connecting the unit Connect the power cables to the terminal block as shown in the following figure. The terminal blocks are clamp type. Insert a flat-head screwdriver to free it and insert the cable in the indicated hole. Tighten it using the screwdriver.
- Page 23 Installing and connecting the unit Gewiss When the charging station has been charging for two seconds its LEDs light up. After briefly verifying its status, the light will switch to green and the display will show an electric vehicle and the current time. The station is ready and awaits identification from the user in order to begin charging.
-
Page 24: Communication Accessories
Gewiss Communication accessories 8. Communication accessories These charging stations have an RS-485 data bus, and the JOINON Parking stations have two RJ45 connectors that allow a RS-485 connection between different stations. All the charging stations can be accessed either locally or remotely. For remote connection they use an external modem located in the installation or a modem supplied in the charging station if requested upon placing the order. -
Page 25: Joinon Parking
Communication accessories Gewiss Use a USB to RS-485 converter (not supplied with the charging station) to connect the computer to the first station of the communication ring. Communication ring: First station Intermediate station Final station A maximum of 10 stations can be interconnected. - Page 26 Gewiss Communication accessories Communication ring: First station Intermediate station Final station Each control card has a jumper located next to the RJ45 connectors. This jumper must be removed in all the intermediate stations of the communication ring and installed at the end stations.
-
Page 27: Operation
Operation Gewiss 9. Operation The main function of the charging station is to supply and measure electrical energy for users that have prior authorization by an RFID card reader system (authentication and power measurement not available in JOINON Home). This section describes the operation of the charging station in detail. - Page 28 Gewiss Operation Status Lighting Description End of charge Flashing yellow INGEREV GARAGE Basic without RFID reader After a vehicle has been charged, a user has selected the stop position (0) with the key and the charging station is waiting for the vehicle to be disconnected.
-
Page 29: Charging Process
Operation Gewiss 9.2. Charging process 9.2.1. JOINON Home The electrical supply connector must not be removed from the vehicle while the charging is being carried out. Types of charge The charging station has two charge modes: nominal (N) and limited (L). - Page 30 Gewiss Operation This station has a display+keypad set for the purpose of accessing the different menus of its firmware. The following points indicate the procedures that must be carried out to start and end the charging process. There are two options in order to carry out the charge: •...
- Page 31 Operation Gewiss To browse through the different options, press the buttons SELECT OPTION SELECT OPTION IMMEDIATE CHARGE IMMEDIATE CHARGE When the IMMEDIATE CHARGE option is highlighted, press The DEFERRED CHARGE option is only shown if it is enabled in the station.
- Page 32 Gewiss Operation Press to access the language selection menu for the charging session. Once the charging process ends the default language of the station will be enabled. After accessing the language selection menu browse LANGUAGE LANGUAGE through the options by pressing...
-
Page 33: Languages(Joinon Parking)
Operation Gewiss this is complete press to adjust the seconds. Once these have been selected press again. The following information screen will be displayed: When the charge start time is reached the charge will be CHARGING CHARGING carried out. When the set charge start time is reached the station will show the following screen indicating that the charging process has started correctly. - Page 34 Gewiss Operation Connector powered (error code 0008) The connector is powered when it should not be or is not powered when it should be. Inform the technical service of the incident. Energy meter communication fault (error code 0016) The internal communication with the energy meter is not correct, possibly due to a trip of the protections. Proceed to check the electric installation with a qualified personnel to check if protections have tripped.
-
Page 35: Shutting Down The Unit
Shutting down the unit Gewiss 10. Shutting down the unit This section describes the procedure to shut down the unit. If it is necessary to carry out work on the unit interior (qualified personnel only) these instructions must be followed in the same order shown here to remove the voltage. -
Page 36: Preventive Maintenance
Gewiss Preventive maintenance 11. Preventive maintenance 11.1. Residual current devices It is recommended to carry out annual checks of the residual current device of the station. To do so, press the RESET button on the device and wait for the unit to be reset. -
Page 37: Troubleshooting
Troubleshooting Gewiss 12. Troubleshooting This section provides a guide for troubleshooting problems that may arise in the installation and operation of charging stations. Troubleshooting must be performed by qualified personnel in compliance with the general safety instructions in this manual. - Page 38 Gewiss Troubleshooting • If it is not powered, check that there are no loose or incorrectly tightened cables in the contactors or power relays. It may be necessary to replace the contactor. Contact the telephone support service. If no voltage is present The problem may originate from the control card.
- Page 39 Troubleshooting Gewiss Solution If the alarm appears due to the vehicle's disconnection during the charge session, it will disappear upon completing the session. If the alarm persists when there is no charge session in progress, contact the telephone assistance. Maximum permitted charge current (error code 0512) Description The vehicle has not respected the maximum charge current allowed during a maximum established time.
- Page 40 Gewiss Waste handling 13. Waste handling These charging stations use components that are harmful to the environment (electronic cards, batteries or cells, etc.). At the end of the unit's life, the waste must be correctly processed by an authorized hazardous waste management company.
