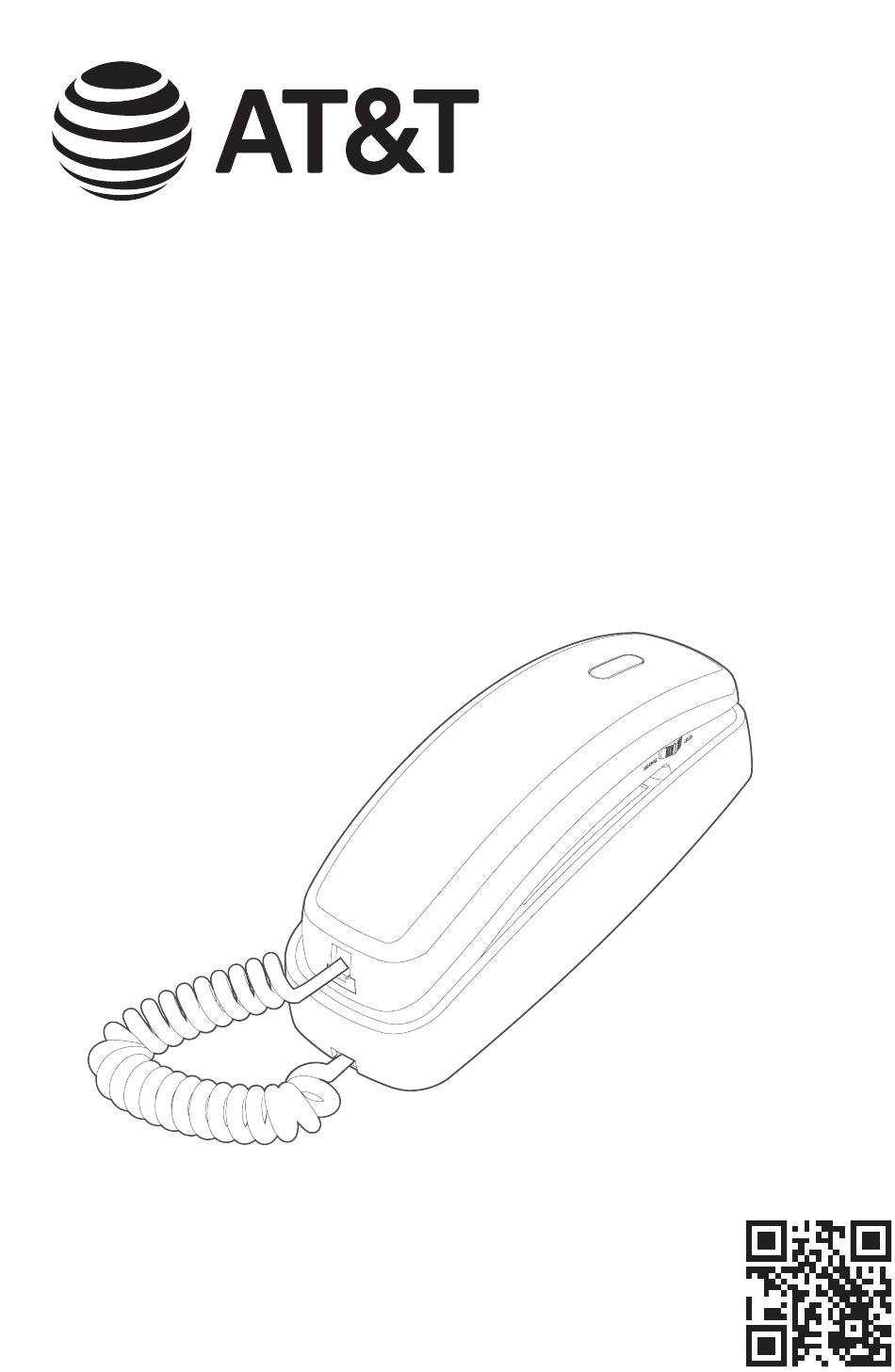

- Page 1 User's manual TRIMLINE® 213 Memory telephone Scan the QR code for support information...
- Page 2 Congratulations on your purchase of this AT&T product. Before using this AT&T product, please read the Important safety information section on pages 1-2 of this manual. Both the model and serial numbers of your AT&T product can be found on the bottom of the telephone base.
-
Page 3: Important Safety Information
Important safety information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Safety information Read and understand all instructions in the user’s manual. - Page 4 Important safety information Especially about corded telephones Electrical power: The telephone base of this corded telephone must be connected to a working electrical outlet which is not controlled by a wall switch. Calls cannot be made from the handset if the telephone base is unplugged, switched off or if the electrical power is interrupted.
-
Page 5: Table Of Contents
Table of contents Important safety information ....................1 Install ................................4 Wall-mount installation (optional) ..................6 Handset overview ..........................8 Telephone base overview ......................10 Operate ..............................11 Redial ..............................11 Call waiting / three-way calling ..................11 Mute ...............................11 Ringer volume ..........................12 Ringer tone ............................12 Receiver (handset) volume ....................12 Temporary tone dialing ......................13 Memory dialing ..........................13 Memory features .........................13... -
Page 6: Install
Install Table/desk installation This telephone includes a 7-foot line cord with a modular plug on each end. Use this cord to connect the telephone to a modular wall jack. 1. Fill in directory card Remove the directory card and write in your own telephone number. - Page 7 Install 5. Set dial mode switch This product comes set in tone dialing (TT) mode. Make sure you choose the correct dialing method (TT or DP); touch tone dialing will not work if you have dial pulse service. 6. Check for dial tone Lift the handset and listen for dial tone.
-
Page 8: Wall-Mount Installation (Optional)
Wall-mount installation (optional) Wall-mount installation 1. Fill in directory card Remove the directory card and write in your own telephone number. Also write the telephone numbers (or names) that you want to store in each memory location (See Page 13). Reinstall the card and clear plastic cover. - Page 9 Wall-mount installation (optional) 4. Install telephone base on wall jack Hold the base up next to the wall jack, and plug in the line cord. Then, push the base against the wall jack and down until it is held securely by the mounting studs. NOTE: If you cannot fit the base onto the wall jack, remove the four non-slip pads.
-
Page 10: Handset Overview
Handset overview Handset Visual ringer Flashes when there is an incoming call. Ì indicator Switch hook Lift the handset from the telephone base to Ì make a call. Place the handset to the telephone base to end Ì a call. Ì... - Page 11 Handset overview TONE/PULSE Ì Switch to left for tone dialing (TT); or switch to right for pulse dialing (DP). PROG/MUTE When the telephone is not in use, press this key Ì followed by a dialing key (0-9) to store the speed dial number.
-
Page 12: Telephone Base Overview
Telephone base overview Telephone base Reversible handset Reverse the handset tab for wall-mounting. This Ì tab holds the handset in place when you hang up. Directory card You can write the telephone numbers (or names) Ì that you want to store in each memory location. -
Page 13: Operate
Operate Redial This telephone stores the last phone number dialed in redial memory. However, if the phone is disconnected from the wall jack or if you are without phone service for more than 30 minutes, redial memory will be lost. The redial memory can accept numbers up to 31 digits long. -
Page 14: Ringer Volume
Operate Ringer volume The ringer volume switch allows you to turn the telephone ringer OFF, or set it to ring at LO or HI volume. You can dial or answer calls normally when the ringer is off. Other telephones in your home will still ring; they are not affected by the switch. -
Page 15: Temporary Tone Dialing
Operate Temporary tone dialing Temporary tone dialing is used only when you have rotary service. It allows you to access to services that require tone signaling, including some tone-activated computer systems (e.g., telephone banking). To change from pulse (rotary) to tone dialing during a call: 1. -
Page 16: Speed Dialing
Memory dialing Speed dialing Ten telephone numbers can be stored in standard speed-dialing locations. You can dial any of these numbers by pressing two buttons. To program numbers into memory: 1. Lift the handset. 2. Press PROG/MUTE. 3. Press MEM. 4. -
Page 17: Troubleshooting
Troubleshooting If you have difficulty operating this phone, try the suggestions mentioned below. https://telephones.att.com For Customer Service, visit our website at 1 (800) 222-3111 1 (866) 288-4268 or call . In Canada, call . Have the serial number, found on the underside of your phone, available when contacting Customer Service. -
Page 18: For C-Ul Compliance
For C-UL compliance In compliance with the bilingual requirements for safety, caution, and warning markings of Canadian Federal and Provincial/Territorial statutes and regulations, the French version of Important safety information is included. Mesures de sécurité importantes Ce symbole vous alertera d’informations importantes ou d’instructions d’entretien pouvant apparaître dans ce guide d’utilisation. - Page 19 For C-UL compliance Remplacez les piles uniquement tel que décrit dans votre guide d’utilisation. N’incinérez pas et ne percez pas les piles — elles contiennent des produits chimiques caustiques. L’adaptateur de courant est conçu pour être orienté verticalement ou installé sur le plancher.
-
Page 20: Fcc, Acta And Ic Information
FCC, ACTA and IC information If this equipment was approved for connection to the telephone network prior to July 23, 2001, it complies with Part 68 of the Federal Communications Commission (FCC) rules. If the equipment was approved after that date, it complies with the Part 68 rules and with the Technical Requirements for Connection of Equipment to the Telephone Network adopted by the Administrative Council for Terminal Attachments (ACTA). - Page 21 FCC, ACTA and IC information 4. Rights of the telephone service provider If this equipment is causing harm to the telephone network, the telephone service provider may temporarily discontinue your telephone service. The telephone service provider is required to notify you before interrupting service. If advance notice is not practical, you will be notified as soon as possible.
-
Page 22: Fcc Part 15
FCC Part 15 Some telephone equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used properly, may cause interference to radio and television reception. This product has been tested and found to meet the standards for a class B digital device, as specified in part 15 of the FCC rules. These specifications area designed to provide reasonable protection against such interference in a residential installation. -
Page 23: Limited Warranty
Limited warranty The AT&T brands are used under license. This product is covered by a one-year limited warranty. Any replacement or warranty service, and all questions about this product, should be directed to our website at https://telephones.att.com 1 (800) 222-3111 or call . - Page 24 Limited warranty 4. What is not covered by this limited warranty? This limited warranty does not cover: Product that has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation or handling, neglect, inundation, fire, water or other liquid intrusion; or Product that has been damaged due to repair, alteration or modification by anyone other than an authorized service representative of Advanced American Telephones;...
- Page 25 Limited warranty 6. What must you return with the PRODUCT to get warranty service? Return the entire original package and contents including the Product to the Advanced American Telephones service location along with a description of the malfunction or difficulty; Include “valid proof of purchase”...
- Page 26 https://telephones.att.com Company: Advanced American Telephones Address: 9020 SW Washington Square Road - Ste 555 Tigard, OR 97223, United States. Phone: 1 (800) 222-3111 in the U.S. or 1 (866) 288-4268 in Canada ©2022 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219.
