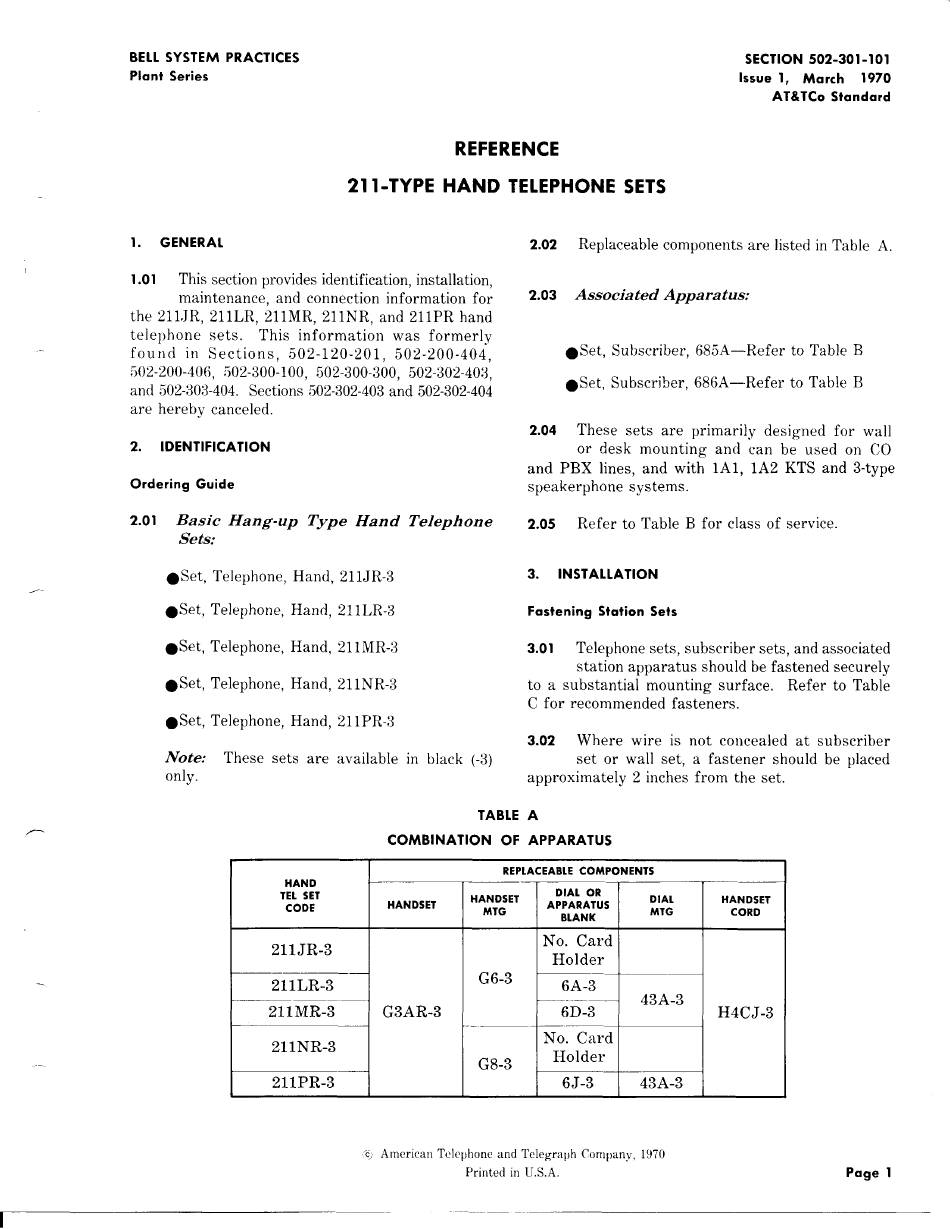

BELL SYSTEM PRACTICES
Plant Series
SECTION 502-301-1 01
Issue 1, March 1970
AT&TCo Standard
REFERENCE
211-TYPE HAND TELEPHONE SETS
1. GENERAL
1.01
This section provides identification, installation,
maintenance, and connection information for
the 21LJR, 211LR, 211MR, 211NR, and 211PR hand
telephone sets. This information was formerly
found in Sections, 502-120-201, 502-200-404,
502-200-406' :)02-300-1 00' 502-300-300' 502-302-40:5'
and 502-303-404. Sections 502-302-403 and 502-302-404
are hereby canceled.
2. IDENTIFICATION
Ordering Guide
2.01
Basic Hang-up Type Hand Telephone
Sets:
eSet, Telephone, Hand, 211JR-3
eSet, Telephone, Hano, 211LR-3
eSet, Telephone, Hand, 211MR-:3
eSet, Telephone, Hand, 211NR-3
eSet, Telephone, Hand, 211PR-3
Note: These sets are available in black (-3)
only.
2.02
Replaceable components are listed in Table A.
2.03
Associated Apparatus:
eSet, Subscriber, 685A-Refer to Table B
eSet, Subscriber, 686A-Refer to Table B
2.04
These sets are primarily designed for wall
or desk mounting and can be used on CO
and PBX lines, and with 1A1, 1A2 KTS and 3-type
speakerphone systems.
2.05
Refer to Table B for class of service.
3. INSTALLATION
Fastening Station Sets
3.01
Telephone sets, subscriber sets, and associated
station apparatus should be fastened securely
to a substantial mounting surface. Refer to Table
C for recommended fasteners.
3.02
Where wire is not concealed at subscriber
set or wall set, a fastener should be placed
approximately 2 inches from the set.
TABLE A
COMBINATION OF APPARATUS
REPLACEABLE COMPONENTS
HAND
-
TEL SET
HANDSET
DIAL OR
DIAL
CODE
HANDSET
MTG
APPARATUS
MTG
BLANK
211JR-3
No. Card
Holder
r - - - - - - - - - -
G6-3
211LR-3
211MR-3
f----"
211NR-3
211PR-3
6A-3
1---"~-----
43A-3
G3AR-3 6D-3
--
f----"
No. Card
G8-3
Holder
6J-3 43A-3
c; American Telephone and Telegraph Company, 1970
Printed in U.S.A.
HANDSET
CORD
H4CJ-3
