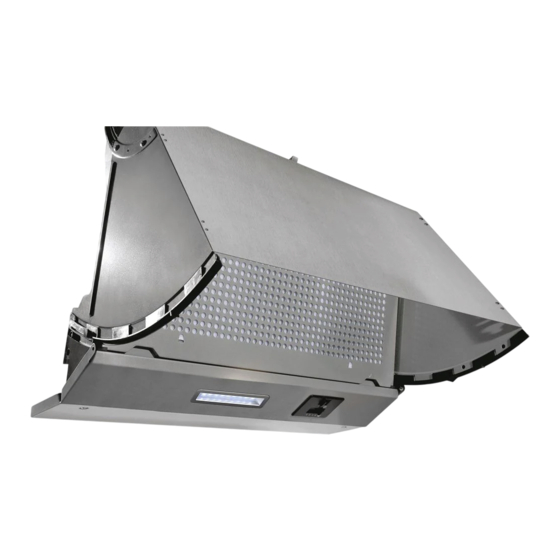

Candy CBP613NGR/S Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual




CBP613NGR/S
Cooker Hood
Instruction Manual




1



Advertisement

loading
Need help?

Need help?

Do you have a question about the CBP613NGR/S and is the answer not in the manual?

Questions and answers

Related Manuals for Candy CBP613NGR/S

Summary of Contents for Candy CBP613NGR/S

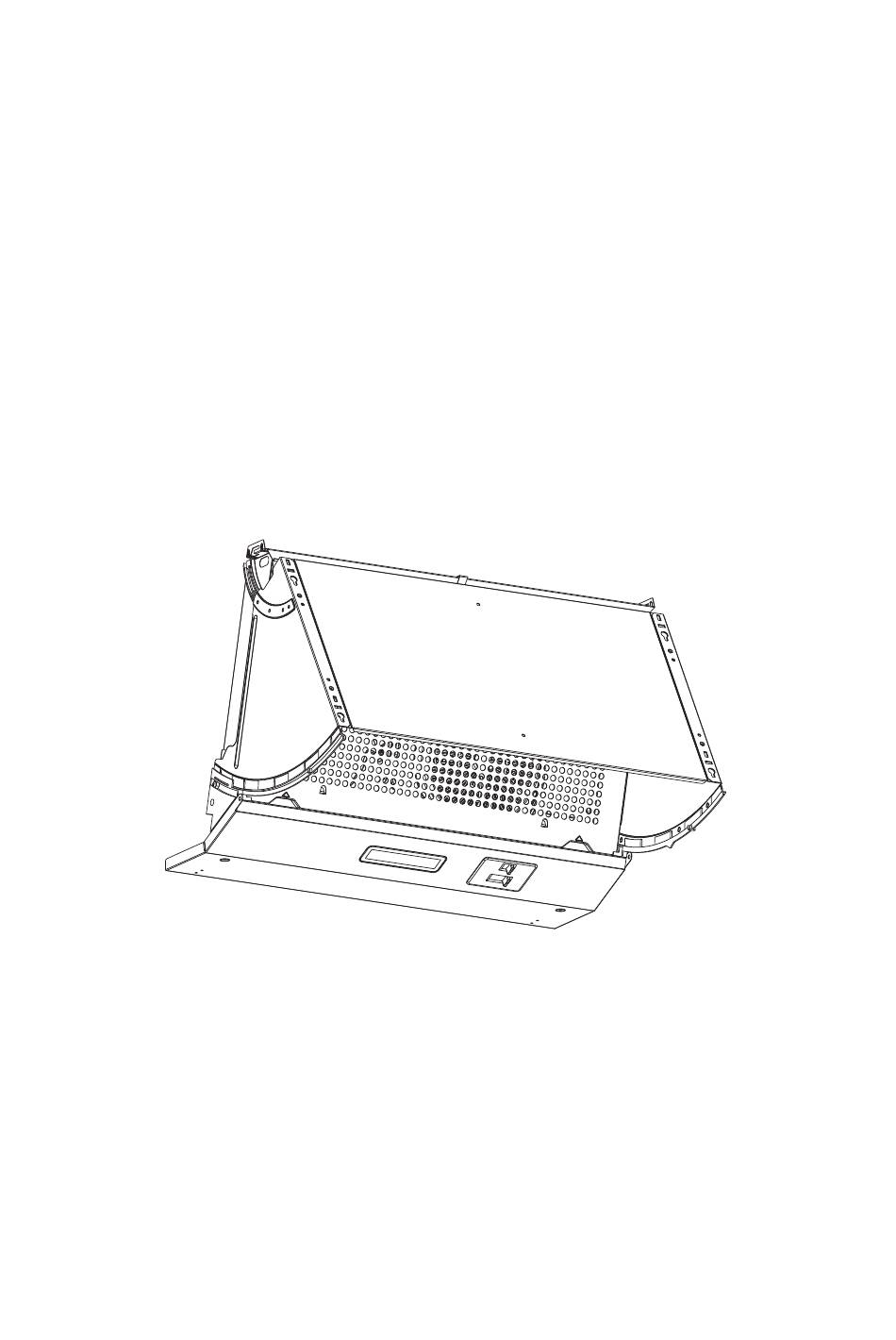

  • Page 1   CBP613NGR/S  Cooker Hood  Instruction Manual                  ...

  • Page 2: Table Of Contents

    Content Safetyinstructions…………………………………..…………………………………………………3  Installation…………………………………..…………………………………………………………….5 Startusingyourcookerhood…………………………………..………………………………..9 Troubleshooting…………………………………..……………………………………………………10 Maintenanceandcleaning…………………………………..……………………………………11 Environmentprotection…………………………………..………………………………………..14...

  • Page 3: SafetyInstructions

    SAFETY INSTRUCTIONS  hismanualexplainstheproperinstallationanduseofyourcookerhood, pleasereaditcarefullybeforeusingevenifyouarefamiliarwiththeproduct. Themanualshouldbekeptinasafeplaceforfuturereference. Nevertodo: Alwaystodo: o not try to use the cooker hood mportant! Always switch off the ● ● without the grease filters or if the filters electricity supply at the mains during are excessively greasy! installation and maintenance such as light bulb replacement.
  • Page 4 Alwaystodo: Alwaystodo: lways put lids on pots and pans aution: The appliance and its ● ● when cooking on a gas cooker. accessible parts can become hot during operation. Be careful to avoid hen in extraction mode, air in the ●...

  • Page 5: Installation

    INSTALLATION (VENT OUTSIDE)  If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non- flammable material with an interior diameter of 120mm) 1. Before installation, turn the unit off and unplug it from the outlet. 2.
  • Page 6 4. Hang the cooker hood on the screws between the two cupboards. 5. Push the fan-shaped door frames to the end, in order to make the outer edges of the door frames at the same vertical level as the outer edge of the cupboards. 6.
  • Page 7 8. Connect the air-outlet board and the air-outlet tube (Vent Hose) which will need to feed through to the outside of the building. Rigid kits, if preferred, can be obtained from either the retailer who supplied the hood, or DIY Stores and Builders Merchants.
  • Page 8 12. The two screws on both sides of the cooker hood can adjust the sliding of the door, according to the weight of the door. Install the adjusting plate, in order to cover the gap between the wall and the bottom of the cooker hood.

  • Page 9: StartUsingYourCookerHood

    Electrical Installation All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate. Direct Connection The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

  • Page 10: Troubleshooting

    To operate: pull up the front panel, turn on the cooker hood, and then choose the fan speed setting. To turn the unit off, there are two options: 1. Turn off the fan with the slide switch. 2. Push down the front panel (with the fan still switched on). This will turn the hood off, and when the cooker hood is next opened, the fan speed will be the same as the last time it was operate.

  • Page 11: MaintenanceAndCleaning

    The Cooker hood The fixing screw is not tight Tighten the hanging screw and inclines enough make it horizontal. NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws.Please contact the service centre if in any doubt before undertaking any of the above.
  • Page 12 Filters should be washed separately to crockery and kitchen utensils. It is advisable not to use rinse aid. Remove the filter as shown in the diagrams below: INSTALLING GREASE MESH FILTERS • To install filters for the following four steps . - Angle the filter into slots at the back of the hood.
  • Page 13 BULB REPLACEMENT Important :  The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.  Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it has completely cooled down before any direct contact to hands.

  • Page 14: EnvironmentProtection

    ENVIRONMENTAL PROTECTION:  This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU.
