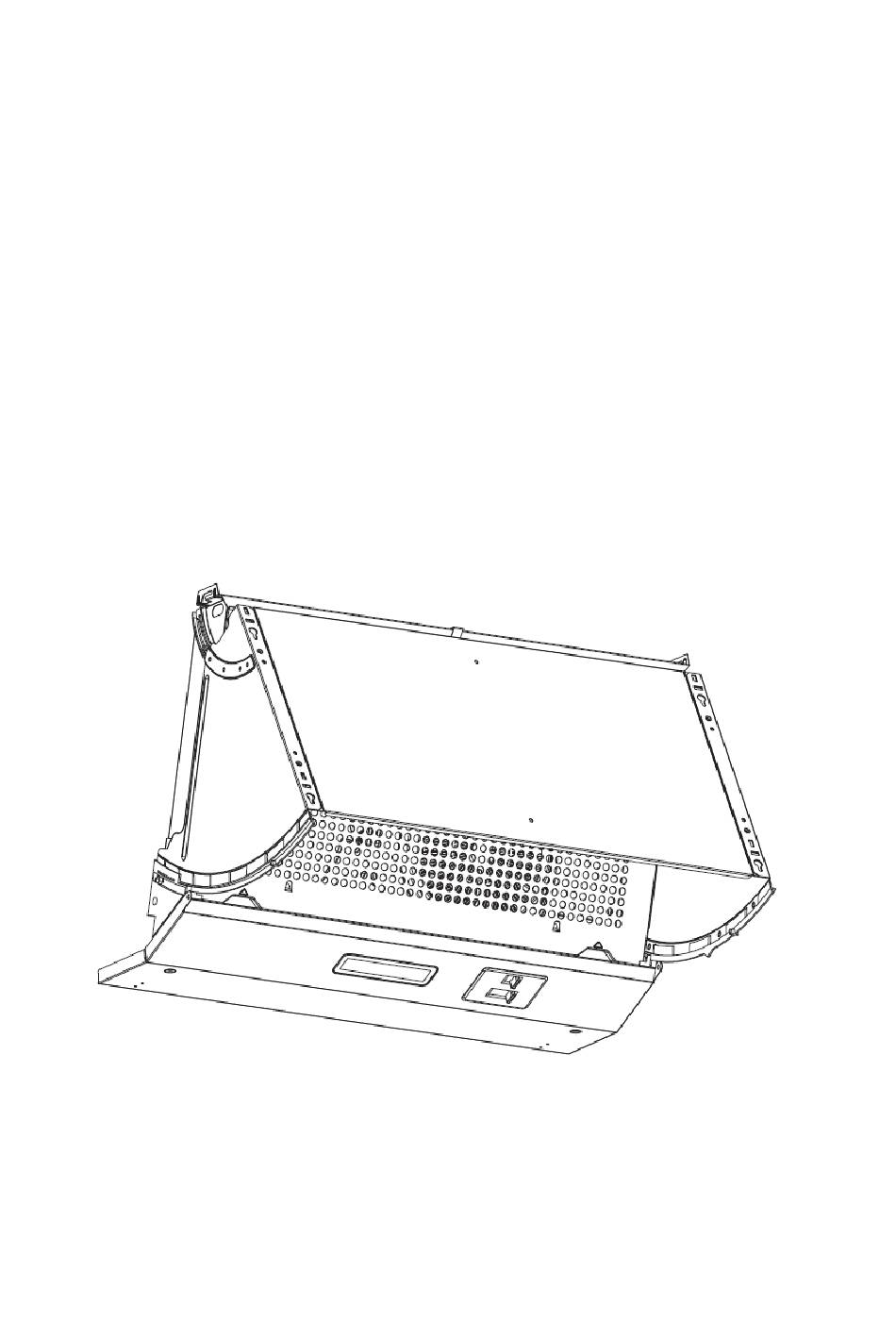

- Page 1 CBP612/4GR ，CBP613NGR Cooker Hood Instruction Manual...
-
Page 2: Table Of Contents
Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Start using your cooker hood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenance and cleaning 6…………………………………..………………………………Environment protection... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS his manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. These instructions shall also be available in an alternative format, e.g. - Page 4 Always to do: Always to do: ● ● lways put lids on pots and pans aution: The appliance and its when cooking on a gas cooker. accessible parts can become hot during operation. Be careful to avoid ● hen in extraction mode, air in the touching the heating elements.
- Page 5 INSTALLATION (VENT OUTSIDE) If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 120mm) 1. Before installation, turn the unit off and unplug it from the outlet. 2.The cooker hood should be placed at a height of 65-75cm above the cooking surface for best efficiency.
- Page 6 5. Push the fan-shaped door frames to the end, in order to make the outer edges of the door frames at the same vertical level as the outer edge of the cupboards. 6. Mark the positions where you install the lower screws. Drill the upper hole and fix the screws.
- Page 7 8. Connect the air-outlet board and the air-outlet tube (Vent Hose) which will need to feed through to the outside of the building. Rigid kits, if preferred, can be obtained from either the retailer who supplied the hood, or DIY Stores and Builders Merchants.
- Page 8 can be safely locked. If the door cannot be safely locked, you can release the plastic handle. 12. The two screws on both sides of the cooker hood can adjust the sliding of the door, according to the weight of the door. 13.
-
Page 9: Start Using Your Cooker Hood
For safety reason, please use only the same WARNING: size of fixing or mounting screw which are recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. Start Using Your Cooker Hood Toggle switch ... -
Page 10: Troubleshooting
TROUBLESHOOTING Fault Possible Cause Solution Fan switch turned off Select a fan switch position. Light on, but motor Fan switch failed Contact service center. does not work Motor failed Contact service center. House fuses blown Reset/Replace fuses. Light does not work, motor does Power cord loose or Refit cord to power outlet. - Page 11 STAINLESS STEEL The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used. NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.
- Page 12 INSTALLING GREASE MESH FILTERS • To install filters for the following four steps . - Angle the filter into slots at the back of the hood. - Push the button on handle of the filter. - Release the handle once the filter fits into a resting position. - Repeat to install all filters.
- Page 13 BULB REPLACEMENT The bulb must be replaced by the manufacturer, its Important : service agent or similarly qualified persons. Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
-
Page 14: Environment Protection
ENVIRONMENTAL PROTECTION: This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused).
