Operating Instructions
Air Conditioner
Model No.

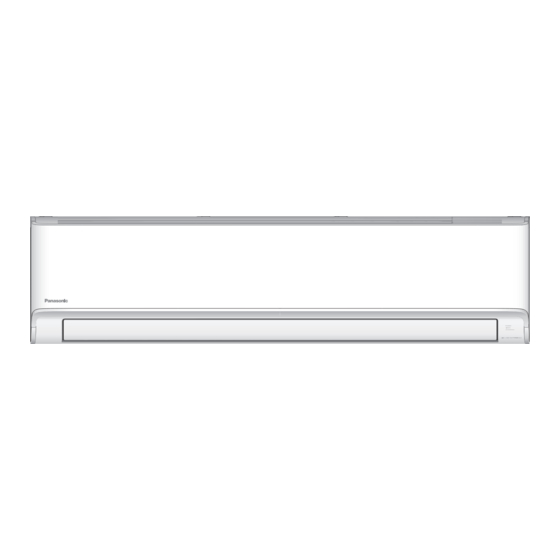

Indoor Unit
CS-YN30YKF
Name and Address of Manufacturer:
Panasonic Appliances Air-Conditioning Malaysia Sdn. Bhd.
Shah Alam, Selangor, MALAYSIA
Name and Address of Importer:
Panasonic Marketing Middle East & Africa FZE
Jebel Ali, Dubai, UNITED ARAB EMIRATES
Outdoor Unit
CU-YN30YKF
١٧-٢
ﻗﺒﻞ ﺗﺸﻐﻴﻞ ﺍﻟﻮﺣﺪﺓ، ﻳ ﹸ ﺮﺟﻰ ﻗﺮﺍﺀﺓ ﺗﻌﻠﻴﻤﺎﺕ ﺍﻟﺘﺸﻐﻴﻞ ﺑﻌﻨﺎﻳﺔ ﻭﺍﻻﺣﺘﻔﺎﻅ
:ﻗﺒﻞ ﺍﻟﺘﺮﻛﻴﺐ، ﻳﺠﺐ ﻋﻠﻰ ﺍﻟﻘﺎﺋﻢ ﺑﺎﻟﺘﺮﻛﻴﺐ ﺃﻥ
ﻳﻘﺮﺃ ﺗﻌﻠﻴﻤﺎﺕ ﺍﻟﺘﺮﻛﻴﺐ، ﺛﻢ ﻳﻄﻠﺐ ﻣﻦ ﺍﻟﻌﻤﻴﻞ ﺍﻻﺣﺘﻔﺎﻅ ﺑﻬﺬﺍ ﺍﻟ ﻜ ﹸﺘﻴﺐ
.ﻗﻢ ﺑﺈﺯﺍﻟﺔ ﻭﺣﺪﺓ ﺍﻟﺘﺤﻜﻢ ﻋﻦ ﺑﻌﺪ ﺍﻟﻤﻮﺟﻮﺩﺓ ﻣﻊ ﺍﻟﻮﺣﺪﺓ ﺍﻟﺪﺍﺧﻠﻴﺔ
Operating Instructions
Air Conditioner
Before operating the unit, please read these operating
instructions thoroughly and keep them for future reference.
Before installation, the installer should:
Read the Installation Instructions, then request the
customer keep them for future reference.
Remove the remote control packed with the indoor unit.
ﺗﻌﻠﻴﻤﺎﺕ ﺍﻟﺘﺸﻐﻴﻞ
ﺟﻬﺎﺯ ﺍﻟﺘﺒﺮﻳﺪ
.ﺑﻬﺎ ﻟﻠﺮﺟﻮﻉ ﺇﻟﻴﻬﺎ ﻓﻲ ﺍﻟﻤﺴﺘﻘﺒﻞ
.ﻛﻤﺮﺟﻊ ﻓﻲ ﺍﻟﻤﺴﺘﻘﺒﻞ
18-35
ACXF55-32390
Advertisement
Related Manuals for Panasonic CS-YN30YKF
Summary of Contents for Panasonic CS-YN30YKF
- Page 1 Remove the remote control packed with the indoor unit. Name and Address of Manufacturer: Panasonic Appliances Air-Conditioning Malaysia Sdn. Bhd. Shah Alam, Selangor, MALAYSIA Name and Address of Importer: Panasonic Marketing Middle East & Africa FZE Jebel Ali, Dubai, UNITED ARAB EMIRATES ACXF55-32390...
- Page 2 .ﻳﻮﻓﺮ ﺍﻟﺘﺒﺮﻳﺪ ﺍﻟﺴﺮﻳﻊ ﻭﺃﻗﺼﻰ ﻗﺪﺭ ﻣﻦ ﺍﻟﺮﺍﺣﺔ ﺍﺳﺘﺨﺪﻡ ﺟﻬﺎﺯ ﺍﻟﺘﺤﻜﻢ ﻋﻦ ﺑﻌﺪ ﻓﻲ ﻧﻄﺎﻕ ٨ ﺃﻣﺘﺎﺭ ﻣﻦ ﻣﺴﺘﻘﺒﻞ ﻭﺣﺪﺓ ﺍﻟﺘﺤﻜﻢ ﻋﻦ ﺑﻌﺪ ﻓﻲ .ﺍﻟﻮﺣﺪﺓ ﺍﻟﺪﺍﺧﻠﻴﺔ ﺩﻟﻴﻞ ﺳﺮﻳﻊ ﺿﺒﻂ ﺍﻟﺴﺎﻋﺔ ﻭﺿﻊ ﺍﻟﺒﻄﺎﺭﻳﺎﺕ ١ ٢ ٣ ﺛﻢ ﺍﺿﻐﻂ ١ ﺍﺿﻐﻂ ﻋﻠﻰ .ﻟﻀﺒﻂ ﺍﻟﻮﻗﺖ ﻋﻠﻰ...
- Page 3 ﺷﻜﺮﺍ ﻟﻚ ﻋﻠﻰ ﺷﺮﺍﺀ ﻣﻜﻴﻒ ﺍﻟﻬﻮﺍﺀ ﻣﻦ .ﺑﺎﻧﺎﺳﻮﻧﻴﻚ ﺟﺪﻭﻝ ﺍﻟﻤﺤﺘﻮﻳﺎﺕ ١١-٤ ﲢﺬﻳﺮﺍﺕ ﻣﻦ ﺍﺟﻞ ﺍﻟﺴﻼﻣﺔ ......١٣-١٢ ﻛﻴﻔﻴﺔ ﺍﻻﺳﺘﺨﺪﺍﻡ ........١٤ ﳌﻌﺮﻓﺔ ﺍﻛﺜﺮ ............١٥ ﺗﻨﻈﻴﻒ ﻣﻜﻴﻒ ﺍﻟﻬﻮﺍﺀ ........١٧-١٦ ﺍﻟﺒﺤﺚ ﻋﻦ ﺍﻻﻋﻄﺎﻝ ﻭﺍﻻﺻﻼﺡ ....٣٤ ............ﺍﳌﻌﻠﻮﻣﺎﺕ ﺍﻻﻛﺴﺴﻮﺍﺭﺍﺕ ﺟﻬﺎﺯ ﺍﻟﺘﺤﻜﻢ ﻋﻦ ﺑﻌﺪ •...
- Page 4 ﲢﺬﻳﺮﺍﺕ ﻣﻦ ﺍﺟﻞ ﺍﻟﺴﻼﻣﺔ ﻣﻦ ﺃﺟﻞ ﺗﻔﺎﺩﻱ ﺣﺪﻭﺙ ﺟﺮﻭﺡ ﺷﺨﺼﻴﺔ، ﺃﻭ ﺟﺮﻭﺡ ﻷﺷﺨﺎﺹ ﺁﺧﺮﻳﻦ،ﺃﻭ .ﺗﻠﻒ ﺑﺎﳌﻤﺘﻠﻜﺎﺕ، ﻳﺮﺟﻰ ﺍﻻﻣﺘﺜﺎﻝ ﳌﺎﻳﻠﻲ ﺍﺩﻧﺎﻩ ﲢﺬﻳﺮ ﺳﻮﻑ ﻳﺴﺒﺐ ﺍﻟﺘﺸﻐﻴﻞ ﻏﻴﺮ ﺍﻟﺼﺤﻴﺢ ﺑﺴﺒﺐ ﻋﺪﻡ ﺍﺗﺒﺎﻉ ﺍﻟﺘﻌﻠﻴﻤﺎﺕ :ﺍﳌﺬﻛﻮﺭﺓ ﺍﺩﻧﺎﻩ ﺃﺫﻯ ﺃﻭ ﺿﺮﺭ ﺝ ﹼ ﺩﻱ. ﻛﻤﺎ ﻫﻮ ﻣﺼ ﻨ ﹼ ﻒ ﻓﻲ ﺍﻷﺳﻔﻞ .ﻻ...
- Page 5 ﺍﺳﺘﺨﺪﻡ ﺳﻠﻚ ﺍﻟﺘﺰﻭﺩ ﺑﺎﻟﻄﺎﻗﺔ ﻣﻦ ﺩﻭﻥ ﺍﻟﺘﻮﺻﻴﻠﺔ. ﺍﺫﺍ ﻛﺎﻧﺖ ﺗﻨﺒﻴﻪ .ﺍﻟﻈﺮﻭﻑ ﻻﺗﺴﻤﺢ ﺑﺎﺳﺘﺨﺪﺍﻡ ﺳﻠﻚ ﺍﻟﻄﺎﻗﺔ ﻣﻦ ﺩﻭﻥ ﺍﻟﺘﻮﺻﻴﻠﺔ ﺍﺳﺘﺨﺪﻡ ﻣﺼﺪﺭ ﻭﺳﺎﺋﻞ ﺍﻟﺘﻮﺻﻴﻞ ﺍﳌﻮﺍﻓﻖ ﻋﻠﻴﻬﺎ )ﻋﻠﻰ ﺳﺒﻴﻞ ﺍﳌﺜﺎﻝ .(ﺍﳌﻘﺒﺲ ﻭﺍﻟﻘﺎﺑﺲ ﺍﻟﻮﺣﺪﺓ ﺍﻟﺪﺍﺧﻠﻴﺔ ﻭﺍﻟﻮﺣﺪﺓ ﺍﳋﺎﺭﺟﻴﺔ ﻣﺼﺪﺭ ﺍﻟﻄﺎﻗﺔ ﺟﻬﺎﺯ ﺍﻟﺘﺒﺮﻳﺪ ﻻﺗﻐﺴﻞ ﺍﻟﻮﺣﺪﺓ ﺍﻟﺪﺍﺧﻠﻴﺔ ﺑﺎﳌﺎﺀ، ﺃﻭ ﺍﻟﺒﻨﺰﻳﻦ، ﺃﻭ ﺍﻟﺜﻨﺮ، ﺃﻭ ﻣﺴﺤﻮﻕ ﺍﻟﻮﺣﺪﺓ...
- Page 6 ﲢﺬﻳﺮﺍﺕ ﻣﻦ ﺍﺟﻞ ﺍﻟﺴﻼﻣﺔ ﻳﺠﺐ ﺍﻟﺘﺄﻛﺪ ﺩﺍﺋﻤ ﹰ ﺎ ﻣﻦ ﺃﻥ ﺍﳌﻮﺍﺩ ﺍﻟﻐﺮﻳﺒﺔ )ﺍﻟﺰﻳﺖ ﻭﺍﳌﺎﺀ ﻭﻣﺎ ﺇﻟﻰ ﲢﺬﻳﺮ ﺫﻟﻚ( ﻻ ﺗﺪﺧﻞ ﺍﻷﻧﺎﺑﻴﺐ. ﺃﻳﻀ ﹰ ﺎ، ﻋﻨﺪ ﺗﺨﺰﻳﻦ ﺍﻷﻧﺎﺑﻴﺐ، ﻗﻢ ﺑﺈﻏﻼﻕ ﺍﻟﻔﺘﺤﺔ ﺑﺈﺣﻜﺎﻡ ﻋﻦ ﻃﺮﻳﻖ ﺍﻟﻀﻐﻂ ﻭﺍﻟﺸﺮﻳﻂ ﺍﻟﻼﺻﻖ ﻭﻣﺎ ﺇﻟﻰ R410A ﻣﺸﺎﺑﻪ...
- Page 7 ٢. ﺍﻟﺼﻴﺎﻧﺔ ﺡ( ﻳﺠﺐ ﺍﺗﺨﺎﺫ ﺍﻻﺣﺘﻴﺎﻃﺎﺕ ﺍﻟﻼﺯﻣﺔ ﻟﺘﺠﻨﺐ ﺍﻻﻫﺘﺰﺍﺯ ﺃﻭ ٢-١. ﻣﻮﻇﻔﻮﺍ ﺍﻟﺼﻴﺎﻧﺔ .ﺍﻟﻨﺒﺾ ﺍﳌﻔﺮﻁ ﻷﻧﺎﺑﻴﺐ ﺍﻟﺘﺒﺮﻳﺪ ﺥ( ﺿﻤﺎﻥ ﺃﺟﻬﺰﺓ ﺍﳊﻤﺎﻳﺔ، ﺣﻤﺎﻳﺔ ﺟﻴﺪﺓ ﻷﻧﺎﺑﻴﺐ ﻳﺘﻢ ﻓﺤﺺ ﺍﻟﻨﻈﺎﻡ ﻭﺍﻹﺷﺮﺍﻑ ﻋﻠﻴﻪ ﻭﺻﻴﺎﻧﺘﻪ ﺑﺎﻧﺘﻈﺎﻡ • ﺍﻟﺘﺒﺮﻳﺪ ﻭﺍﻟﺘﺮﻛﻴﺒﺎﺕ ﻣﻦ ﺍﻟﺘﺄﺛﻴﺮﺍﺕ ﺍﻟﺒﻴﺌﻴﺔ ﺍﻟﻀﺎﺭﺓ ﻣﻦ ﻗﺒﻞ ﻣﻮﻇﻔﻲ ﺍﻟﺼﻴﺎﻧﺔ ﺍﳌﺪﺭﺑﲔ ﻭﺍﳌﻌﺘﻤﺪﻳﻦ ﺍﻟﺬﻳﻦ ﰎ )ﻣﺜﻞ...
- Page 8 ﲢﺬﻳﺮﺍﺕ ﻣﻦ ﺍﺟﻞ ﺍﻟﺴﻼﻣﺔ ٢-٣. ﺍﻟﺘﺤﻘﻖ ﻣﻦ ﻭﺟﻮﺩ ﻏﺎﺯ ﺍﻟﺘﺒﺮﻳﺪ ٢-٧. ﻓﺤﺺ ﻣﻌﺪﺍﺕ ﺍﻟﺘﺒﺮﻳﺪ ﻳﺠﺐ ﻓﺤﺺ ﺍﳌﻨﻄﻘﺔ ﺑﺎﺳﺘﺨﺪﺍﻡ ﻛﺎﺷﻒ ﻣﺒﺮﺩ ﻣﻨﺎﺳﺐ ﻗﺒﻞ • ﻓﻲ ﺣﺎﻟﺔ ﺗﻐﻴﻴﺮ ﺍﳌﻜﻮﻧﺎﺕ ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ، ﻳﺠﺐ ﺃﻥ ﺗﻜﻮﻥ • ﻭﺃﺛﻨﺎﺀ ﺍﻟﻌﻤﻞ، ﻟﻠﺘﺄﻛﺪ ﻣﻦ ﺃﻥ ﺍﻟﻔﻨﻲ ﻋﻠﻰ ﺩﺭﺍﻳﺔ ﺑﺎﻷﺟﻮﺍﺀ ﺍﻟﺘﻲ .ﻣﻨﺎﺳﺒﺔ...
- Page 9 ﺘﻮﻣﺔ٣. ﺇﺻﻼﺣﺎﺕ ﺍﳌﻜﻮﻧﺎﺕ ﺍ ٦. ﺍﻟﻜﺸﻒ ﻋﻦ ﺍﳌﺒﺮﺩﺍﺕ ﺍﻟﻘﺎﺑﻠﺔ ﻟﻼﺷﺘﻌﺎﻝ ﺃﺛﻨﺎﺀ ﺇﺻﻼﺡ ﺍﳌﻜﻮﻧﺎﺕ ﻣﺤﻜﻤﺔ ﺍﻟﻐﻠﻖ، ﻳﺠﺐ ﻓﺼﻞ ﺟﻤﻴﻊ • ﻻ ﻳﺠﻮﺯ ﲢﺖ ﺃﻱ ﻇﺮﻑ ﻣﻦ ﺍﻟﻈﺮﻭﻑ ﺍﺳﺘﺨﺪﺍﻡ ﻣﺼﺎﺩﺭ • ﺍﻹﻣﺪﺍﺩﺍﺕ ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ ﻋﻦ ﺍﳌﻌﺪﺍﺕ ﺍﻟﺘﻲ ﻳﺘﻢ ﺍﻟﻌﻤﻞ ﻋﻠﻴﻬﺎ ﺍﻻﺷﺘﻌﺎﻝ ﺍﶈﺘﻤﻠﺔ ﻓﻲ ﺍﻟﺒﺤﺚ ﺃﻭ ﺍﻟﻜﺸﻒ ﻋﻦ ﺗﺴﺮﻳﺒﺎﺕ .ﻗﺒﻞ...
- Page 10 ﲢﺬﻳﺮﺍﺕ ﻣﻦ ﺍﺟﻞ ﺍﻟﺴﻼﻣﺔ ٨. ﺍﻹﺯﺍﻟﺔ ﻭﺍﻹﺧﻼﺀ ٩. ﺇﺟﺮﺍﺀﺍﺕ ﺍﻟﺸﺤﻦ ﻋﻨﺪ ﺩﺧﻮﻝ ﺩﺍﺋﺮﺓ ﺍﻟﺘﺒﺮﻳﺪ ﻹﺟﺮﺍﺀ ﺇﺻﻼﺣﺎﺕ - ﺃﻭ ﻷﻱ ﻏﺮﺽ • ﺑﺎﻹﺿﺎﻓﺔ ﺇﻟﻰ ﺇﺟﺮﺍﺀﺍﺕ ﺍﻟﺸﺤﻦ ﺍﻟﺘﻘﻠﻴﺪﻳﺔ، ﻳﺠﺐ ﺍﺗﺒﺎﻉ • ﺁﺧﺮ - ﻳﺠﺐ ﺍﺗﺒﺎﻉ ﺍﻹﺟﺮﺍﺀﺍﺕ ﺍﻟﺘﻘﻠﻴﺪﻳﺔ. ﻭﻣﻊ ﺫﻟﻚ، ﻓﻤﻦ ﺍﳌﻬﻢ .ﺍﳌﺘﻄﻠﺒﺎﺕ ﺍﻟﺘﺎﻟﻴﺔ ﺍﺗﺒﺎﻉ...
- Page 11 ﺝ( ﺇﺫﺍ ﻛﺎﻥ ﺍﻟﻔﺮﺍﻍ ﻏﻴﺮ ﳑﻜﻦ، ﻓﻘﻢ ﺑﻌﻤﻞ ﻣﺸﻌﺐ ﺑﺤﻴﺚ ﻳﺠﺐ ﺃﻥ ﺗﻜﻮﻥ ﻣﻌﺪﺍﺕ ﺍﻻﺳﺘﺮﺩﺍﺩ ﻓﻲ ﺣﺎﻟﺔ ﻋﻤﻞ ﺟﻴﺪﺓ ﻣﻊ • .ﳝﻜﻦ ﺇﺯﺍﻟﺔ ﺍﳌﺒﺮﺩ ﻣﻦ ﺃﺟﺰﺍﺀ ﻣﺨﺘﻠﻔﺔ ﻣﻦ ﺍﻟﻨﻈﺎﻡ ﻣﺠﻤﻮﻋﺔ ﻣﻦ ﺍﻟﺘﻌﻠﻴﻤﺎﺕ ﺍﳌﺘﻌﻠﻘﺔ ﺑﺎﳌﻌﺪﺍﺕ ﺍﳌﻮﺟﻮﺩﺓ ﻭﺗﻜﻮﻥ ﺡ( ﺗﺄﻛﺪ ﻣﻦ ﺃﻥ ﺍﻷﺳﻄﻮﺍﻧﺔ ﻣﻮﺿﻮﻋﺔ ﻋﻠﻰ ﺍﳌﻴﺰﺍﻥ ﻗﺒﻞ ﺃﻥ .ﻣﻨﺎﺳﺒﺔ...
- Page 12 ﻛﻴﻔﻴﺔ ﺍﻻﺳﺘﺨﺪﺍﻡ ﻟﻀﺒﻂ ﺍﲡﺎﻩ ﺗﺪﻓﻖ ﺍﻟﻬﻮﺍﺀ ﺍﲡﺎﻩ ﻋﻠﻮﻱ AIR SWING ﺍﳌﺆﺷﺮﺍﺕ :ﺍﻻﲡﺎﻩ ﺍﻟﻌﻠﻮﻱ POWER .ﻻ ﺗﻀﺒﻂ ﺷﻖ ﺩﻭﺭﺍﻥ ﺍﻟﻬﻮﺍﺀ ﻳﺪﻭﻳ ﹰ ﺎ • TIMER « ...* ﻟﻠﺤﺼﻮﻝ ﻋﻠﻰ ﺗﻔﺎﺻﻴﻞ ﺍﻟﺘﺸﻐﻴﻞ، ﺭﺍﺟﻊ » ﳌﻌﺮﻓﺔ ﺍﻛﺜﺮ JETSTREAM :ﺍﻻﲡﺎﻩ ﺍﳉﺎﻧﺒﻲ ﻟﻀﺒﻂ ﺍﻻﲡﺎﻩ ﺍﳉﺎﻧﺒﻲ، ﻳﺪﻭﻳﺎ ﻗﺎﺑﻞ •...
- Page 13 .ﺍﻧﻈﺮ » ﳌﻌﺮﻓﺔ ﺍﻛﺜﺮ... « ﻟﻠﺘﻔﺎﺻﻴﻞ ﻟﺰﻳﺎﺩﺓ ﺍﻟﺸﻌﻮﺭ ﺑﺎﻟﺮﺍﺣﺔ ﺃﺛﻨﺎﺀ ﺍﻟﻨﻮﻡ SLEEP (CANCEL) .ﳝﻨﺤﻚ ﺍﻟﺘﺸﻐﻴﻞ ﺑﻬﺬﻩ ﺍﻟﻄﺮﻳﻘﺔ ﺑﻴﺌﺔ ﻣﺮﻳﺤﺔ ﺃﺛﻨﺎﺀ ﺍﻟﻨﻮﻡ. ﺇﺫ ﺗﻘﻮﻡ ﺑﻀﺒﻂ ﺩﺭﺟﺔ ﺍﳊﺮﺍﺭﺓ ﻋﻠﻰ ﳕﻂ ﺍﻟﻨﻮﻡ ﺗﻠﻘﺎﺋﻴ ﹰ ﺎ ﺃﺛﻨﺎﺀ ﻓﺘﺮﺓ ﺗﻨﺸﻴﻂ ﺍﻟﻮﺿﻊ • .ﺳﻴﻌﺘﻢ ﻣﺆﺷﺮ ﺍﻟﻮﺣﺪﺓ ﺍﻟﺪﺍﺧﻠﻴﺔ ﺃﺛﻨﺎﺀ ﺗﻨﺸﻴﻂ ﻭﺿﻊ ﺍﻟﺘﺸﻐﻴﻞ ﻫﺬﺍ. ﻻ ﻳﺴﺘﺨﺪﻡ ﻫﺬﺍ ﺍﻟﻮﺿﻊ ﺇﺫﺍ ﻛﺎﻥ ﺳﻄﻮﻉ ﺍﳌﺆﺷﺮ ﻣﻌﺘﻤ ﹰ ﺎ •...
- Page 14 ...ﳌﻌﺮﻓﺔ ﺍﻛﺜﺮ ﻭﺿﻌﻴﺔ ﺍﻟﺘﺸﻐﻴﻞ .)ﺗﻠﻘﺎﺋﻲ(: ﻳﻮﻣﺾ ﻣﺆﺷﺮ ﺍﻟﻄﺎﻗﺔ ﺧﻼﻝ ﻋﻤﻠﻴﺔ ﻭﺿﻊ ﺍﻻﺧﺘﻴﺎﺭ AUTO .ﺗﺨﺘﺎﺭ ﺍﻟﻮﺣﺪﺓ ﻭﺿﻊ ﺍﻟﺘﺸﻐﻴﻞ ﻭﻓﻘﹰ ﺎ ﻟﺪﺭﺟﺔ ﺣﺮﺍﺭﺓ ﺍﻟﻐﺮﻓﺔ • AUTO .، ﺳﻮﻑ ﺗﺸﺘﻐﻞ ﺍﻟﻮﺣﺪﺓ ﺑﺪﺭﺟﺔ ﺣﺮﺍﺭﺓ ﺍﻟﺘﻬﻴﺌﺔ ﺍﻟﻘﻴﺎﺳﻴﺔ ﻋﻨﺪ ﺍﺧﺘﻴﺎﺭ ﺍﻟﻮﺿﻊ • ﺍﻹﻋﺪﺍﺩ ﺍﻟﻘﻴﺎﺳﻲ ﻟﺪﺭﺟﺔ ﺍﳊﺮﺍﺭﺓ ﻭﺿﻌﻴﺔ...
- Page 15 ﺗﻨﻈﻴﻒ ﻣﻜﻴﻒ ﺍﻟﻬﻮﺍﺀ .ﻳﺠﺐ ﺍﻟﻘﻴﺎﻡ ﺑﺎﻟﺘﻨﻈﻴﻒ ﻋﻠﻰ ﻓﺘﺮﺍﺕ ﻣﻨﺘﻈﻤﺔ ﻟﻀﻤﺎﻥ ﺃﺩﺍﺀ ﺃﻣﺜﻞ ﻟﻠﻮﺣﺪﺓ ﺍﻟﻮﺣﺪﺓ ﺍﻟﺪﺍﺧﻠﻴﺔ .ﺍﺳﺘﺸﺮ ﻭﻛﻴﻞ ﻣﻌﺘﻤﺪ ﺯﻋﻨﻔﺔ ﺍﻻﳌﻨﻴﻮﻡ ﺍﻟﻠﻮﺣﺔ ﺍﻷﻣﺎﻣﻴﺔ ﻗﺒﻞ ﺍﻟﺘﻨﻈﻴﻒ، ﻗﻢ ﺑﺈﻳﻘﺎﻑ ﺗﺸﻐﻴﻞ ﺍﻟﻮﺣﺪﺓ ﺛﻢ ﺍﻓﺼﻞ ﺍﻟﻮﺣﺪﺓ ﻣﻦ • .ﻗﺎﺑﺲ ﺍﻟﻜﻬﺮﺑﺎﺀ .ﻻ ﺗﻠﻤﺲ ﺷﻔﺮﺍﺕ ﺍﻷﳌﻨﻴﻮﻡ ﻷﻥ ﺍﻷﺟﺰﺍﺀ ﺍﳊﺎﺩﺓ ﻗﺪ ﺗﺴﺒﺐ ﺍﳉﺮﻭﺡ •...
- Page 16 ﺍﻟﺒﺤﺚ ﻋﻦ ﺍﻻﻋﻄﺎﻝ ﻭﺍﻻﺻﻼﺡ .ﻻﺗﺸﻴﺮ ﺍﻷﻋﺮﺍﺽ ﺍﻟﺘﺎﻟﻴﺔ ﺍﻟﻰ ﺣﺪﻭﺙ ﻗﺼﻮﺭ ﻓﻲ ﺍﻻﺩﺍﺀ ﺍﻟﺴﺒﺐ ﺍﻷﻋﺮﺍﺽ TIMER POWER .ﺑﻌﺪ ﺿﺒﻄﻪ ﻫﺬﻩ ﻫﻲ ﺍﳋﻄﻮﺓ ﺍﻷﻭﻟﻴﺔ ﻟﺘﺤﻀﻴﺮ ﺗﺸﻐﻴﻞ • .ﻗﺒﻞ ﺗﺸﻐﻴﻞ ﺍﻟﻮﺣﺪﺓ ﻳﻮﻣﺾ ﻣﺆﺷﺮ ، ﻗﺪ ﺗﺒﺪﺃ ﺍﻟﻮﺣﺪﺓ ﺑﺎﻟﻌﻤﻞ ﻋﻨﺪ ﺿﺒﻂ ﺍﳌﺆﻗﺖ ﻋﻠﻰ ﻭﺿﻊ ﺍﻟﺘﺸﻐﻴﻞ ﻣﺒﻜﺮ...
- Page 17 ...ﻋﻨﺪﻣﺎ ■ ﺟﻬﺎﺯ ﺍﻟﺘﺤﻜﻢ ﻋﻦ ﺑﻌﺪ ﻣﻔﻘﻮﺩ ﺃﻭ ﺍﻥ ﺧﻠﻞ ﻗﺪ ﺣﺪﺙ .١. ﺍﺭﻓﻊ ﺍﻟﻠﻮﺣﺔ ﺍﻷﻣﺎﻣﻴﺔ AUTO AUTO OFF / ON ﻣﺮﺓ ﻭﺍﺣﺪﺓ ﻟﺘﺸﻐﻴﻞ ﺍﻟﻮﺿﻊ ٢. ﺍﺿﻐﻂ ﻋﻠﻰ COOL AUTO OFF / ON ﺣﺘﻰ ﺗﺴﻤﻊ ﺻﻮﺕ ﺑﻴﺐ ﻭﺍﺣﺪ، ﺛﻢ ﺍﺭﻓﻊ ﻳﺪﻙ ﻻﺳﺘﺨﺪﺍﻣﻪ ﻓﻲ ﻭﺿﻊ ٣.
- Page 18 Provides fast cooling and maximum comfort. Use the remote control within 8 m from the remote control receiver on the indoor unit. Quick Guide Inserting the batteries Clock setting 1 Press , then press to set the time. 1 Pull out the back cover of remote control.
-
Page 19: Table Of Contents
Thank you for purchasing Panasonic Air Conditioner. Table of Contents .... Safety Precautions 20-27 ...... How to Use 28-29 ....To Learn More... Cleaning the Air Conditioner ....Troubleshooting 32-33 ......Information Accessories • Remote control • AAA or R03 batteries × 2 •... -
Page 20: Safety Precautions
Safety Precautions To prevent personal injury, injury to others or property damage, please comply with the following: WARNING Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below: This appliances is not intended for accessibility by the Indoor unit and outdoor unit general public. - Page 21 Use complete power supply cord without joining. In unavoidable circumstances that complete power supply CAUTION cord without joining is impossible, use an approved connection means (for example: socket and plug). Indoor unit and outdoor unit Power Air Conditioner Supply Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or Indoor Unit corrosion at the unit.
- Page 22 Safety Precautions Must always ensure that foreign matter (oil, WARNING water, etc.) does not enter the piping. Also, when storing the piping, securely seal the opening by pinching, taping, etc. (Handling of R32 is similar to R410A.) This appliance is filled with R32 •...
- Page 23 f) Precautions shall be taken to avoid 2. Servicing excessive vibration or pulsation to 2-1. Service personnel refrigerating piping. • The system is inspected, regularly supervised g) Ensure protection devices, refrigerating and maintained by a trained and certified piping and fittings are well protected service personnel who is employed by the against adverse environmental effects person user or party responsible.
- Page 24 Safety Precautions 2-3. Checking for presence of refrigerant 2-7. Checks to the refrigerating equipment • The area shall be checked with an • Where electrical components are being appropriate refrigerant detector prior to and changed, they shall be fit for the purpose and during work, to ensure the technician is aware to the correct specification.
- Page 25 3. Repairs to sealed components 6. Detection of flammable refrigerants • During repairs to sealed components, all • Under no circumstances shall potential electrical supplies shall be disconnected from sources of ignition be used in the searching or the equipment being worked upon prior to any detection of refrigerant leaks.
- Page 26 Safety Precautions 8. Removal and evacuation 9. Charging procedures • When breaking into the refrigerant circuit • In addition to conventional charging to make repairs – or for any other purpose procedures, the following requirements shall – conventional procedures shall be used. be followed.
- Page 27 e) If a vacuum is not possible, make a • The recovery equipment shall be in good manifold so that refrigerant can be working order with a set of instructions removed from various parts of the system. concerning the equipment that is at hand and f) Make sure that cylinder is situated on the shall be suitable for the recovery of flammable scales before recovery takes place.
-
Page 28: How To Use
How to Use To adjust airflow direction Upper direction AIR SWING Indicators Upper Direction: POWER • Do not adjust the flap by hand. TIMER * For details operation, refer “To Learn More..” JETSTREAM Lateral Direction: • For lateral direction, it is manually adjustable as Lateral shown. - Page 29 See "To Learn More..." for details. To maximise comfort while sleeping SLEEP (CANCEL) • This operation provides you with a comfortable environment while sleeping. It will automatically adjust the sleep pattern temperature during the activation period. • The indoor unit indicator will dim when this operation is activated. This is not applicable if the indicator brightness has been manually dimmed.
-
Page 30: To Learn More
To Learn More... Operation mode AUTO : During operation mode selection the POWER indicator blinks. • Unit selects the operation mode according to the room temperature. • Once AUTO mode is selected, the unit will operate at the standard setting temperature. Room temperature Operation mode Standard setting temperature... -
Page 31: Cleaning The Air Conditioner
Cleaning the Air Conditioner Cleaning has to be carried out at regular Indoor unit intervals to ensure the unit is at optimal Front panel Aluminium fin performance.Consult an authorised dealer. • Before cleaning, switch off the power supply and unplug the unit. •... -
Page 32: Troubleshooting
Troubleshooting The following symptoms do not indicate malfunction. Symptom Cause POWER indicator blinks before the unit is • This is the preliminary step to prepare for the TIMER switched on. operation after it has been set. When Timer is set ON, the unit may start earlier (up to 15 minutes) before the actual set time to achieve the desired temperature on time. - Page 33 When... ■ The remote control is missing or a malfunction has occurred 1. Raise the front panel. 2. Press AUTO OFF/ON once to use in AUTO mode. 3. Press AUTO OFF/ON until you hear 1 beep, then release to use in forced COOL mode.
- Page 34 Information/ ﺍﳌﻌﻠﻮﻣﺎﺕ ﻋﺮﺑﻲ ﺭﺍﺟﻊ ﺍﳌﻌﻠﻮﻣﺎﺕ ﺣﻮﻝ ﺟﻤﻊ ﻭﺍﻟﺘﺨﻠﺺ ﻣﻦ ﺍﳌﻌﺪﺍﺕ ﺍﻟﻘﺪﳝﺔ ﻭﺍﻟﺒﻄﺎﺭﻳﺎﺕ ﺍﳌﺴﺘﻌﻤﻠﻪ []ﻣﻌﻠﻮﻣﺎﺕ ﻋﻦ ﺍﻟﺘﺨﻠﺺ ﻓﻲ ﺍﻟﺒﻠﺪﺍﻥ ﺍﻻﺧﺮﻯ ﺧﺎﺭﺝ ﺍﻻﲢﺎﺩ ﺍﻻﻭﺭﺑﻲ ﺍﻥ ﻫﺬﻩ ﺍﻟﺮﻣﻮﺯ ﺗﺴﺘﻌﻤﻞ ﻓﻲ ﺍﻻﲢﺎﺩ ﺍﻻﻭﺭﺑﻲ، ﺍﺫﺍ ﺭﻏﺒﺖ ﻣﻦ ﺍﻟﺘﺨﻠﺺ ﻣﻦ ﻫﺬﻩ ﺍﳌﻮﺍﺩ ﻓﻴﺮﺟﻰ ﺍﻻﺗﺼﺎﻝ .ﺑﺎﻟﺴﻠﻄﺎﺕ ﺍﶈﻠﻴﺔ ﺍﻭ ﺍﻟﻮﻛﻴﻞ ﻭﺍﺳﺄﻝ ﻋﻦ ﺍﻟﻄﺮﻳﻘﺔ ﺍﻟﺼﺤﻴﺔ ﻟﻠﺘﺨﻠﺺ ﻣﻨﻬﺎ :(ﻻﺣﻆ...
-
Page 35: Information
English Information for Users on Collection and Disposal of Old Equipment and used Batteries [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. - Page 36 Panasonic Corporation 1006, Oaza Kadoma, Kadoma City, Osaka 571-8501, Japan Website: http://www.panasonic.com © Panasonic Corporation 2022 ACXF55-32390 FZ0222-0 Printed in Malaysia...
