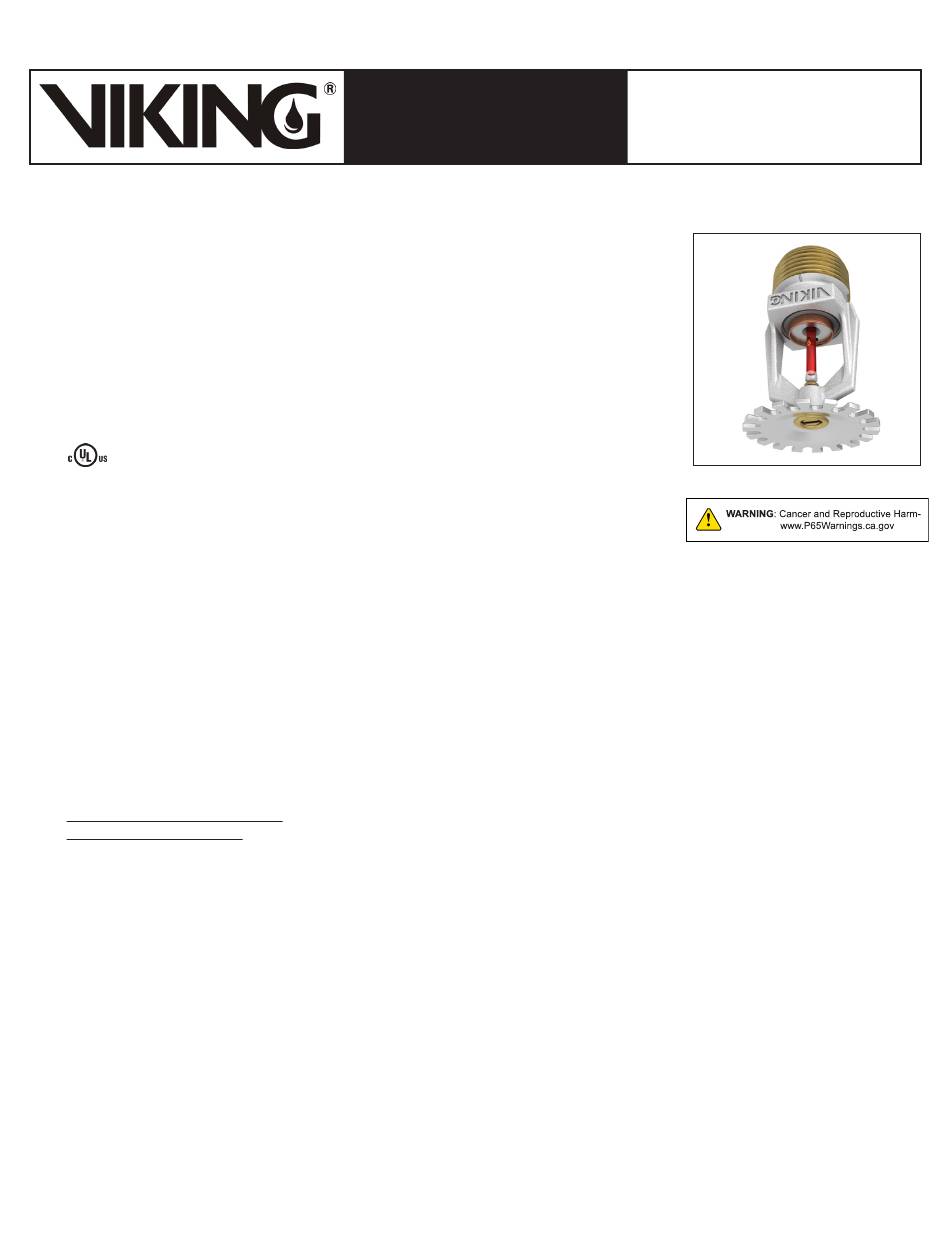

Viking VK534 Technical Data Manual

Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com
1. DESCRIPTION

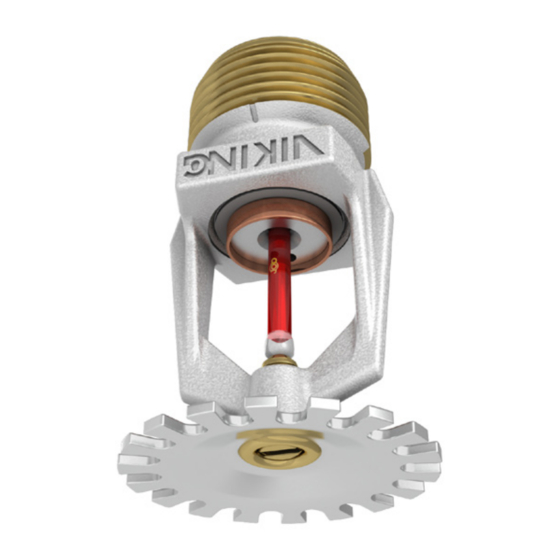

Viking EC/QREC Pendent Sprinkler VK534 is a thermosensitive spray sprinkler available in
several different finishes and temperature ratings to meet varying design requirements. The
extra-large orifice produces the flows required to meet Light and Ordinary Hazard density re-
quirements at lower pressures than standard orifice or large orifice sprinklers. The glass bulb
operating element and special deflector characteristics meet the challenges of quick response
extended coverage standards. Pendent Sprinkler VK534 is cULus Listed as standard and
quick response. The special Polyester
used in decorative applications where colors are desired. In addition, ENT coating has been
investigated for installation in corrosive atmospheres. See Approval Charts.
2. LISTINGS AND APPROVALS
cULus Listed: Category VNIV
Refer to Approval Chart 1 and Design Criteria cULus Listing requirements.
3. TECHNICAL DATA
Specifications:
Minimum Operating Pressure: Refer to the Approval Charts.
Maximum Working Pressure: 175 psi (12 Bar). Factory tested hydrostatically to 500 psi (34.5 bar).
Factory tested hydrostatically to 500 psi (34.5 bar).
Thread size: 3/4" (20 mm) NPT
Nominal K-Factor: 11.2 U.S. (161.3 metric
† Metric K-factor measurement shown is in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Glass-bulb fluid temperature rated to -65 °F (-55 °C)
Overall Length: 2-3/8" (61 mm)
Material Standards:
Sprinkler Frame: Brass UNS-C84400
Deflector: Brass UNS-C26000
Bulb: Glass, nominal 3 mm diameter
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
Screw: Brass UNS-C36000
Pip Cap and Insert Assembly: Copper UNS-C11000 and Stainless Steel UNS-S30400
For Polyester Coated Sprinklers: Belleville Spring-Exposed
For ENT Coated Sprinkler: Belleville Spring-Exposed, Screw and Pipcap-ENT plated.
Ordering Information: (Also refer to the current Viking price list.)
Order Viking EC/QREC Pendent Sprinkler VK534 by first adding the appropriate suffix for the sprinkler finish and then the appro-
priate suffix for the temperature rating to the sprinkler base part number.
Finish Suffix: Brass = A, Chrome = F, White Polyester = M-/W, Black Polyester = M-/B, and ENT = JN
Temperature Suffix: 135 °F (57 °C) = A, 155 °F (68 °C) = B, 175 °F (79 °C) = D, 200 °F (93 °C) = E, and 286 °F (141 °C) = G
For example, sprinkler VK534 with a Brass finish and a 155 °F (68 °C) temperature rating = Part No. 08340AB
Available Finishes And Temperature Ratings:
Refer to Table 1.
Accessories: (Also refer to the Viking website)
Sprinkler Wrenches:
A. Standard Wrench: Part No. 05118CW/B (available since 1981)
B. Wrench for recessed pendent sprinkler: Part No. 11663W/B
**A ½" ratchet is required (not available from Viking).
Sprinkler Cabinets:
A. Six-head capacity: Part No. 01724A (available since 1971)
B. Twelve-head capacity: Part No. 01725A (available since 1971)
4. INSTALLATION
Refer to appropriate NFPA Installation Standards.
Form No. F_051393 Rev 01
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
and Electroless Nickel PTFE (ENT)
)
†
April 2023
STANDARD/QUICK RESPONSE
coatings can be
(available since 2001)
**
Page 1 of 6
EXTENDED COVERAGE
PENDENT SPRINKLER
VK534 (K11.2)
NOTE: As of May 2018 all logos have been re-
moved from the wrench boss.
Replaces Form F_051393 Rev 19.1
(added venting statement.)
