Viking MODEL M Quick Start Manual

March 21, 1996
1. PRODUCT NAME
Viking Model M
Quick Response
Dry Upright Sprinkler
Manufactured since 1993.
2. MANUFACTURER
THE VIKING CORPORATION
210 N. Industrial Park Road
Hastings, Michigan 49058 USA
Telephone: (616) 945-9501
(800) 968-9501
Fax No: (616) 945-9599
From outside U.S.A.
Telephone: +1 (616) 945-9501
Fax Number: +1 (616) 945-9599
3: PRODUCT DESCRIPTION

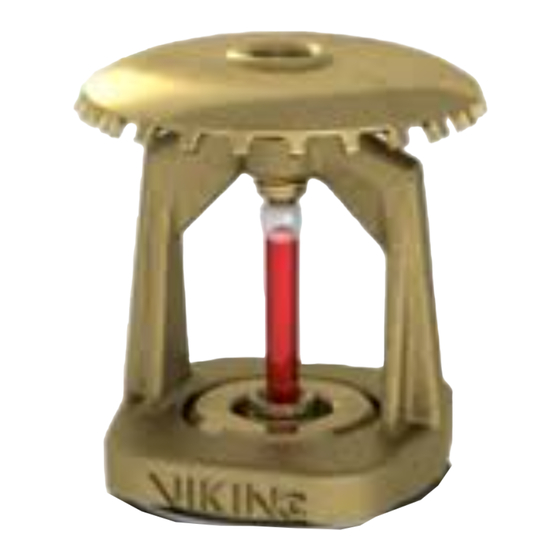

The Viking Model M Quick Response
Dry Upright Sprinkler is an assembly
consisting of a thermo-sensitive glass
bulb spray sprinkler permanently se-
cured to a special supply nipple.
The Upright Sprinkler frame and deflec-
tor are of the Model M design, equipped
with a rugged 3 mm glass bulb that
meets the response criteria for Quick
Response sprinklers. The sprinkler is
available in several temperature ratings
to meet design requirements.
The special supply nipple is designed to
prevent water from entering the nipple
before the sprinkler operates. This fea-
ture makes the Dry Upright Sprinkler
suitable for use in unheated spaces
above ceilings of heated
equipped with wet sprinkler systems.
Model M Quick Response Dry Upright
Sprinklers may be installed on wet sys-
tems, dry systems, or preaction sys-
tems.
A chrome escutcheon is provided with
each sprinkler, to cover the ceiling pene-
tration (see Figure 1). Model M Dry Up-
right Sprinklers feature a sealed brass
inlet and a durable threaded steel barrel
with an Electrodeposited Epoxy Base
coating.
Thread Nominal
Size Orifice
N.P.T. Inches MM
1 inch 1/2 15
4
Minimum length ("B" Dimension) = 4-1/2 inches (114,3mm). Maximum standard length ("B" Dimension) = 49-1/2 inches (1257,3mm).
5
This Chart shows the listings and approvals available at the time of printing. Other approvals are in process. Check with the
manufacturer for any additional approvals.
6
Base part number shown. For complete part number, see price list.
7
Metric K Factor shown is for use when pressure is measured in kPa. When pressure is measured in BAR, multiply the metric K factor
shown by 10.0.
8
Acceptance for use by the City of New York Department of Buildings is pending.
Note: Units of measure in parentheses may be approximations.
Form No. F_031693
R
TECHNICAL DATA
The seal at the threaded end of the
assembly is held in place by force trans-
mitted from the compression screw,
through the glass bulb and internal parts,
onto a special sealing spring. During fire
conditions, the heat sensitive liquid in
the glass bulb expands, causing the
glass to shatter, releasing the internal
parts to open the waterway. Water flowing
through the sprinkler orifice strikes the
sprinkler deflector forming a uniform spray
pattern to extinguish or control the fire.
Viking Dry Upright Sprinklers may be or-
dered, in 1/2" (12,7mm) increments, in
lengths ("B" dimension) from
(114,3mm) to 49-1/2" (1257,3mm) long * .
(See Ordering Information.)
*
Lengths over 49-1/2" (1257,3mm) are available,
with no approvals, on a "made to order" basis.
Contact manufacturer.
4. TECHNICAL DATA
See chart (this page) for list of approvals.
Approved to maximum length of 49-1/2"
(1257,3mm).
Glass Bulb Fluid Temperature rated to
o o
-65 F (-55
Rated to 175 PSI (1207 kPa) water work-
ing pressure.
Thread Size: 1" NPT.
Orifice Size: Nominal 1/2" (15mm).
K Factor: 5.5 U.S. (7,93 metric)
approved lengths).
Minimum operating pressure: 7 PSI
(48,3 kPa).
rooms
Sprinkler
Temperature
Classification
Ordinary
Ordinary
Intermediate
Intermediate
High
1
Based on National Fire Prevention and Control Administration Contract No. 7-34860.
2
Based on NFPA-13. Other limits may apply depending on fire loading, sprinkler location and other
authority having jurisdiction requirements. Refer to specific installation standards.
3
Frames of decorative sprinklers are not color coded. Temperature rating is stamped on deflector.
Quick Response
Dry Upright Sprinkler
Dry Upright Nominal
Style K Factor
6
Description Base P/N U.S. Metric
Plain Barrel 08417 5.5
FOOTNOTES
4-1/2"
C)
7
(all
Ceiling Temperature at Sprinkler
Nominal Sprinkler
Max. Ambient
Temperature Rating
(Fusing Point) Temp. Allowed
o
o o
135 F (57 C) 115 F (46
o o o
155 F (68 C) 135 F (57
o o o
175 F (79 C) 155 F (68
o o o
200 F (93 C) 180 F (82
o o o
286 F (141 C) 266 F (130
Model M
4
Order Length
Increment
7
Inches mm UL
7,93 1/2 12,7 Yes
Sprinkler 107 a
MODEL M
QUICK RESPONSE
DRY UPRIGHT
SPRINKLER
Max. Recommended Bulb
1 2
Ambient Temp. Color
o o o
C) 100 F (38 C) Orange
o o o
C) 100 F (38 C) Red
o o o
C) 150 F (65 C) Yellow
o o o
C) 150 F (65 C) Green
o o o
C) 225 F (107 C) Blue
Approval
8
ULC FM NYC VDS
Yes -- --
Replaces page 107 a-c dated June 11, 1993
(Added ULC listing)
Color
3
Coding
None
None
White
White
Blue
5
LPC
-- --
