1. DESCRIPTION
Viking Freedom
Residential Concealed Horizontal Sidewall Sprinkler VK490
®
is a small high-sensitivity solder link and lever residential sprinkler designed for
installation on concealed pipe systems, where the appearance of a smooth wall is
desired. The sprinkler orifice design, with a K-Factor of 5.8 (83.6 metric*), allows
the sprinkler's efficient use of available water supplies for the hydraulically designed
fire-protection system. The operating element and special deflector characteristics
meet the challenges of residential sprinkler standards.
The sprinkler is hidden from view by a low profile, small diameter cover plate
installed flush to the wall. The cover plate is available in several decorative finishes
to meet design requirements. The two-piece design allows installation and testing of
the sprinkler prior to installation of the cover plate. After the system has been tested
and wall finish has been applied, the push-on design of the cover plate assembly
allows easy installation of the cover plate with up to 1/4" (6.4 mm) adjustment.
Sprinkler VK490 is provided with a pipe guide to properly locate the sprinkler and
allow the 1/4" adjustment of the cover plate.
2. LISTINGS AND APPROVALS
UL Listed (C-UL-US-EU): Category VKKW (VK490)
Refer to the Approval Chart and Design Criteria for C-UL-US-EU Listing
requirements that must be followed.
3. TECHNICAL DATA
Specifications:
Available since 2016.
Minimum Operating Pressure: Refer to the Approval Chart.
Maximum Working Pressure: 175 psi (12 bar). Factory tested hydrostatically to 500 psi (34.5 bar).
Thread size: 1/2" (15 mm) NPT
Nominal K-Factor: 5.8 U.S. (83.6 metric*)
* Metric K-factor measurement shown is in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Available Cover Plate Horizontal Adjustment: 1/4" (6.4 mm)
Overall Length (Sprinkler Body): 2" (50 mm)
Covered by the following U.S. Patent numbers: 7,854,269; 7,712,218 and 8,960,319
Material Standards:
Sprinkler Body: QM Brass and Brass UNS-C84400
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with Polytetrafluoroethylene (PTFE) Tape
Seat: UNS-C31400 or Brass UNS-C31600, ENT coating available upon request
Deflector Ring: Brass UNS-C23000
Deflector Pins: Stainless Steel UNS-S30200
Halo: Phosphor Bronze UNS-C51000, e-coating available upon request
Flow Shaper: Phosphor Bronze UNS-C51000
Lever Bar Ring: Brass UNS-C84400 or UNS-C31600
Compression Screw: 18-8 Stainless Steel
Fusible Link Assembly: Nickel Alloy and Eutectic Solder
Fusible Link Levers: Stainless Steel UNS-S31600
Guide Pin: Stainless Steel UNS-S43000, ENT coating available upon request
Shipping Cap: Polyethylene
Cover Assembly Materials:
Cover Plate Assembly: Copper UNS-C11000 and Brass UNS-C26800
Spring: Beryllium Nickel
Solder: Eutectic
Ordering Information: (Also refer to the current Viking price list.)
Viking Freedom
Residential Concealed HSW Sprinkler VK490 and Cover Plate Assembly must be ordered separately:
®
Sprinkler: Base Part No. 20409.
Finish Suffix: Brass = A
Temperature Suffixes: 165 °F (74 °C) = C, 205 °F (96 °C) = E
Form No. F_032116
Rev 01
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Visit the Viking website for the latest edition of this technical data page.
September 7, 2022

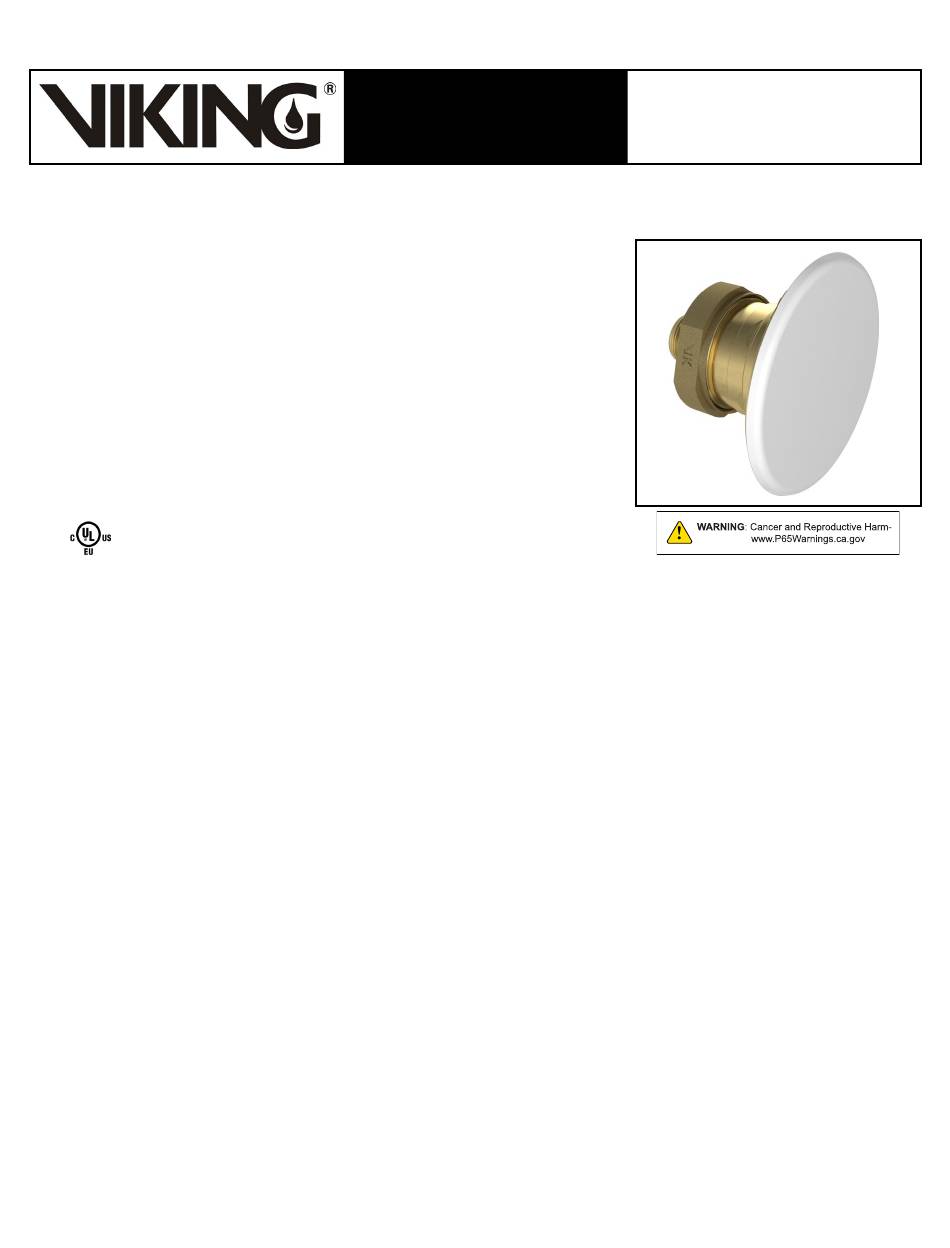

FREEDOM
RESIDENTIAL
®
CONCEALED HORIZONTAL
SIDEWALL SPRINKLER VK490
(K5.8)
Replaces Form No. F_032116 Rev 22.1
(Updated UL cover plate temperature rating.)
Page 1 of 7
