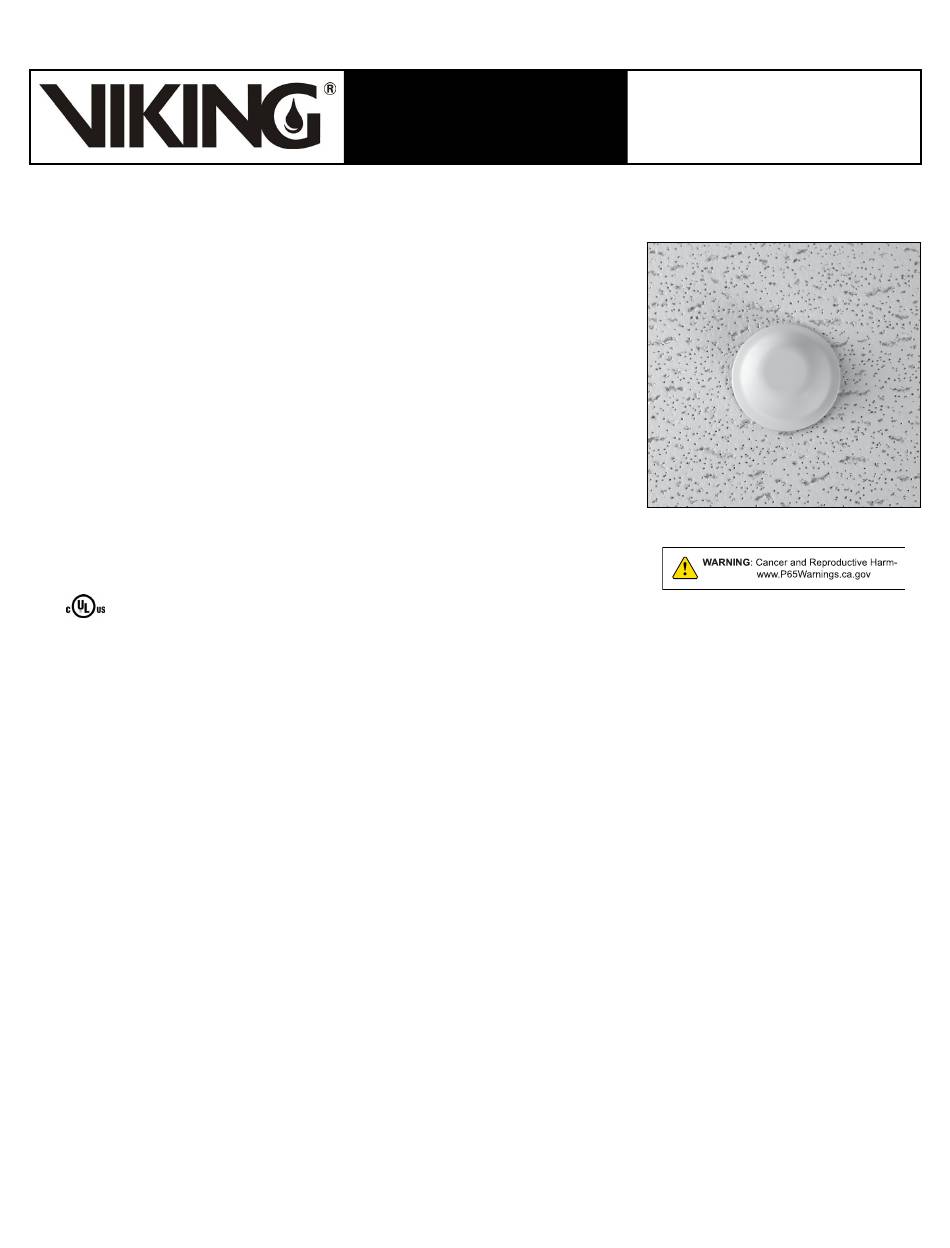

Standard/quick response extended coverage dry concealed pendent sprinkler
Hide thumbs

Advertisement

Table of Contents

Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com
1. DESCRIPTION
Viking Standard Response/Quick Response Extended Coverage Dry Concealed
Pendent sprinklers are thermosensitive spray sprinklers, suitable for use in areas
subject to freezing. The sprinklers are designed for dry systems and preaction sys-
tems where it is necessary to prevent water or condensation from entering the drop
nipple before sprinkler operation. They may also be installed in spaces subject to
freezing and supplied from a wet system in an adjacent heated area.
The dry concealed sprinkler is pre-assembled with a threaded adapter for installa-
tion with the domed cover that provides up to ½" (13 mm) of vertical adjustment.
The push-on, thread-off cover slips on from below the ceiling to allow installation of
the sprinkler prior to ceiling construction.
Viking Standard Response Dry Concealed Pendent Sprinklers are available in vari-
ous finishes and temperature ratings to meet design requirements. The Electroless
Nickel PTFE (ENT) coating has been investigated for installation in corrosive at-
mospheres and is cULus Listed as corrosion resistant as indicated in the Approval
Chart. The ENT finish is only available for the sprinkler assembly, the cover plate is
not plated.
2. LISTINGS AND APPROVALS
cULus Listed: Category VNIV
NYC Approved: MEA 89-92-E, Volume 37
Refer to the Approval Chart and Design Criteria for cULus Listing requirements that must be followed.
NOTE: Dry concealed sprinklers are NOT for use in freezers or with the dry sprinkler seal.
3. TECHNICAL DATA
Specifications:
Available since 2003.
Minimum Operating Pressure: 7 psi (0.5 bar)
Maximum Working Pressure: 175 psi (12 bar). Factory tested hydrostatically to 500 psi (34.5 bar)
Thread size: 1" NPT or 25 mm BSPT
Nominal K-Factor: 5.6 U.S. (80.6 metric*) for all listed and approved lengths.
* Metric K-factor measurement shown is when pressure is measured in Bar. When pressure is measured in kPa, divide the metric K-factor shown
by 10.0.
Glass-bulb fluid temperature rated to -65 °F (-55 °C)
Covered by the following U.S. Patents: 8,636,075 and 10,220,231
Material Standards:
Frame Casting: Brass UNS-C84400
Deflector: Phosphor Bronze UNS-C51000 or Brass UNS-C26000
Bulb: Glass, nominal 3 mm diameter
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
Compression Screw: Brass UNS-C36000
Pip Cap: Brass UNS-C36000
Pip Cap Adapter: Brass UNS-C36000
Orifice: Copper UNS-C22000
Tube: ERW Hydraulic Steel Tube
Support (Internal): Stainless Steel UNS-S30400
Barrel: Steel Pipe UNS-G10260, Electrodeposited Epoxy Base finish
Barrel End and Threads: QM Brass
Cover Adapter: Cold Rolled Steel UNS-G10080, Finish: Clear Chromate over Zinc Plating
Cover Assembly Materials:
Cover Plate Assembly: Copper UNS-C11000 and Brass UNS-C26800
Form No. F_092203
Rev 01
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
September 2023
STANDARD/QUICK
RESPONSE EXTENDED
COVERAGE DRY CONCEALED
PENDENT SPRINKLER VK196
For Light Hazard Occupancies Only
Replaces Form No. F_092203 Rev 20.1
(Updated 135F cover plate temp. to 139F.)
Page 1 of 7
