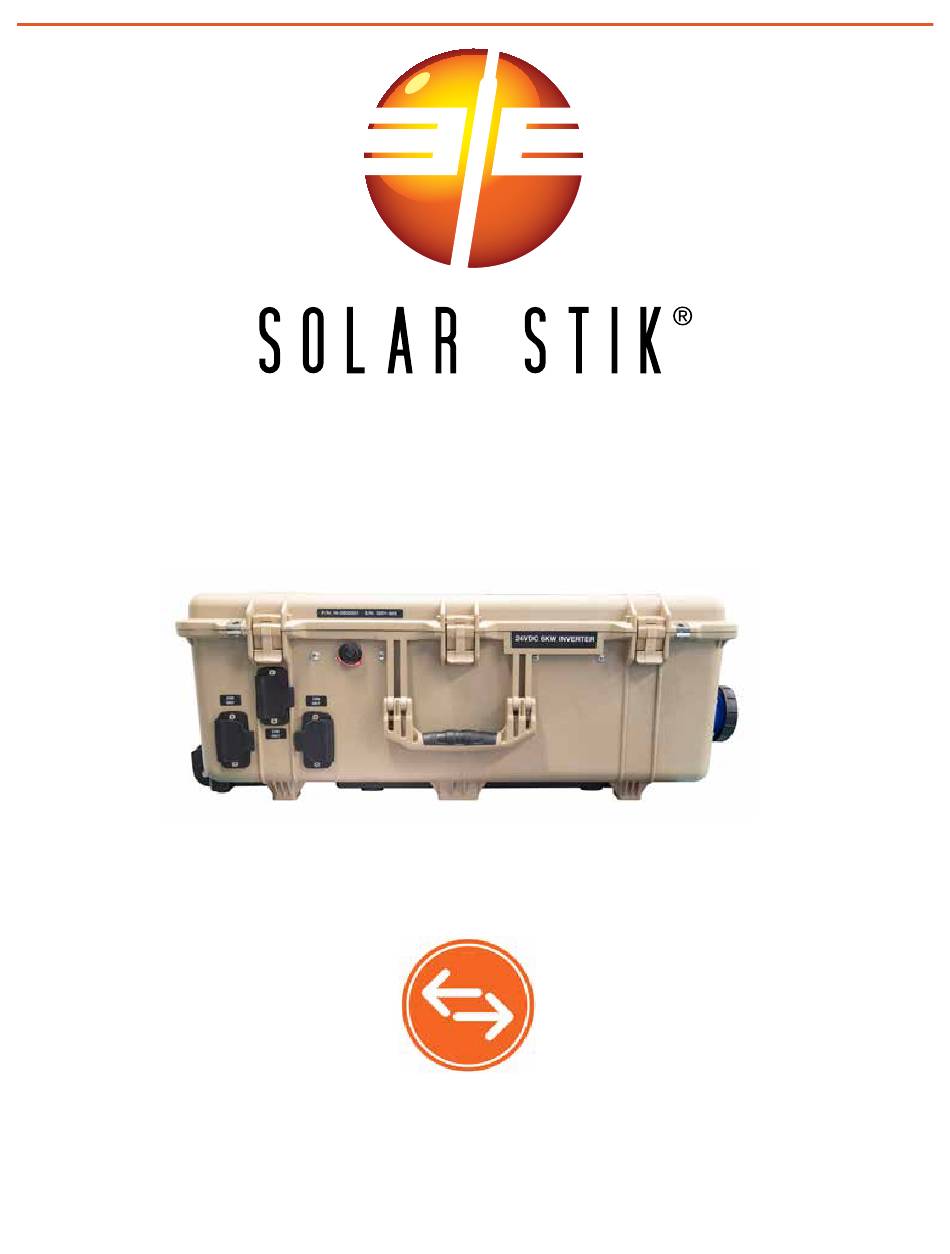

- Page 1 Operator and Maintenance Manual for 6kW Inverter OPERATOR MANUAL FOR THE 6KW INVERTER P/N 16-0503201 DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited. Version 1.0 Updated:20231128 November 2023 Solar Stik ® , Inc.
-
Page 2: Table Of Contents
Transporting Components ..........14 ABOUT SOLAR STIK, INC. -
Page 3: Important Product Safety Information And Instructions
Close and latch and/or lock the cases when the equipment is unattended. The equipment is eld serviceable to a limited degree. If repair is needed, contact Solar Stik, Inc. or your eld service representative (FSR) for assistance in diagnosis and identi cation of the proper repair and parts. -
Page 4: Limitations On Liability
Since the use of this manual and the conditions or methods of operation, use, and maintenance of this product are beyond the control of Solar Stik, this company does not assume responsibility and expressly disclaims liability for loss, damage, or expense—whether direct, indirect, consequential, or incidental—arising out of or anyway connected with such operation, use, or maintenance. -
Page 5: Electric Shock Hazard
Extreme care should be taken to protect against electrocution. Always work with another person in case an emergency occurs. Disconnect power before performing maintenance. Wear safety glasses whenever working on any part of a System that requires exposure to mechanical or direct electrical contacts. November 2023 Solar Stik ® , Inc. -
Page 6: Environmental And Handling Precautions
Operator and Maintenance Manual for 6kW Inverter Environmental and Handling Precautions All Solar Stik components are ruggedized, yet there are a few things the operator can do to prevent failures and prolong the operational life of the product. Water All Solar Stik equipment is designed for outdoor •... -
Page 7: The Inter-Connect System
All of the individual Solar Stik components that operate in these categories utilize a unique connection architecture, know as the Inter-Connect Circuit. The Inter-Connect Circuit is the skeletal backbone of the Solar Stik System’s DC power network, and it uses a simple, polarized, locking connection that is common throughout the architecture. All Solar Stik components, including Power Managers, Energy Storage, and Generation are compatible with the Inter-Connect Circuit. - Page 8 24 VDC connection only • Mechanically “locks” into place • Rotate knob clockwise to lock, • counterclockwise to release Can be repaired or modi ed in the eld • Figure 1. Inter-Connect Plug November 2023 Solar Stik ® , Inc.
-
Page 9: General Information, Equipment Description, And Theory Of Operation Introduction

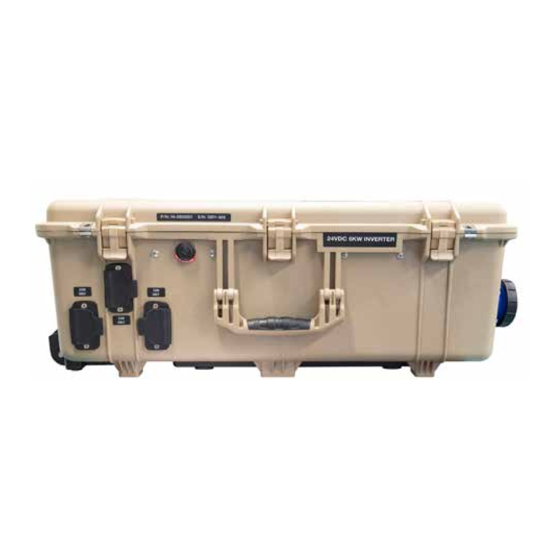

LCD control panel located on the inside of the module. Features and Functions Figure 2. 6kW Inverter front exterior Description Connector Voltage Amps A 24 VDC ESM (x3) Inter-Connect Port 24 VDC 100 A B Automatic pressure release November 2023 Solar Stik ® , Inc. - Page 10 Operator and Maintenance Manual for 6kW Inverter Figure 3. 6kW Inverter right side exterior Description Connector Voltage Amps AC OUTPUT 230 VAC (NEMA 5-20R) 230 VAC 25 A Intake Vents Exhaust Vents Figure 4. 6kW Inverter left side exterior November 2023 Solar Stik ® , Inc.
-
Page 11: Operating Procedures
Inverter to the DC bus via an Inter-Connect strip or a PRO-Verter, depending on the System. Connect all loads to the 230 VAC Output. Please refer to the System Diagrams provided by Solar Stik on speci c connections. Figure 5. 6kW Inverter LCD display panel and control The Inverter’s Power Saver Auto setting is factory set to detect loads for 250 ms every 3... -
Page 12: Maintenance Instructions Preventive Care And Maintenance
Ensure that the leading edge of the louvers are facing downward. Re-attach the fan shroud by securing with the original four screws. November 2023 Solar Stik ® , Inc. -
Page 13: Transporting Components
There are no transport restrictions for these components, which are safe for all modes of transportation, including land, sea, and air. Figure 6. 6kW Inverter left side view of wheels used for transport November 2023 Solar Stik ® , Inc. - Page 14 Pure Sine Wave Connections Input(s) (2) 24 VDC Inter-Connect port* Output(s) (1) 230 VAC (NEMA 5-20R) *Deltran 224-0061-BK Safety Breaker(s) Overvoltage Protection Overcurrent Circuit Breaker Protection Overtemperature Warning alarm and overtemperature Protection shut down November 2023 Solar Stik ® , Inc.
-
Page 15: About Solar Stik, Inc
• Solar Stik New Equipment Training (on site) teaches Hybrid System con guration options with hands-on deployment of actual systems to enhance student understanding. Solar Stik Training Courses are tailored to the speci c needs of the students. To schedule Solar Stik Training or to learn more about the curriculum, please contact us.
