Summary of Contents for Jaeger-leCoultre 868

  • Page 1: Table Of Contents

    Table of Contents Introduction Accuracy and precautions for use Water resistance “1000 Hours Control” test Technical specifications Movement Functions and displays International Guarantee Limited Warranty (United States of America and Canada) Guarantee for Australia Jaeger-LeCoultre Customer Service...

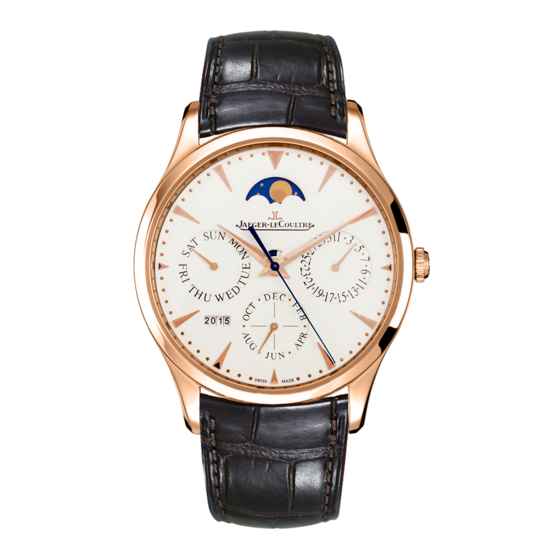

  • Page 2 1 Moon phases 2 Minute hand 3 Aperture indicating the security zone 4 Crown 5 Date 6 Month 7 Year 8 Corrector 9 Second hand 10 Day 11 Hour hand...

  • Page 3: Introduction

    Introduction We would like to thank you for the confidence you have placed in Jaeger-LeCoultre. Our Maison has applied all its expertise and exacting standards to the creation of this model. We invite you to consult the operating instructions and hope your Jaeger-LeCoultre timepiece brings you great joy.

  • Page 4: Water Resistance

    If you observe a discrepancy in the way your watch runs, we advise you to entrust it to an authorised Jaeger-LeCoultre retailer who will make the necessary adjustments. Watches with mechanical movements must not be used for sports involving significant risk of impact or abrupt actions, such as golf or tennis.
  • Page 5 - have the watch’s water resistance checked by an authorised Jaeger-LeCoultre retailer at least once every two years. It is essential to have such a check carried out each time...

  • Page 6: 1000 Hours Control" Test

    Also, note that leather straps are not suited for aquatic activities. “1000 Hours Control” test The Jaeger-LeCoultre Manufacture pays close attention to the quality and to the final checks of its watches. The 1000 Hours Control is a series of internal...

  • Page 7: Technical Specifications

    Technical specifications - Self-winding mechanical movement, Jaeger-LeCoultre Calibre 868. - 28,800 vibrations/hour. - Power reserve: approximately 38 hours.

  • Page 8: Movement

    Movement Jaeger-LeCoultre Calibre 868. Functions and displays The watch offers the following functions: - Hours - Minutes - Seconds - Date - Day - Month - Year - Moon-phases - Perpetual Calendar - Security zone indication...
  • Page 9 The perpetual calendar has a mechanism that takes into account the length of the current month (28, 30 or 31 days), and counts a 29th February every leap year. The date, day of the week, month, year, and moon phase are therefore indicated mechanically, without the slightest need for readjustment until 1 March 2100.
  • Page 10 centuries is divisible by 4. Such is the case for the years 2000 and 2400 (centuries divisible by 4), which are both regular leap years. It is therefore only in the year 2100 that the programming of your perpetual calendar will need to be corrected.

  • Page 11: Use

    WINDING Your Master Ultra Thin Perpetual watch is equipped with a 38-day power reserve, during which time it can operate without any addi- tional winding. Crown in position 0. A few clockwise turns of the crown are enough to set the watch running. It will then automat- ically wind up when you wear it.
  • Page 12 SETTING THE HOURS AND MINUTES Pull the crown out to position 1. Move the hands clockwise until the desired time is displayed. When the hands are display- ing times during the night between 8 p.m. and 4 a.m., with what is known as the security zone in red, you must never: - Turn back the hour or minute hands.
  • Page 13 Ultra Thin Perpetual watch to an authorised watchmaker, so as to have the year plate set to position “21”, while the necessary adjustments are made to the date and the moon phase. SIMULTANEOUS CALENDAR (DAY, DATE, MONTH, AND YEAR) AND MOON PHASE ADJUSTMENT This operation is entirely controlled by a sin- gle corrector located at 8 o’clock, which can be operated via the corrector tool supplied with...
  • Page 14 the date backward. If the calendar is acciden- tally moved forward beyond the current date, you have two options: - Wait for the power-reserve to run out. The watch will stop. - Wait until the day of the inadvertently pro- grammed date before winding the watch.
  • Page 15 ADJUSTING THE WATCH WHEN CHANGING TIME ZONES (OR WHEN SWITCHING FROM DAYLIGHT SAVING TIME TO WINTER TIME AND VICE VERSA) Pull the crown out to position 1. - If you are travelling towards the East, move the hour forward to display the new local time. - If you are travelling towards the West, turn the hands back, but without ever going beyond 4 a.m., at which point the red security zone...
  • Page 16 - You can also use the corrector push-piece to move the date forward. When changing date while travelling towards the East, you move back to the previous day: In this case, however, the watch will indicate one day earlier. This date display error can be corrected by twice turning the hands back by 12 hours each time, so as not to go back beyond the security zone (i.e.

  • Page 17: International Guarantee

    Manufacturer’s Guarantee for Australia, Jaeger- LeCoultre products must be purchased exclu- sively from authorised Jaeger-LeCoultre retail- ers or from Jaeger-LeCoultre Boutiques. Main- tenance and repair work must be entrusted to an authorised Jaeger-LeCoultre retailer, a Jaeger-LeCoultre Boutique, or an authorised Jaeger-LeCoultre Service Centre.
  • Page 18 TERMS AND CONDITIONS OF AEGER-LE OULTRE INTERNATIONAL GUARANTEE Your Jaeger-LeCoultre watch is guaranteed to protect against all manufacturing defects for two years from the date of purchase, subject to the following conditions. Any part found by our technical services to be defective as a re-...
  • Page 19 Jaeger-LeCoultre, unau- thorised alteration or repair, the consequences of normal wear and ageing of the watch, strap, or glass, the loss of water resistance after two...
  • Page 20 Centre (for further information please see your User Manual). For quartz watches, this guarantee does not cover the battery life. As a consumer, you may have legal rights un- der applicable national legislation governing the sale of consumer goods; those rights are not affected by this guarantee.

  • Page 21: Limited Warranty (United States Of America And Canada)

    Any part found by our tech- nical services to be defective as a result of a manufacturing defect will, at the sole discretion of Jaeger-LeCoultre, be repaired or replaced free of charge. The Jaeger-LeCoultre Limited Warranty is valid only if the warranty certificate...
  • Page 22 Jaeger-LeCoultre, unauthorised alteration or repair, the consequences of nor- mal wear and ageing of the watch, strap, or...
  • Page 23 Jaeger-LeCoultre shall not be liable, by virtue of this Limited Warranty or otherwise, for any loss or damage arising out of the use of or in-...
  • Page 24 or consequential damages relating in any way to this watch. Some States, Provinces, and Territories do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not ap- ply to you.

  • Page 25: Guarantee For Australia

    This Jaeger-LeCoultre Guarantee gives you additional rights and remedies under the Aus- tralian Consumer Law and any other laws in relation to the goods. Every Jaeger-LeCoultre product is made and tested to meet the Jaeger-LeCoultre quality standards. Neverthe-...
  • Page 26 Jaeger-LeCoultre retailers or Jaeger-LeCoultre Boutiques are entitled to provide a guarantee service as defined in this Jaeger-LeCoultre Guarantee. In order to bene- fit from this guarantee, you will be required to present this Jaeger-LeCoultre guarantee cer- tificate duly completed, dated, stamped, and signed by an authorised Jaeger-LeCoultre re- tailer or a Jaeger-LeCoultre Boutique.
  • Page 27 It is essential to have the wa- ter resistance checked by an authorised Jaeger- LeCoultre retailer, a Jaeger-LeCoultre Boutique, or an authorised Jaeger-LeCoultre Service Cen- tre at least every two years, and in any event, pri-...
  • Page 28 In Australia, a claim under the Jaeger-LeCoultre Guarantee may be sent to Richemont Australia Pty Ltd, provider of the guarantee service, at...

  • Page 29: Jaeger-Lecoultre Customer Service

    Maintenance and repair work must be entrust- ed to an authorised Jaeger-LeCoultre retailer, a Jaeger-LeCoultre Boutique, or authorised Jaeger-LeCoultre Service Centre. The list of our points of sale and service centres is available on our website: www.jaeger-lecoultre.com. You will also find this information at the end of this document, under the heading “Where to en-...
  • Page 30 Jaeger-LeCoultre Manufacture, and have the workshops, tools, and parts required for the repair and mainte- nance of Jaeger-LeCoultre watches and clocks. In certain cases, especially for operations re- quiring special tools and parts, the Service Centres will send your watch to the Jaeger- LeCoultre Manufacture in Switzerland to have the necessary work carried out.

This manual is also suitable for:

Master ultra thin moon
