INTERFACE UNIT

TABLE OF CONTENTS

... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
2
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
3
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
3
3
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
3
4
5
6
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
7
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
OPERATING INSTRUCTIONS
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
DI-1616
... ... ... ...
10
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
8
8
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DI-1616 and is the answer not in the manual?

Questions and answers

Related Manuals for Toa DI-1616

Summary of Contents for Toa DI-1616

  • Page 1: Table Of Contents

    … … … … … … … … … … … … … … … … … … DI-1616 … … … … … … … … … … … … … … … … … … … … … … … … … … … …...

  • Page 2: Safety Precautions

    AC outlet. Then, contact your nearest TOA dealer. Make no further attempt to operate the unit in this condition as this may cause fire or electric shock.

  • Page 3: General Description

    2. GENERAL DESCRIPTION The DI-1616 is a dedicated interface unit for the power amplifiers P-1030D, P-1060D, P-1090D, IP-300D, IP-450D and IP-600D. The power amplifiers' operating conditions and signal levels can be monitored and adjusted at the personal computer. The P-1030D, P-1060D and P-1090D require an interface module which is optionally available.

  • Page 4: Part Names And Functions

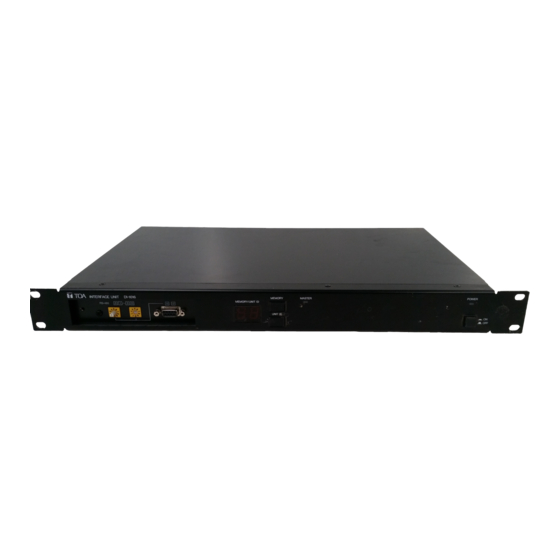

    6. PART NAMES AND FUNCTIONS [ Front Panel ] ⑥ ① Power switch [ON/OFF] If the power is switched on, the power indicator lights and the unit is set for the mode it was last in before the power was switched off. ②...

  • Page 5: Rear Panel

    [0][0]. Use this port to connect equipment when using two or more DI-1616 units or when interlocking the DI-1616 with the DP-0202, DP-0204 or DX-0808. Refer to p. 6 "7. PERSONAL COMPUTER CONNECTIONS" for connection, and to p. 8 "8. UNIT NUMBER AND COMMUNICATIONS PORT SETTINGS"...

  • Page 6: Personal Computer Connections

    RS-485 ● Use this port when using only one DI-1616 and the distance to the computer exceeds 10 m or when using plural DI-1616s or when using the DI-1616 in combination with the DP-0202, DP-0204, and/or DX-0808. 7.1 When using the RS-232C Because only one unit is connected, the unit number is 1.

  • Page 7: When Using The Rs-485

    7.2 When using the RS-485 Because multiple units are controlled, a unit number must be preset for each unit. To preselect the DI-1616 as unit No. 1, set DIP switches in the front compartment for [0][1]. Refer to p. 8 "8. UNIT NUMBER AND COMMUNICATIONS PORT SETTINGS"...

  • Page 8: Unit Number And Communications Port Settings

    8. UNIT NUMBER AND COMMUNICATIONS PORT SETTINGS When using two or more DI-1616s or when using the DI-1616 together with the DP-0202, DP-0204 (both digital processors) and/or DX-0808 (matrix unit), different numbers must be given to different equipments so that the personal computer transmits data to each connected equipment. This number is a unit number, which must be preset in consecutive numbers of 1-30.

  • Page 9: Appearance

    10. APPEARANCE Unit: mm 4-6 x 10...

  • Page 10: Specifications

    11. SPECIFICATIONS Power Source Frequency Characteristics Distortion Control/Monitoring Level Control Monitoring Memory Interface Standard Memory/Unit No. Display Master Display PC Software Finish Dimensions Weight * 0 dB = 0.775 V Notes • The design and specifications are subject to change without notice for improvement. •...
  • Page 12 133-12-507-20...
