Foscam D4Z User Manual page 84

FTP server: If your FTP server is located on the LAN, you can set as Figure a.
If you have an FTP server which you can access on the internet, you can set as Figure b.
Port: Default is port 21. If changed, external FTP client program must change the server connection port
accordingly.
Mode: Here supports two modes: PORT and PASV.
Username / password: The FTP account and password.
Click Save to take effect.
Click Test to see if FTP has been successfully configured.

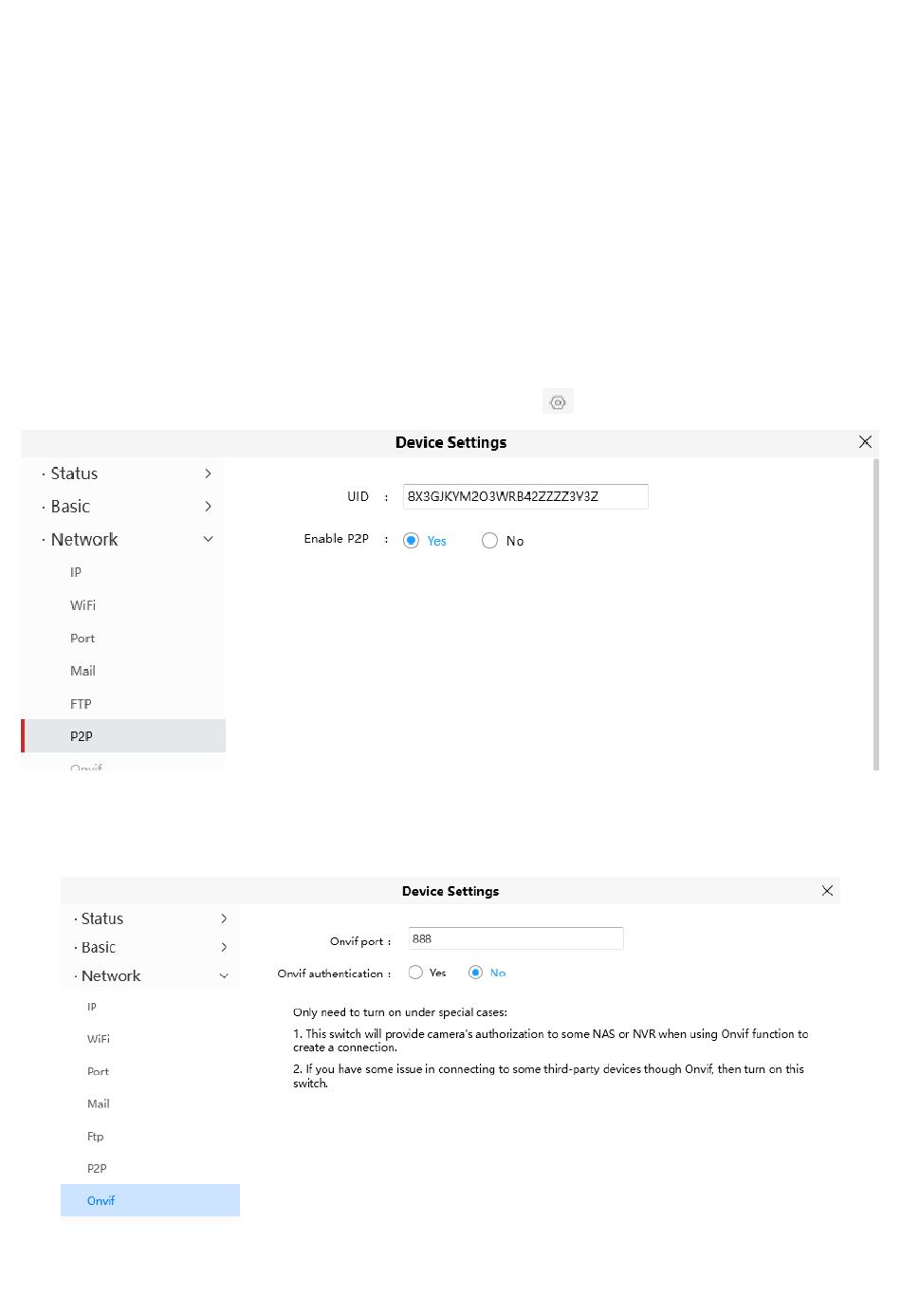

4.6.3.6 P2P
Access the camera by smart phone (Android or iOS operating system)
First of all, you need to open the P2P function of the camera at > Network > P2P.
4.6.3.7 Onvif
By default, the ONVIF port is set to 888. Also, they can be assigned with another port number
between 1 and 65535 (except 0 and 65534). But make sure they can not be conflict with other existing ports.
82
